Fig. 1
From: Preservation of bronchial artery circulation on ex-vivo lung perfusion

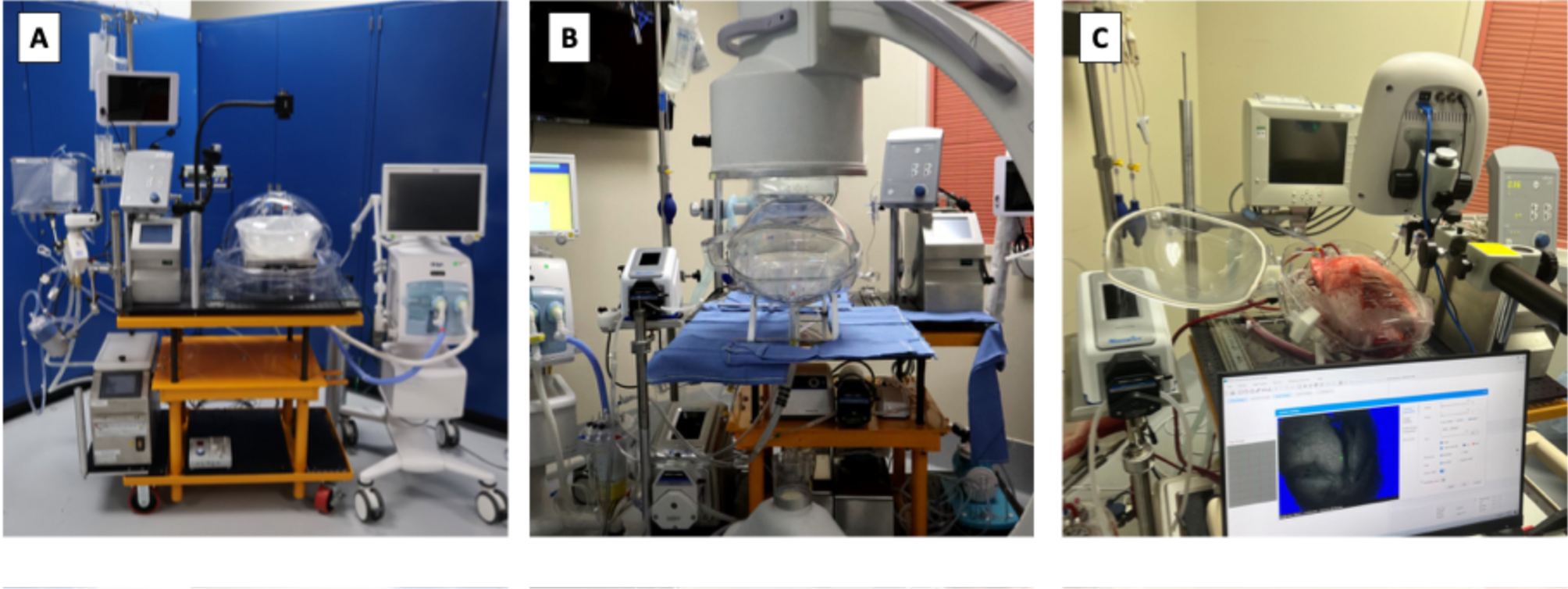

Ex-Vivo Lung Perfusion Set-Up and Capabilities. (A) Ex-Vivo Lung Perfusion (EVLP) constructed with the capability for multiple pumps, carbon-dioxide saturation for challenge gas acquisition, built in mount for camera, bronchoscopy mount and pressure/flow monitoring on all lines. Utilizes an open drainage system. Lung mount is mobile magnetic resonance imaging compatible. (B) Demonstration of fluoroscopy incorporation, utilizing the mobile lung mount to obtain impeded images from all angles. (C) Set-up incorporating laser speckle contrast imaging platform to obtain real-time perfusion imaging.
