Introduction

Fossil skeletons originally composed of metastable calcium carbonate (CaCO₃) polymorphs, such as vaterite, high-magnesium calcite, or aragonite, are considered exceptionally well-preserved if their original mineralogy is preserved. A prominent example is the skeletons of scleractinian corals whose aragonitic coralla, often recovered from impermeable clay deposits, are present in the fossil record across at least 240 My of geological time1. These pristine specimens serve as valuable archives of trace element and isotopic compositions that can be interpreted for reconstruction of past seawater chemistry and temperatures2,3. In such exceptionally well-preserved coral skeletons, the two primary microstructural components can usually still be distinguished, i.e., rapid accretion deposits (RADs; aka ‘centers of calcification’), which typically make up around 3–5% of the skeletal volume, and thickening deposits (TDs; aka ‘fibers’) that constitute the bulk of the skeleton4. Due to their compact crystalline structure, TDs are traditionally considered less susceptible to diagenesis, whereas RADs, characterized by a microcrystalline structure and higher enrichment in organic components, are considered more vulnerable to such alteration4,5. However, this perception has been challenged by studies revealing higher structural complexity than previously assumed, with distinct coral groups displaying fundamentally different TD organization6,7. These findings suggest that TDs in different coral species may vary in their susceptibility to diagenesis. Furthermore, recent experiments, in which both fossil and modern calcitic tests of benthic foraminifera underwent extensive oxygen isotope exchange with pore water analogues, without modification of structural features8,9,10,11, hint at a potential hard-to-detect bias in paleoenvironmental reconstructions. This susceptibility to alteration is thought to stem from the nanocomposite structure of the foraminifera tests, which in fact is a key feature of almost all marine biogenic carbonates, scleractinian corals included. This structure, which is likely to be the result of non-classical crystallization processes involving an amorphous calcium carbonate precursor and a range of organic compounds12,13,14,15permits rapid fluid penetration and provides reactive surface areas orders of magnitude greater than those of abiotic minerals9,10,11. Consequently, this study addresses two fundamental questions regarding the use of coral skeletons in paleoenvironmental research: Can substantial oxygen isotope exchange be experimentally induced in coral skeletons exposed to seawater analogues without a phase transformation from aragonite to calcite? If yes, do different TD microstructural patterns influence this isotopic exchange? To answer these questions, we performed diagenetic experiments using four microstructurally distinct skeletons of modern scleractinian corals (Fig. 1A-D).

Materials and methods

Scleractinian coral taxa selected for this study (all housed at the Institute of Paleobiology, Polish Academy of Sciences, Warsaw (ZPAL) represent phylogenetically distinct groups: solitary Desmophyllum dianthus represents robust clade family Caryophylliidae [ZPAL H.25/5], colonial Acropora hyacinthus represents complex clade family Acroporiidae [ZPAL H.25/195(536 A)], colonial Stylophora pistillata represents robust clade family Pocilloporidae [ZPAL H.25/219(636)], whereas solitary Letepsammia formosissima represents basal clade family Micrabaciidae [ZPAL H.25/8]6,16,17,18. For simplicity, only the generic names (i.e., Desmophyllum, Acropora, Stylophora, and Letepsammia) were used in the main text of the paper, with each reference pertaining to the species described above. Small skeletal fragments (approximately 5 mm in length, taken from septa) were broken into smaller pieces such that they could fit into gold capsules measuring 5 mm in diameter, to which seawater analogue was added and the gold capsule subsequently sealed by welding. Samples intended for NanoSIMS imaging were incubated for 7 days at 50 °C in the 18O-enriched seawater analogue with an 18O/16O ratio of 0.30 (i.e., highly enriched in 18O) and saturated with respect to aragonite. For bulk measurements, the samples were exposed for 7 days at 50 °C to 18O-enriched seawater analogue with an 18O enrichment of δ18OVSMOW = 1000‰, i.e., the experimental conditions were slightly modified compared with those established for similar work on calcitic foraminifera tests9,10.

Subsequent analytical work included scanning electron microscopy (SEM) observations of the skeletal fragments before (control) and after incubation, extensive Raman spectroscopy and mapping to determine the carbonate polymorph, measurements of oxygen isotope composition using a Finnigan Delta V Advantage mass spectrometer coupled to a GasBench II, and NanoSIMS imaging to examine the resulting distribution of 18O-enrichment.

Details of isotopic exchange experiments, Raman analyses, bulk and NanoSIMS isotope analyses, and structural SEM observations are provided in the Supplementary Information.

Fig. 1
Fig. 1
Full size image

Four scleractinian corals with fundamentally different skeletal architectures subjected to isotopic exchange experiments. (A–D), Macromorphology (optical photography), (E–H, skeletal surface textures (SEM), and (I–L), corresponding microstructural organization of skeleton in transverse sections (optical microscopy, polarized light): TDs in Desmophyllum (I) consists of crystallographically well-aligned bundles of fibers (arrow) oriented perpendicular to the skeleton surface; in Acropora (J) elongated packages of TDs bundles are semi-parallel to skeleton surface; in Stylophora (K) fibers show patchy colors due to quasi-aligned distribution of fibers (wavy arrow); in Letepsammia (L) chaotically arranged fiber bundles cause poor light extinction within the groups of fibers (arrows).

Results and discussion

Our experiment aimed to test the hypothesis that surface texture (Fig. 1E–H), which reflects the underlying skeletal microstructure (Fig. 1I–L), is a key factor influencing water penetration and the isotopic exchange of oxygen (and other elements). For example, the skeleton of Desmophyllum has a relatively smooth surface that reflects an internal arrangement of crystallographically well-aligned bundles of fibers perpendicular to the skeleton surface (Fig. 1E, I). In contrast, the surface texture of Acropora skeletons is a shingle-like pattern (Fig. 1F), created by elongated packages of TDs bundles of fibers that make up the bulk of the skeleton (Fig. 1J). The skeletal surface texture of Stylophora consists of small tubercles (Fig. 1G). Cross-sections reveal that bundles of TDs fibers exhibit a quasi-aligned distribution (seen as patchy colors),  although their overall orientation is perpendicular to the skeletal surface (Fig. 1K). The skeleton of Letepsammia is relatively smooth, composed of small, randomly oriented fiber bundles (Fig. 1H). Cross-sections also reveal randomly arranged fiber bundles (Fig. 1L).

Fig. 2
Fig. 2
Full size image

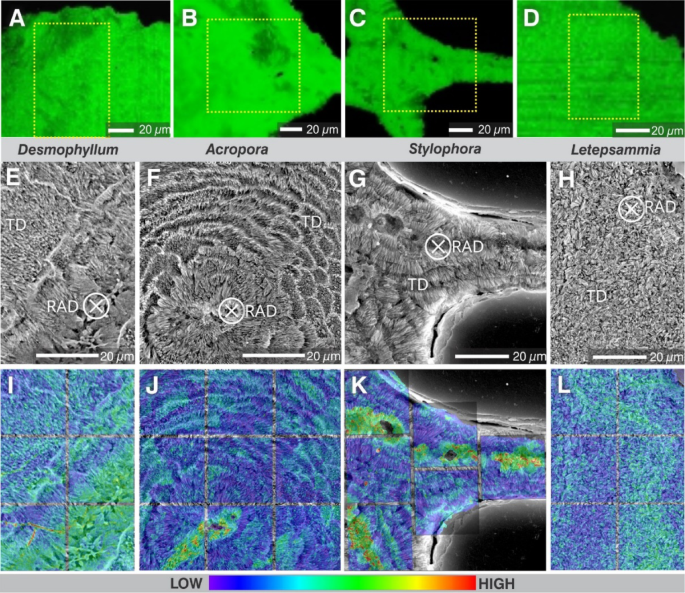

Coral skeletons subjected to isotopic exchange experiments after exposure to artificial seawater analogue (ASW) with a 18O/16O ratio of 0.30. (A–D), Raman maps showing aragonite as the only calcium carbonate phase detected in all experimentally treated samples (and in all controls). (E–L), Microstructural organization (RADs and TDs) of sectioned coral skeletons (E–H) with overlaid NanoSIMS maps (M–P) that show the relative oxygen isotope enrichments after exposure to ASW with an 18O/16O ratio of 0.30.

The skeletons were immersed for 7 days at 50 °C in artificial seawater analogue enriched in 18O (with an 18O/16O ratio of 0.30) and chemically in equilibrium with aragonite. After incubation experiments, all skeletal samples exhibited exclusively aragonitic mineralogy (Fig. 2A-D, Supplementary Fig. 1), i.e., no sign of aragonite-to-calcite transformation and no discernable differences in surface texture or skeletal microstructure compared to unaltered specimens (Fig. 1E-H). However, NanoSIMS mapping revealed that the 18O-enriched seawater analogue had penetrated and isotopically exchanged with the skeletons from all four species included in the study (Fig. 2I-L, Supplementary Fig. 2A-D). As expected, clear 18O-enrichments were observed in RAD regions (Supplementary Fig. 3A-D), which are generally considered most susceptible to diagenesis due to their nanogranular texture and high content of organic material (Supplementary Fig. 2E-H) . 18O-enrichment was also clearly observed in the TDs, particularly prominent within the fiber bundles in Desmophyllum (Supplementary Fig. 3E) and the shingles in Acropora (Supplementary Fig. 3F), with slightly lower enrichment and less distinct distribution pattern in Stylophora (Supplementary Fig. 3G) and, finally, a more diffusely distributed 18O-enrichment in the TDs of Letepsammia (Supplementary Fig. 3H). These 18O-enrichment distributions directly reflect the architecture of the TDs. Locally, the 18O-enriched areas, as revealed by NanoSIMS mapping, showed the following maximum values 18O enrichment expressed in arts-per-thousand relative to the measured 18O/16O ratio of a pristine skeletal fragment from each species): in Desmophyllum RADs were enriched by up to 3900‰ and TDs up to 2200‰; in Acropora the RADs exhibited enrichment up to 4000‰, whereas the shingle-like TDs showed enrichment up to 1500‰; in Stylophora, RADs were enriched by up to 5500‰ whereas TDs showed enrichment ranging from 1200‰-1500‰; in Letepsammia the 18O-enrichment was more homogeneously distributed, with maximum values between 1100‰ and 1800‰. This is consistent with bulk skeleton oxygen isotope measurements that, after incubation in seawater analogue in chemical equilibrium with aragonite and with δ18OVSMOW = 1000‰, exhibited 18O-enrichments relative to pristine fragments of the coral of 3.23‰ in Desmophyllum, 3.06‰ in Acropora, 1.81‰ in Stylophora and 1.67‰ in Letepsammia (Table 1).

Table 1 Bulk isotope δO18 measurements of original (pristine) and altered aragonite scleractinian coral samples. The samples were exposed for 7 days at 50 °C to 18O-enriched (δ18OVSMOW = 1000‰) artificial seawater analogue saturated with respect to aragonite.
Full size table

These experiments and the NanoSIMS isotope imaging clearly suggest that the microstructural organization of a coral skeleton is the primary feature guiding secondary modification of the oxygen isotope composition through exchange with pore water. The fine-scale organization of aragonitic biocrystals results from a precisely orchestrated and spatially delineated biomineralization process that consistently produces similar microstructures across distinct scleractinian coral clades6,7,16,18. The bulk of these skeletons have a microstructural architecture consisting of a three-dimensional organization of TDs fiber bundles with a corresponding distribution of organic components between/within these fibers. Consistent with observations in foraminiferal tests8,9,10,11in all the examined coral skeletons, regions enriched in organic matter act as ‘highways’ for water penetration and isotopic exchange. It can therefore be inferred that, when skeletons of different fossil coral species are exposed to pore water, isotope exchange will be heterogeneous and reflect these microstructures. This creates a range of susceptibility to oxygen isotope exchange with pore water that could mimic and hence be interpreted as part of the otherwise well documented ‘vital effect’, as samples of different coral species from the same location may (and do) exhibit differences in isotopic composition. However, bulk oxygen isotope signatures of fossil skeletons from the same location could in part result from different levels of isotope exchange influenced by the species-dependent microstructural organization of the skeleton, with less ultrastructural complexity (Letepsammia, Stylophora) conferring less susceptibility to O-isotope exchange than higher ultrastructural complexity (Desmophyllum and Acropora). This finding consequently introduces skeletal ultrastructure as a criterium when searching for and utilizing fossil aragonitic coral skeletons for paleoenvironmental reconstructions.

Concluding remarks

A key objective of this study was to investigate if the composite organic-mineral architecture and complex nano- to microscale organization of coral skeletons result in different rates of isotopic exchange without phase transformation from aragonite to calcite. With experiments using moderately elevated temperatures and 18O-enriched pore waters we could visualize patterns of isotopic modification correlated with the ultrastructural diversity of modern scleractinian coral skeletons. The fact that such isotope exchange can take place without changes to the original mineralogy (i.e., no aragonite to calcite transformation) challenges the widespread assumption that preservation of aragonitic mineralogy and original skeletal microstructures in fossil coral skeletons ensures retention of their original geochemical signatures, with direct implications for the interpretation of isotopic records in paleoclimate reconstructions based on fossil corals.

The risk of significant bias in isotopic records from aragonitic fossils is generally considered low because, when aragonitic skeletons are exposed to pore waters capable of altering their isotopic composition, recrystallization of the metastable coral aragonite to calcite commonly occurs. However, instances are known of fossil coral skeletons (Late Jurassic) preserved in porous rock exposures thus subjected to penetrating meteoric and groundwater. These fossils have retained their original aragonitic mineralogy (probably stabilized by high concentrations of iron ions in the pore waters). Their oxygen isotope compositions19 are inconsistent with their colonial skeletal macro-morphologies that are typical of symbiotic taxa. We propose that the oxygen isotope compositions of such fossil coral skeletons might be heavily influenced by secondary isotopic exchange process through the mechanism identified in this study.
