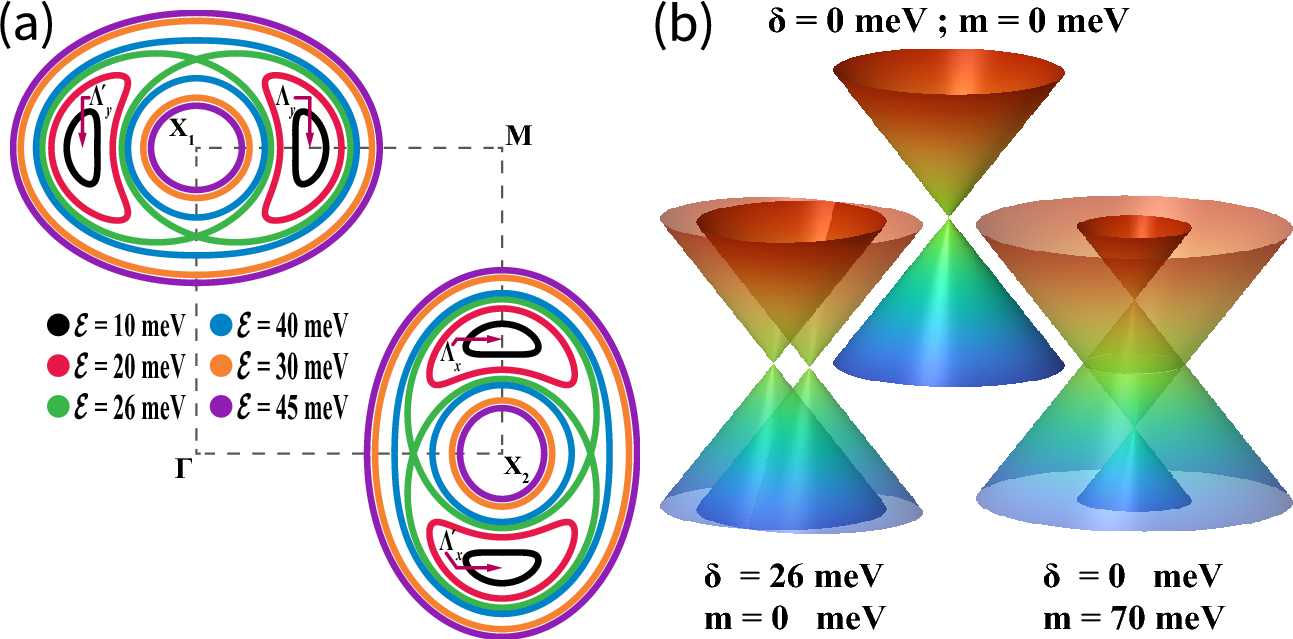

Fig. 11

(a) Contour plot of energy dispersions of SnTe (001) centered at \(X_1\) and \(X_2\) points, elucidating the role of symmetry. (b) 3D dispersion energy of SnTe (001) for the three different scenarios, illustrating the effects of the off-diagonal term on the band structure.
