From: Machine learning for experimental design of ultrafast electron diffraction

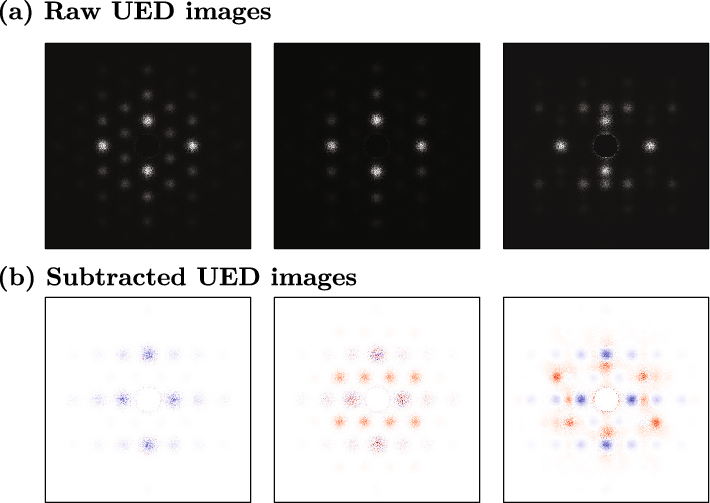

Training data samples: (a) raw UED image samples of 2H and 1T \({\textrm{MoTe}_{2}}\) crystals, (b) UED images after subtraction of reference image of \({\textrm{MoTe}_{2}}\) 2H crystal. Red (blue) regions indicate positive (negative) deviations from the reference 2H UED image.
