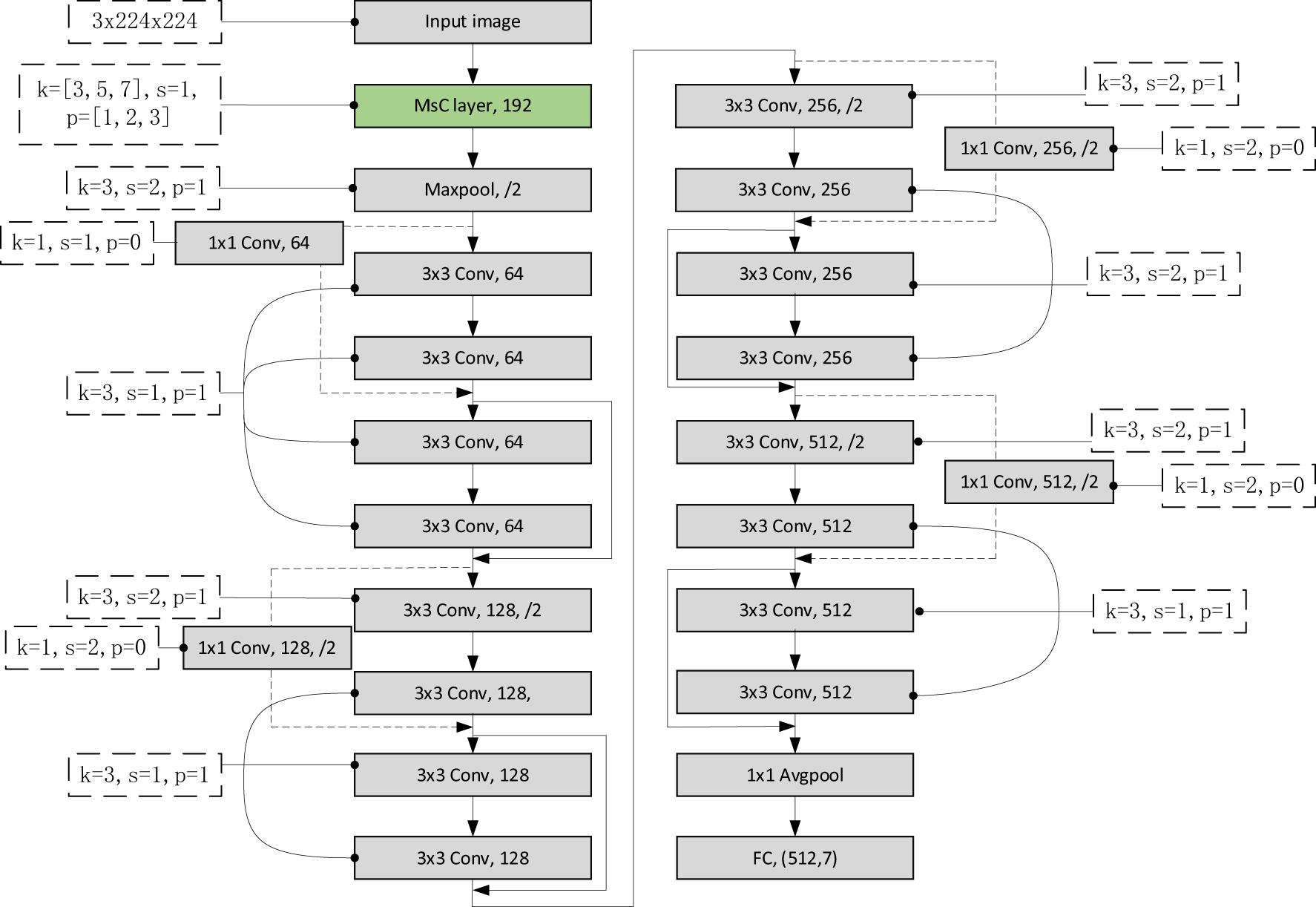

Fig. 4
From: Multiscale wavelet attention convolutional network for facial expression recognition
The structure of MsC-ResNet18, including each layer of MsC ResNet18 and the residual connection.
Fig. 4 | Scientific Reports
From: Multiscale wavelet attention convolutional network for facial expression recognition
The structure of MsC-ResNet18, including each layer of MsC ResNet18 and the residual connection.
