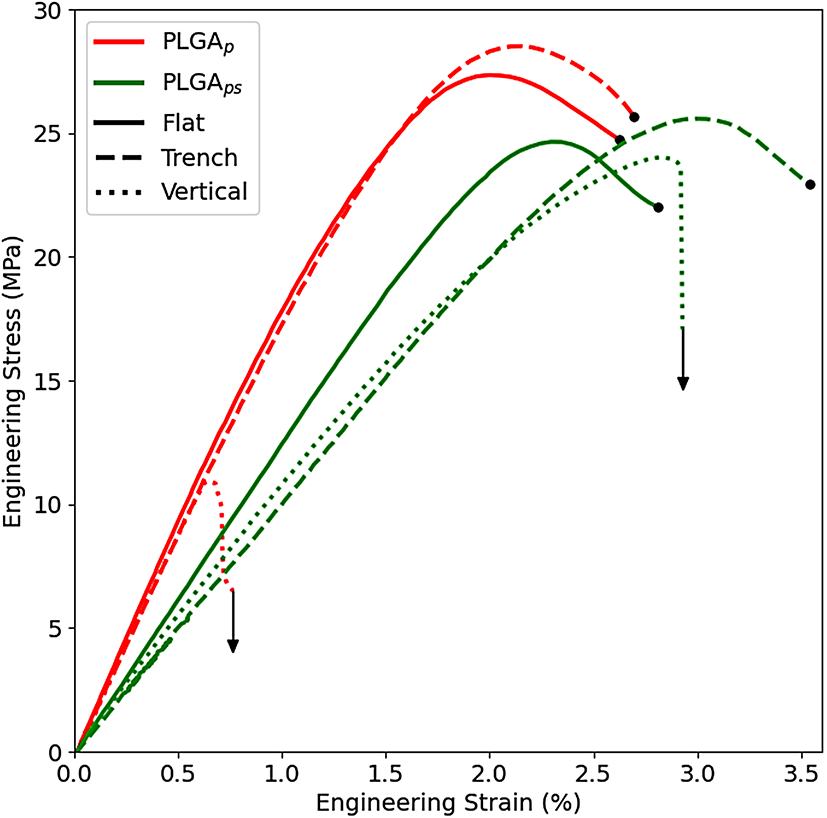

Fig. 6
Representative tensile test curves of PLGA with standardized specimens, before and after sterilization, according to orientation. The black dots indicate tests stopped after reaching maximum stress, while the arrows indicate tests stopped after rupture.
