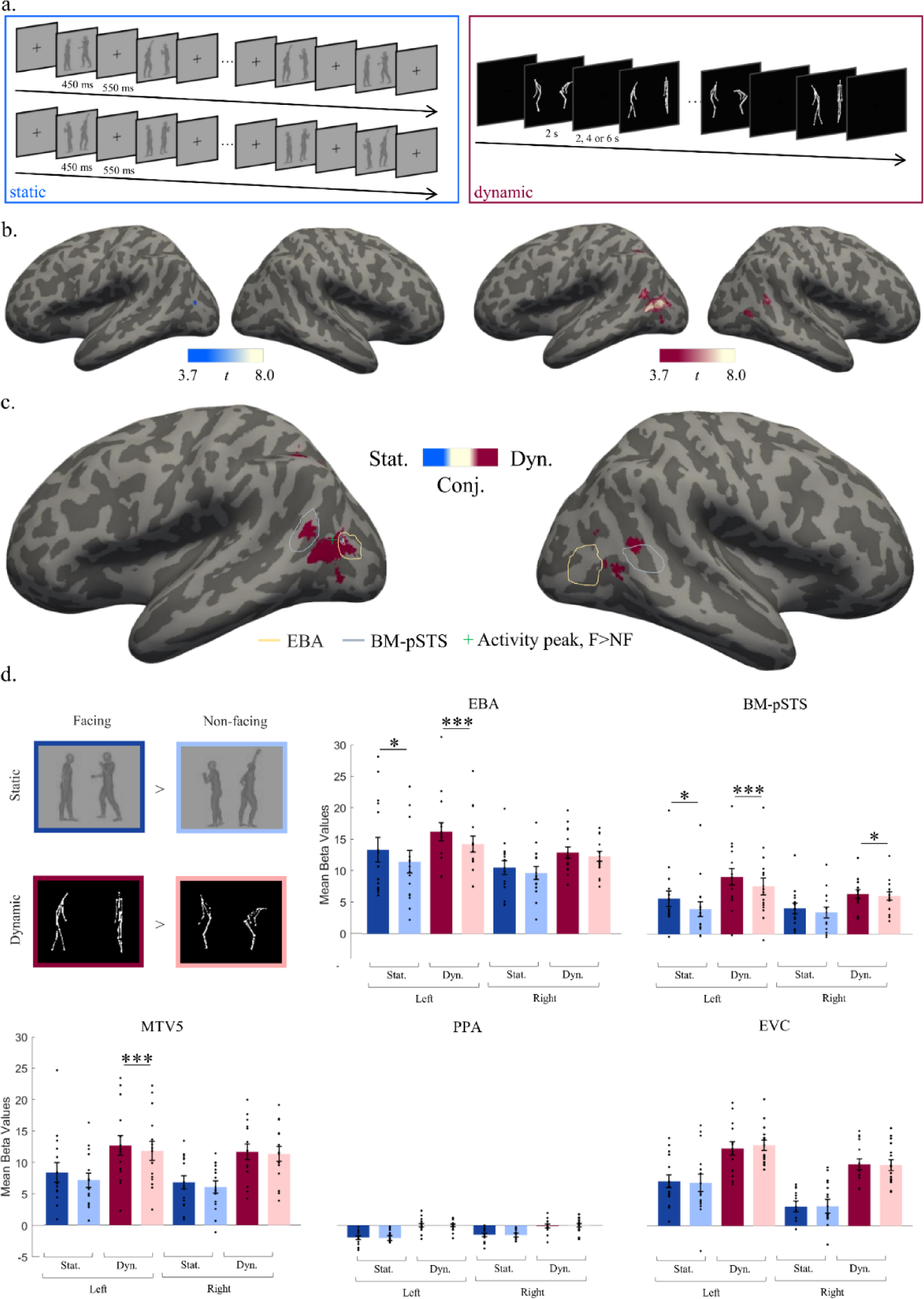

Fig. 1
From: The effects of spatial relations and motion information in social scene perception
(a) fMRI design for the sessions with static (blue) and the dynamic (red) stimuli. Lines connecting dots in point-light displays were added for visualization purposes only; (b) Results of the whole brain contrast facing > non-facing for static (left) and dynamic (right) stimuli; p = 0.001, FDR-corrected; (c) Results of the conjunction analysis of group-level maps for the contrast facing > non-facing for static (blue) and dynamic (red) stimuli; p = 0.001, FDR-corrected. The conjunction is highlighted in beige. The functionally-defined group-level EBA is highlighted in yellow. The functionally-defined group-level BM-pSTS is highlighted in blue. Activity peak is plotted with a green cross; (d) Region of interest (ROI) analysis in EBA, BM-pSTS, MTV5, PPA and EVC. Error bars denote the within-subjects normalized SEM. ∗p ≤ 0.05; ∗∗p ≤ 0.01; ∗∗∗p ≤ 0.001. Black dots represent each single subject’s mean activity across the ROI. Bars represent mean beta values for facing and non-facing activity across all subjects. Only significance of the configuration effect is plotted. Details of other main effects and interaction can be found in the results section.
