Fig. 3 | Scientific Reports

Fig. 3

From: Ceftriaxone suppresses the severity of paclitaxel-induced glutamate-mediated chronic pain in experimental animals

Fig. 3

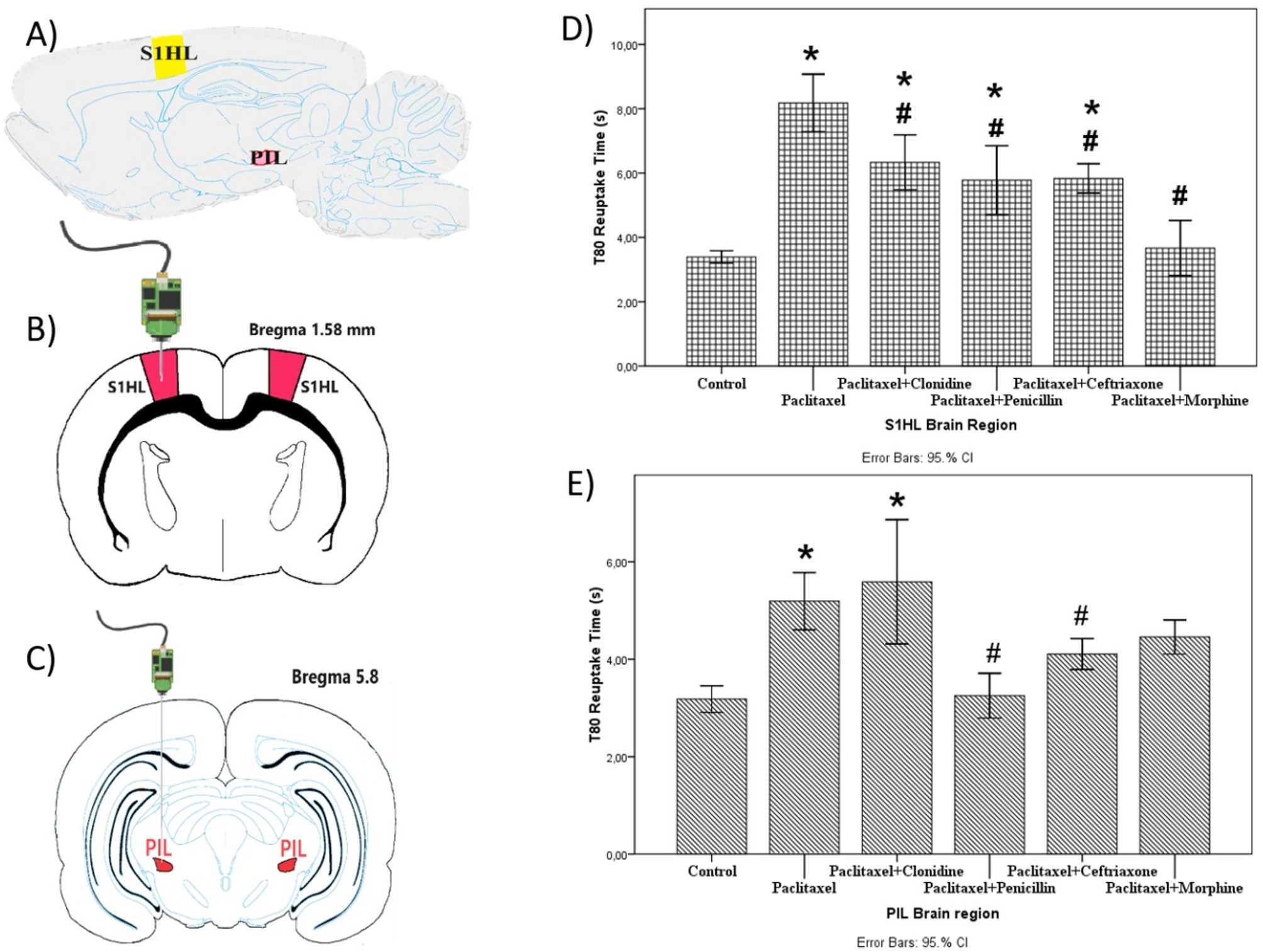

Reuptake times of brain regions (T80). (A) Sagittal section of the rat S1HL and PIL brain regions. (B) Schematic of the coronal section of the S1HL region, while (C) represents the PIL region. (D) and (E) depict the glutamate reuptake times (T80) obtained from in vivo voltammetry analyses of the S1HL and PIL brain regions. The uptake times are presented as the means ± standard deviations. To evaluate the results, one-way ANOVA with Tukey’s test was used, and p < 0.05 was considered to indicate statistical significance. (*) The results for the control group are provided, while (#) the results for the paclitaxel group are shown.
