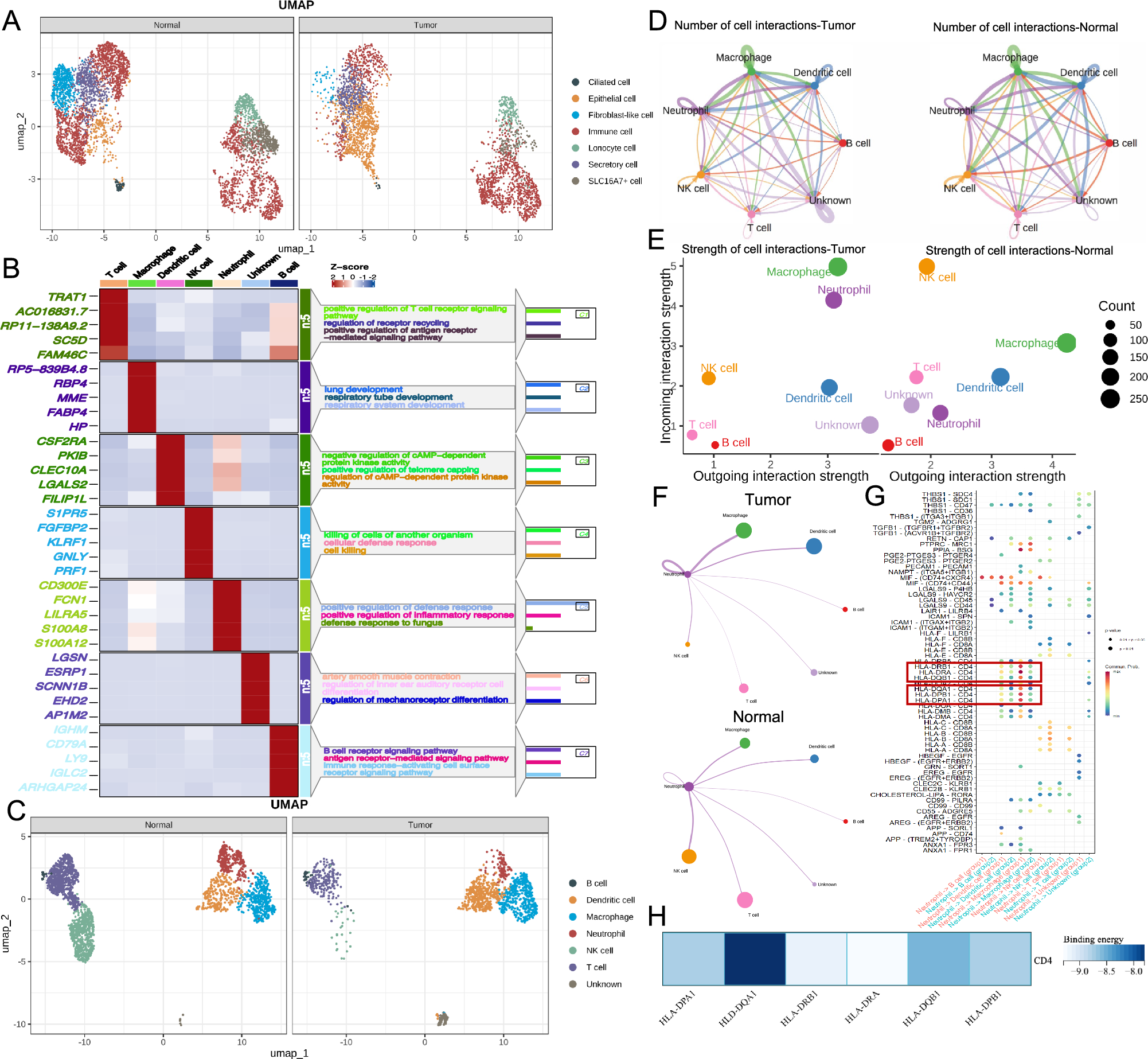

Fig. 4

Results of single-cell RNA-seq analysis. (A) Differences in the distribution of different cell types between LUAD and normal; (B) Heatmap showing the top 5 DEGs in each immune cell type; (C) The difference of immune cells distribution between LUAD and normal people; (D) The number of immune cell communication in LUAD and normal; (E) The strength of immune cell communication in LUAD and normal; (F) Communication between neutrophils and other immune cells in LUAD and normal; (G) Communication between neutrophils and macrophages was significantly enhanced in LUAD; (H) Molecular docking revealed good binding energy between ligands on neutrophils and receptors on macrophages.
