From: Spinal nociceptive and non-nociceptive processing of cutaneous afferent input in people with chronic incomplete spinal cord injury

Fig. 6

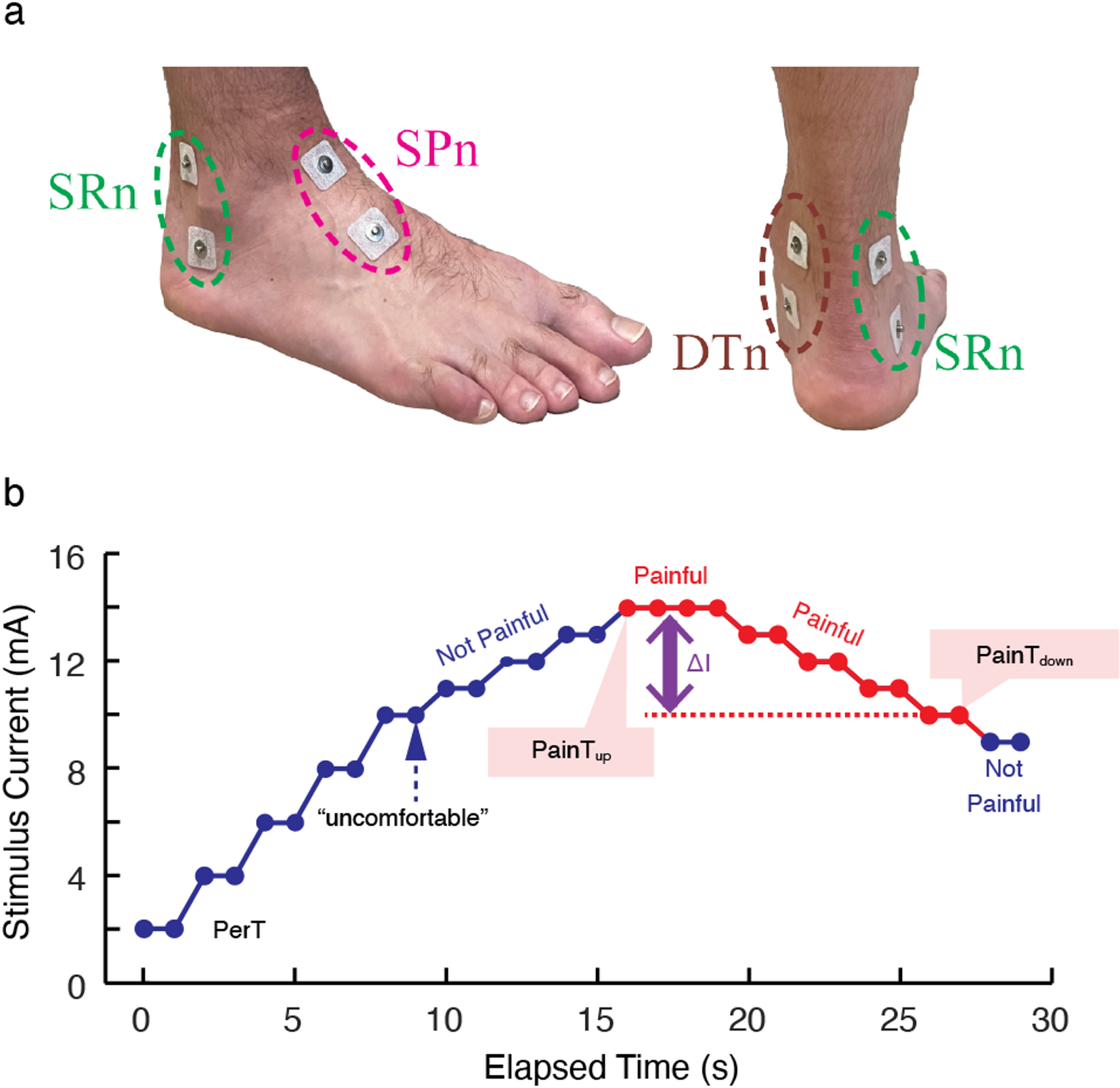

Experimental setup. a: Locations of cutaneous nerve stimulating electrodes; the nerve stimulated are the superficial peroneal nerve (SPn), sural nerve (SRn), and the distal tibial nerve (DTn). b: An example of stimulus current control during pain threshold detection with 1 s inter stimulus train interval (ITI). Each dot indicates delivery of a stimulus train. PainTup: stimulus current at which the stimulation became first painful. PainTdown: the last stimulus current at which the stimulation was painful. See text for detailed descriptions.
