Fig. 15

From: Advanced workflow for time-lapse seismic monitoring of \(\hbox {CO}_2\) storage in saline aquifers with its application in a field basin

Fig. 15

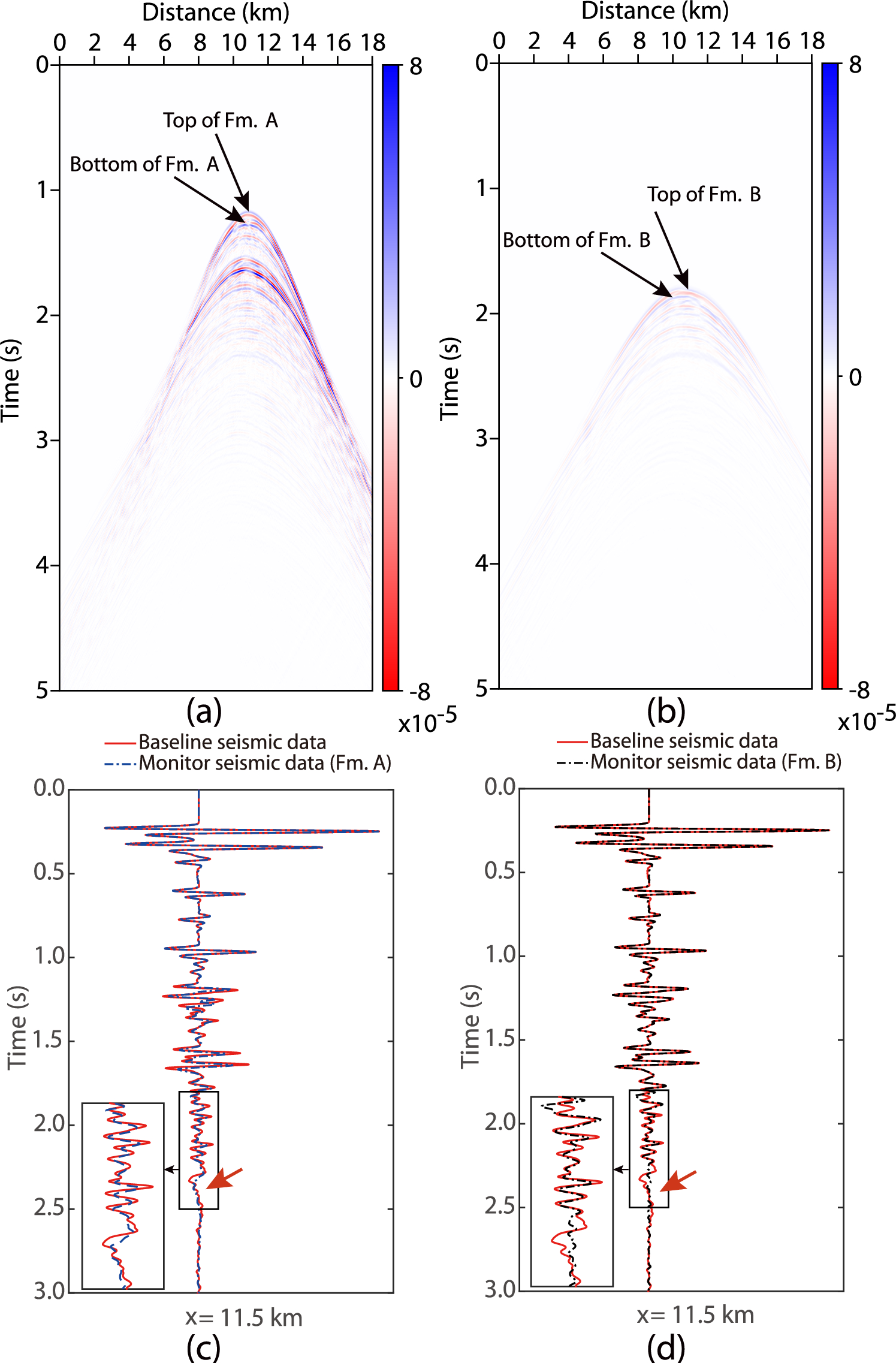

Comparison between baseline data and monitor data Fm. A and Fm. B 100 years after the cessation of \(\hbox {CO}_2\) injection. (a) Fm. A and (b) Fm. B differences between baseline and monitor data. (c) Fm. A and (d) Fm. B trace comparison between baseline and monitor data. The baseline data represents the state without \(\hbox {CO}_2\) injection (Fig. 14(a), while the monitor data is shown in Fig. 14(b) and Fig. 14(c), respectively. The trace is extracted from the same location at a distance of \(x=11.5\) km in the baseline data, as well as the 100-year monitoring data for Fm. A and Fm. B. The black box represents the attenuation changes occurring in the 100 years after the cessation of \(\hbox {CO}_2\) injection.
