From: Strong seismic reflections indicating possible eruptible magma beneath the Tatun Volcano Group in Taiwan

Fig. 6

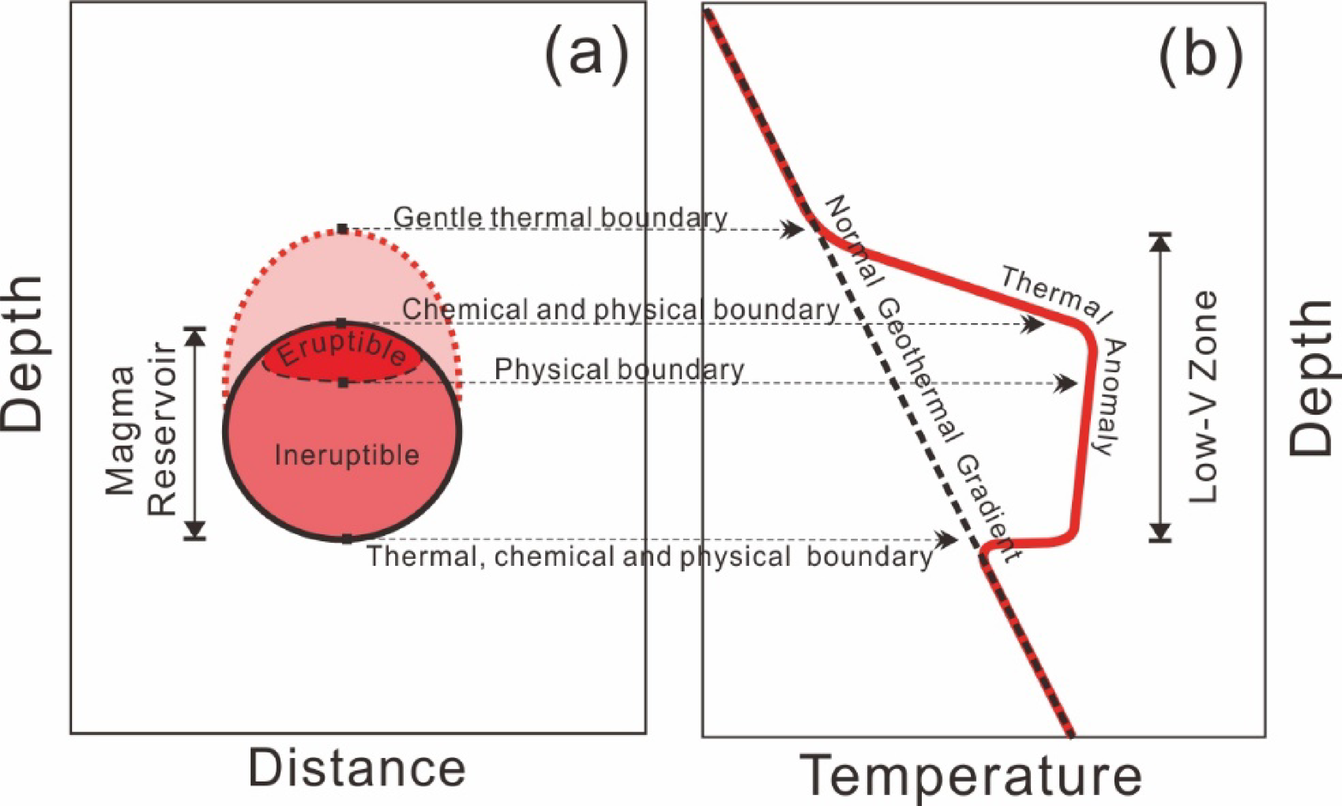

Schematic representation of idealized chemical, physical, and thermal boundaries in and around the magma reservoir. (a) The low-velocity zone within and surrounding the magma reservoir is divided into eruptible and non-eruptible portions, overlaid by the heated crust. (b) Thermal anomalies represented by a low-velocity seismic zone in and around the magma reservoir.
