From: Multiomics profiling reveals the involvement of protein lactylation in nonhomologous end joining pathway conferring radioresistance in lung adenocarcinoma cell

Fig. 4

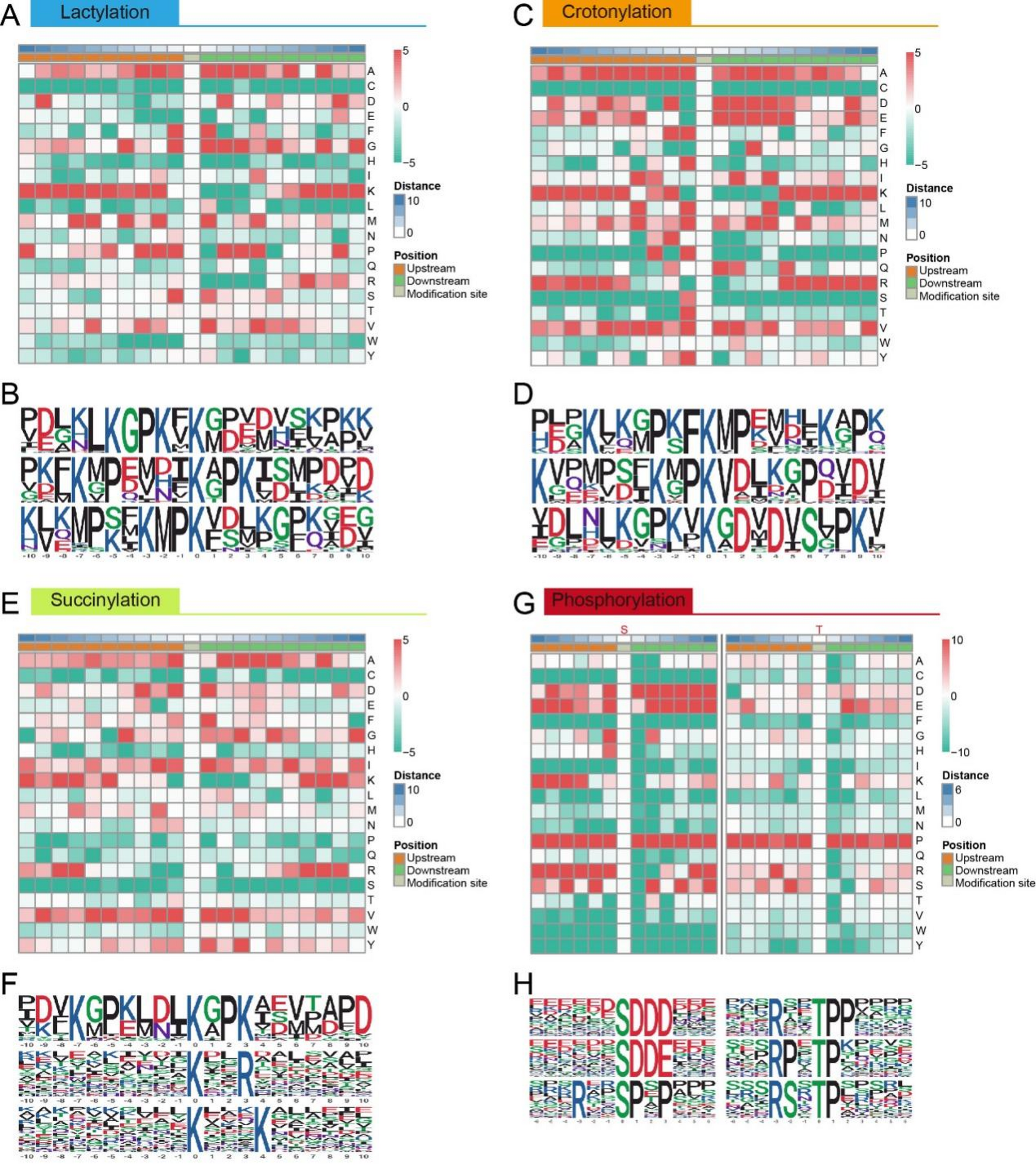

Identification of Kla, Kcr, Ksu and Phosphorylation proteins in A549 cells. (A) Motif analysis of lactylated sites. (B) The three types of conserved motif sites around Kla peptides. (C) Motif analysis of crotonylated sites. (D) The three types of conserved motif sites around Kcr peptides. (E) Motif analysis of succinylated sites. (F) The three types of conserved motif sites around Ksu peptides. (G) Motif analysis of Phosphorylated sites. (H) The three types of conserved motif sites around phosphorylation peptides.
