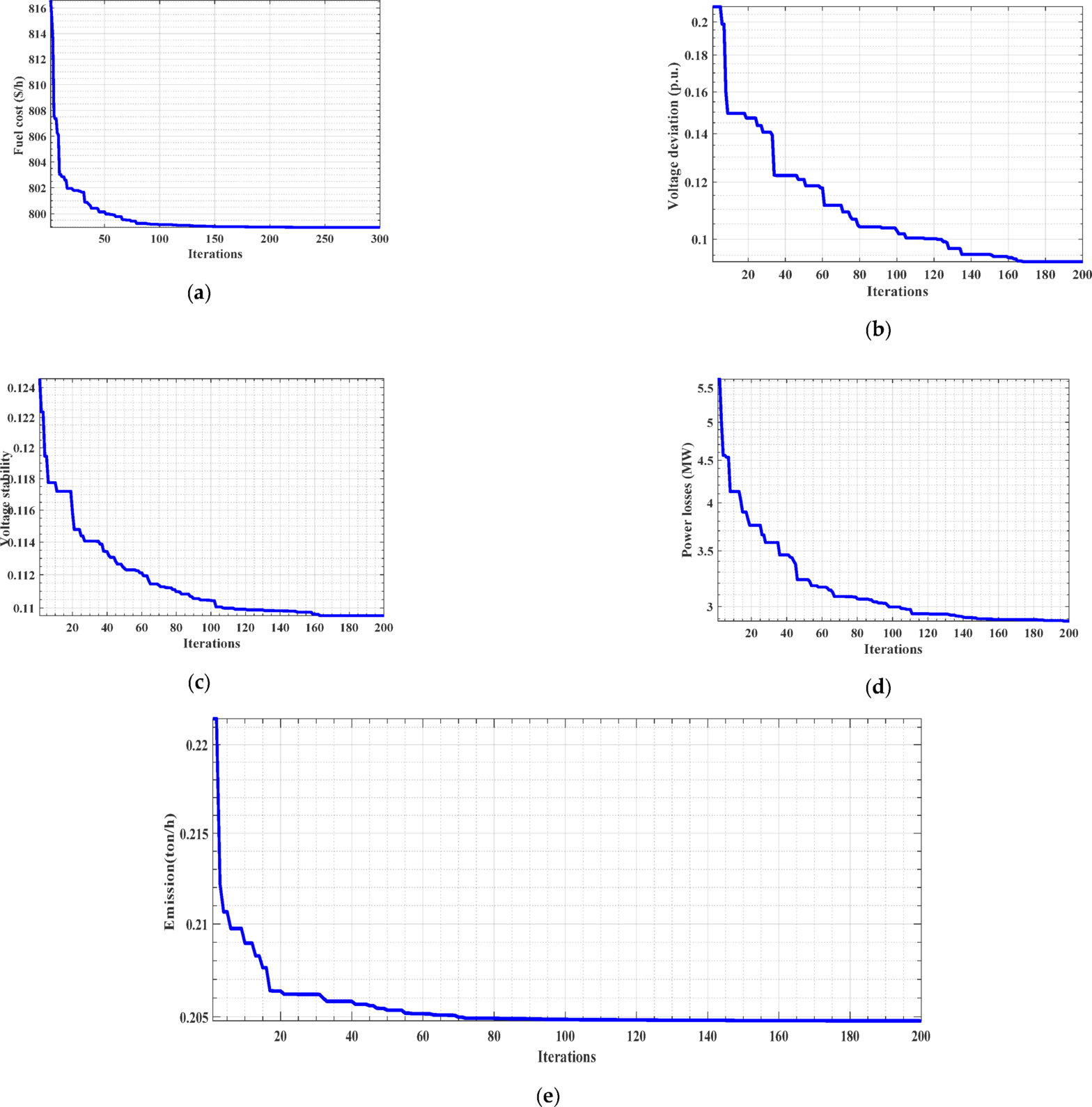

Fig. 2

The convergence curves for the single objective cases (Cases 1–5). (a) fuel cost (Case 1), (b) voltage deviation (Case 2), (c) Voltage stability (Case 3), (d) Power losses (Case 4), (e) Emission minimization (Case 5).
