Fig. 2

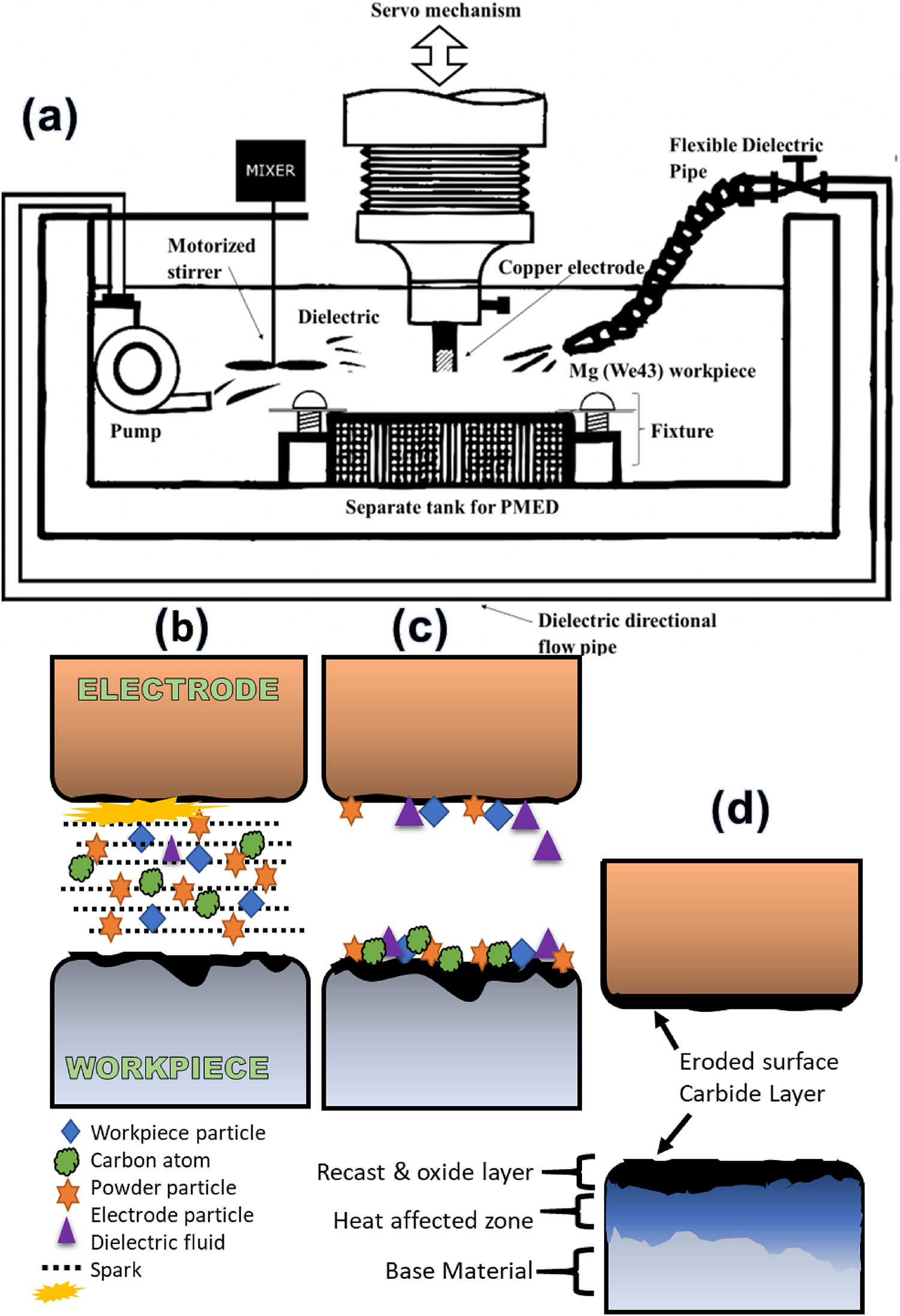

(a) Schematic diagram of PMEDM setup showing pump and motorized stirrer (b) Spark initiation between tool and workpiece and showing various powders in the spark site (c) Powder particles deposition on workpiece (d) Formation of recast layer, heat affected zone and base material.
