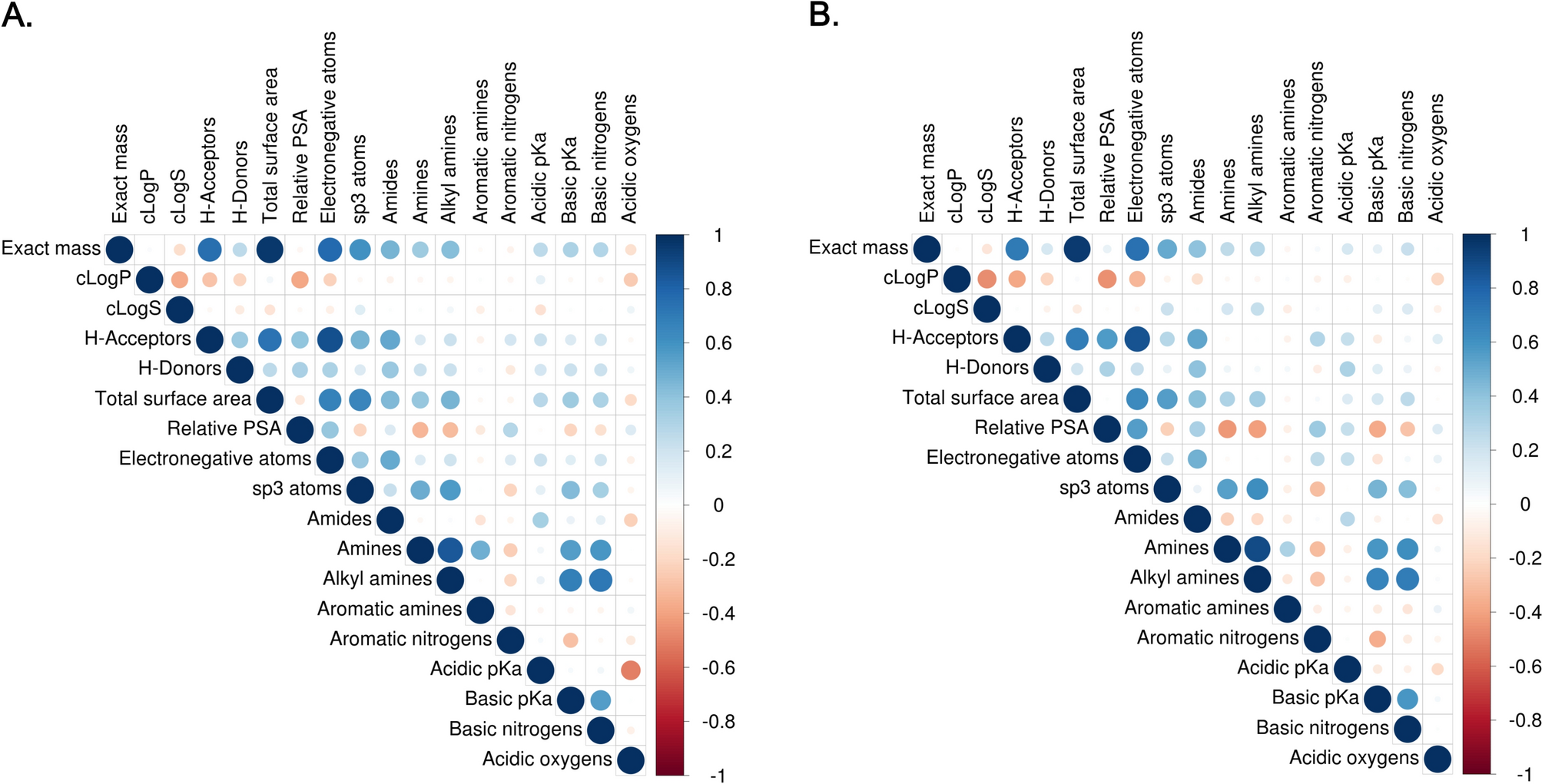

Correlation of 18 physicochemical properties. Property correlations of all compounds experimentally classified as either bacterial retention positive (RP, A) or retention negative (RN, B). Pearson correlation between individual physicochemical property descriptors: increasing Pearson correlation with increasing marker size and intensity. Blue shades indicate a positive correlation; red shades indicate a negative correlation.
