Fig. 7
From: Structural health monitoring and evaluation method for an immersed tunnel based on deep learning

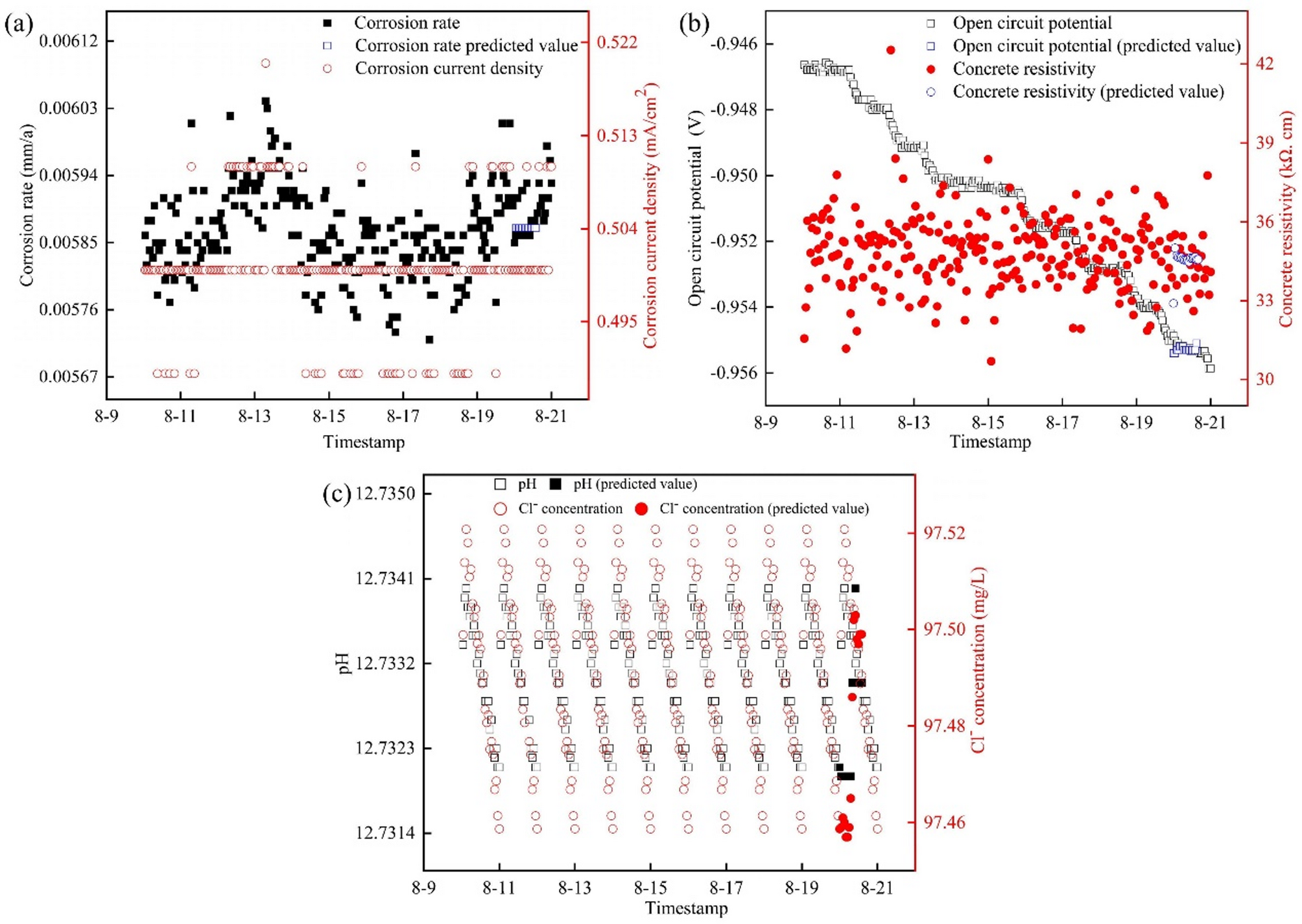

LSTM prediction results of steel corrosion time series (a) Corrosion rate and Corrosion current density (b) Open circuit potential and Concrete resistivity (c) pH and Cl− concentration.
