Introduction

To achieve clean energy via green technology based on organic molecules, the organic photovoltaics (OPV) are prominent class. They offer promising features such as low-cost, light-weight, non-toxic, large-area and flexible devices in contrast to their inorganic counterparts1,2,3. Further, the organic π-conjugated molecular systems are consistent in their symmetrical and intramolecular charge transfer (ICT) properties4. The basic functioning of an organic solar cell (OSC) consists of the absorption of a photon by an active material (usually donor); generation and diffusion of an exciton in donor; dissociation of exciton at the donor-acceptor interface which lead to formation of holes and electrons. Finally, the holes and electrons migrate towards the specific electrodes and their efficiency is greatly influenced by the insertion of different acceptor functionalities in an organic molecular structure5.

Depending on the combination of specific donor and acceptor species, several types of OSCs are known such as the polymer-fullerene, single-junction OSC (single photoactive layer), multicomponent OSC (three or more components constitute a photoactive layer), polymer-small molecule and all-polymer and all-small molecule OSCs6. Currently, the single-junction OSCs are reported with the highest power conversion efficiency (PCE) of over 20% and photostability7. They effectively utilized non-fullerene acceptors (NFAs) and large band gap electron donors due to which they are well-known for being flexible, transparent and light-weight materials8,9.

Pincer ligands were initially introduced in 1976 by Moulton and Shaw10. They have been successfully utilized in the formation of transition metal complexes. Pyridine dipyrrolide is an attractive pincer ligand which has garnered attention of scientists from several years due to its widespread use in the formation of well-defined complexes with early and late transition metals such as with Fe11, Co, Cr12, Zr13, Mo14, Zn15, and Pd16 etc. The free ligand i.e., [pyrr2Py]H2 is monomeric which has a coplanar structure owing to the orientation of incorporated pyrrole and pyridine moieties. The efficiency of this molecule can be enhanced by substituting robust end-capped acceptors in order to boost the photovoltaic and charge transfer properties. Hence, this research is highly based on the further exploration of this ligand.

The molecular engineering at terminal acceptors is an effective method for modulating the photovoltaic characteristics of organic chromophores. Literature indicates that the incorporation of benzothiophene (BT)-based acceptors with electron-withdrawing groups improves charge transfer towards the acceptor regions. This leads to increased short-circuit current (Jsc) and open-circuit voltage (Voc) in the non-fullerene acceptors. The enhancement is chiefly attributable to the selective stabilization of the lower-lying LUMO, whereas the HOMO remains largely unaltered. Moreover, the absorption band is markedly expanded, hence contributing to the enhanced device performance17.

At present, density functional theory has proven pivotal in elucidating the electrical and optical characteristics of NFA-OSCs. DFT simulations provide researchers with essential insights into molecular interactions, charge transport dynamics, and the energetics of innovative materials18. This computational approach facilitates the strategic design of high-efficiency non-fullerene acceptors (NFAs) and deepens the comprehension of the complex link between molecular architecture and device performance. Ultimately, these findings facilitate the advancement of next-generation high-performance organic solar cells19,20. In addition to HOMO/LUMO energy gaps, the DFT studies also interpret the non-covalent interactions (NCIs) in various organic molecules21. Researchers have synthesized vast variety of organic compounds accompanied by their DFT exploration, such as peptoids22, chalchones23, pepridone derivatives24, pyrimidines25, co-crystal salts26,27, etc.

Considering the above-mentioned facts, herein, eight new A − π − A compounds (PPH1- PPH8) are designed from the reference (PPHR) which accommodate crystal core of pyridine dipyrrolide flanked with strong end-capped acceptors28. The research findings are presented here regarding their electronic, photophysical and photovoltaic properties via the DFT method which include interpretation of their FMOs, DOS, UV-Visible spectra, TDM, Eb and Voc properties. It is anticipated that the proposed organic chromophores will provide revolutionary outcomes as unique photovoltaic materials.

Methodology

To investigate the quantum chemical properties of the entitled compounds (PPHR and PPH1-PPH8), Gaussian 09 program suite29 at M06 level30 with triple zeta i.e., 6-311G(d, p) basis set31 was utilized. For this purpose, the studied compounds were optimized along with frequency analysis and found with minimum global energy without imaginary frequency. After this, various analyses such as the frontier molecular orbitals (FMOs), UV-Visible absorption, density of states (DOS), transition density matrix (TDM), open-circuit voltage (Voc) and hole-electron were performed by using their optimized structures at the afore-mentioned functional. The exciton binding energy (Eb) was calculated using the FMOs and UV-Vis findings. The various software programs were employed for interpretation of data for these analyses which include the Avogadro32, Origin 8.033, GaussSum34, Multiwfn 3.735, PyMOlyze36, and Chemcraft37. All the output files were visualized using the GaussView 6.038 software.

Results and discussion

In this study, [pyrr2Py]H2 donor free ligand is chosen as the parent compound, which contains a pyridine dipyrrolide core. In order to avoid steric hindrance and computational cost, the upper toluene groups (− C6H5CH3) are substituted with long alkyl chain groups (− C5H11) as represented in Fig. S1. After this structural modulation, the [pyrr2Py]H2 is renamed as PHHR having A − π − A configuration. Further, eight different derivatives (PPH1-PPH8) are designed from the reference (PPHR) based on the pyridine dipyrrolide core and terminated with different strong benzothiophene based acceptors (A1-A8) which are displayed in Fig. 1. The aim of this research is to investigate their photovoltaic properties via the DFT and TD-DFT methods. Various parameters are analyzed which include the electronic, optical and photo-physical properties. Derivatives (PPH4 and PPH7) have shown the most favorable results i.e., least energy gaps (2.468 and 2.491 eV, respectively) and highest absorption shifts (617.913 and 613.146 nm, respectively). The IUPAC names and structures of utilized benzothiophene based acceptors (A1-A8) are presented in the supplementary information (see Figure S2). However, the IUPAC names of reference and designed derivatives are mentioned in the Table S10. This DFT-based study explicates that the photovoltaic properties of organic compounds can be enhanced by their substitution with different end-capped acceptor units39. Their molecular structures are presented in the Figure S3, while their optimized geometries are shown in the Fig. 2. The Cartesian coordinates of studied chromophores are depicted in the Tables S1-S9.

Fig. 1
Fig. 1
Full size image

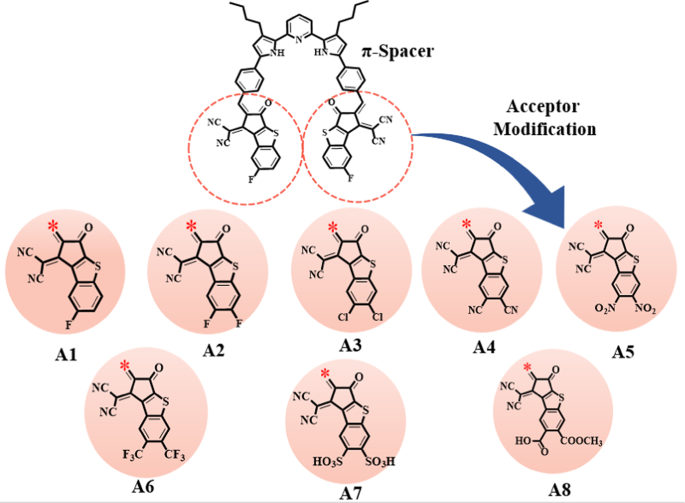

Schematic representation of the designed compounds.

Fig. 2
Fig. 2Fig. 2
Full size image

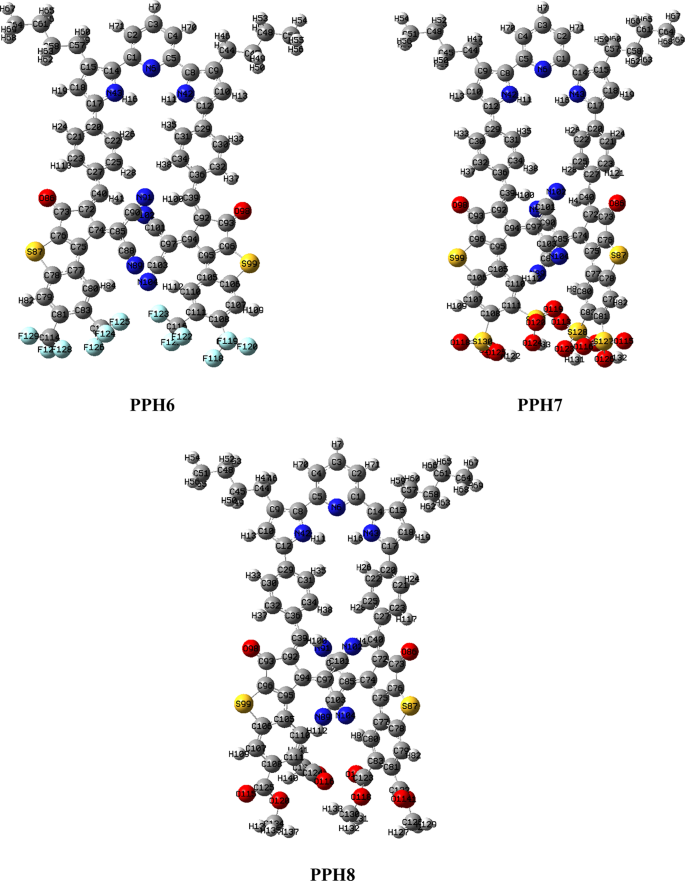

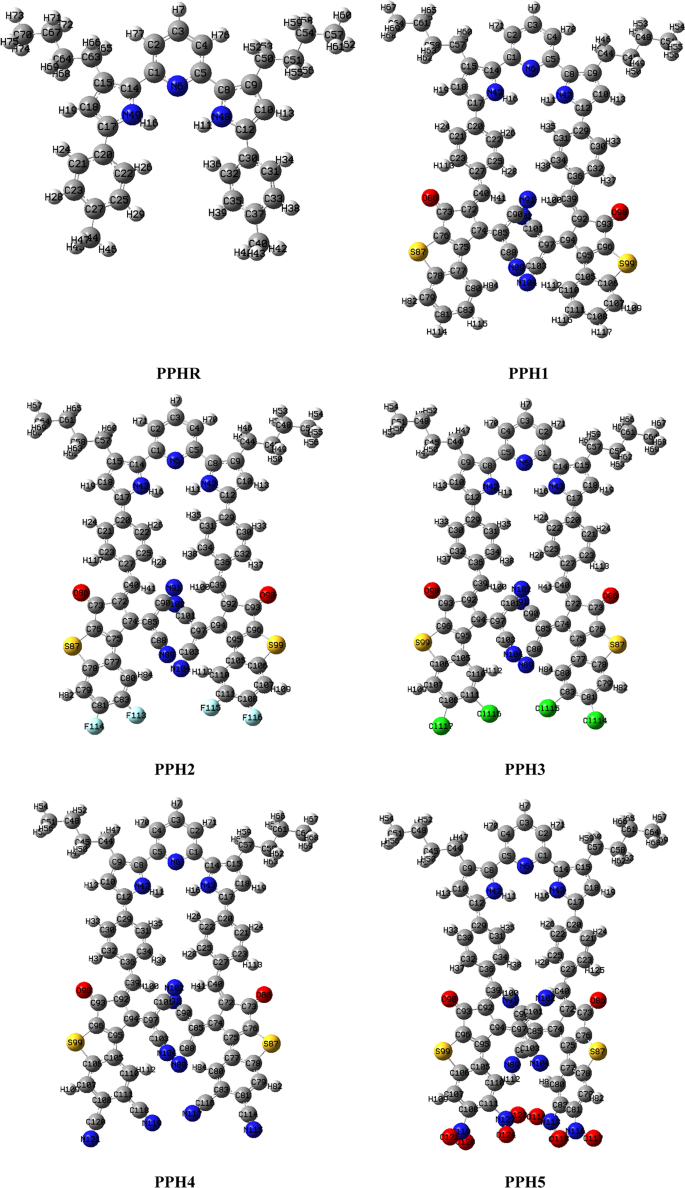

Optimized structures of the investigated chromophores (PPHR and PPH1-PPH8).

Frontier molecular orbitals (FMOs) analysis

Frontier molecular orbitals analysis conceptualizes the chemical reactivity of molecules in terms of the interactions between their frontier orbitals40. It usually focuses on the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) interactions. The HOMO is logically viewed as electron donating or valence band, while the LUMO is electron accepting or conduction band41,42. For an effective charge transfer within a molecule, electron density must be shifted promptly from the HOMO towards the LUMO43. The difference in energies of HOMO and LUMO deliberately elucidates the chemical reactivity44, stability45, and intramolecular charge transfer46. Overall, the FMOs analysis estimates the electronic properties of organic chromophores47. Therefore, this analysis is performed for the titled molecules (PPHR and PPH1-PPH8) at M06/6-311G(d, p) level and the results are tabulated in the Table 1. It represents the energies of major orbitals (HOMO and LUMO) along with their energy gaps (Egap). Similarly, results for other orbitals (HOMO-1/LUMO + 1 and HOMO-2/LUMO + 2) are presented in the Table S11 and Figure S4).

Table 1 Assessments of energy gaps for the PPHR and PPH1-PPH8 compounds.
Full size table

The computed energies (EHOMO and ELUMO) for reference compound (PPHR) i.e. −5.318 and − 1.227 eV, respectively, are higher than other derivatives (PPH1-PPH8). Similarly, the energy gap for PPHR is found as 4.091 eV which is much higher than designed chromophores. Moreover, the Table 1 shows that, among PPH1-PPH8 systems, the compounds (PPH4 and PPH7) show the least energy gaps (2.468 and 2.491 eV) which might be due to the accommodation of 1-(dicyanomethylene)−2-methylene-3-oxo-2,3-dihydro-1-H-benzo[b]cyclopenta[d]thiophene-6,7-dicarbonitrile and 1-(dicyanomethylene)−2-methylene-3-oxo-2,3-dihydro-1-H-benzo[b]cyclopenta[d]thiophene-6,7-disulfonic acid as the terminal acceptors, respectively. According to literature analysis, the presence of strong electron acceptors over the terminals significantly reduces the energy gap39,40. In case of the above-mentioned acceptors, –CN and –SO3H groups are present which lower the overall energy gaps of respective compounds. The following decreasing order of Egap is observed for the investigated compounds in eV: PPHR > PPH1 > PPH8 > PPH2 > PPH3 > PPH6 > PPH5 > PPH7 > PPH4.

The FMOs contour surface diagrams for the entitled molecules are displayed in the Fig. 3 which represent the electronic cloud distribution with blue and red regions showing positive and negative intensities, respectively. In HOMO of PPHR compound, the electron density is observed over the whole molecule except nitrogen and n-butyl chain. While, in LUMO, it spreads over the entire molecule except n-butyl chain. Similarly, in HOMO of derivatives (PPH1-PPH8), the electron density lies over the π-linker units, while in their LUMO, the clouds are seen over the terminal acceptors. Hence, the analyzed molecular systems show significant charge transfer from the π − spacer towards the acceptor regions. Concluding this discussion, it is inferred that the designed chromophores have emerged as efficient optoelectronic materials.

Fig. 3
Fig. 3Fig. 3Fig. 3
Full size image

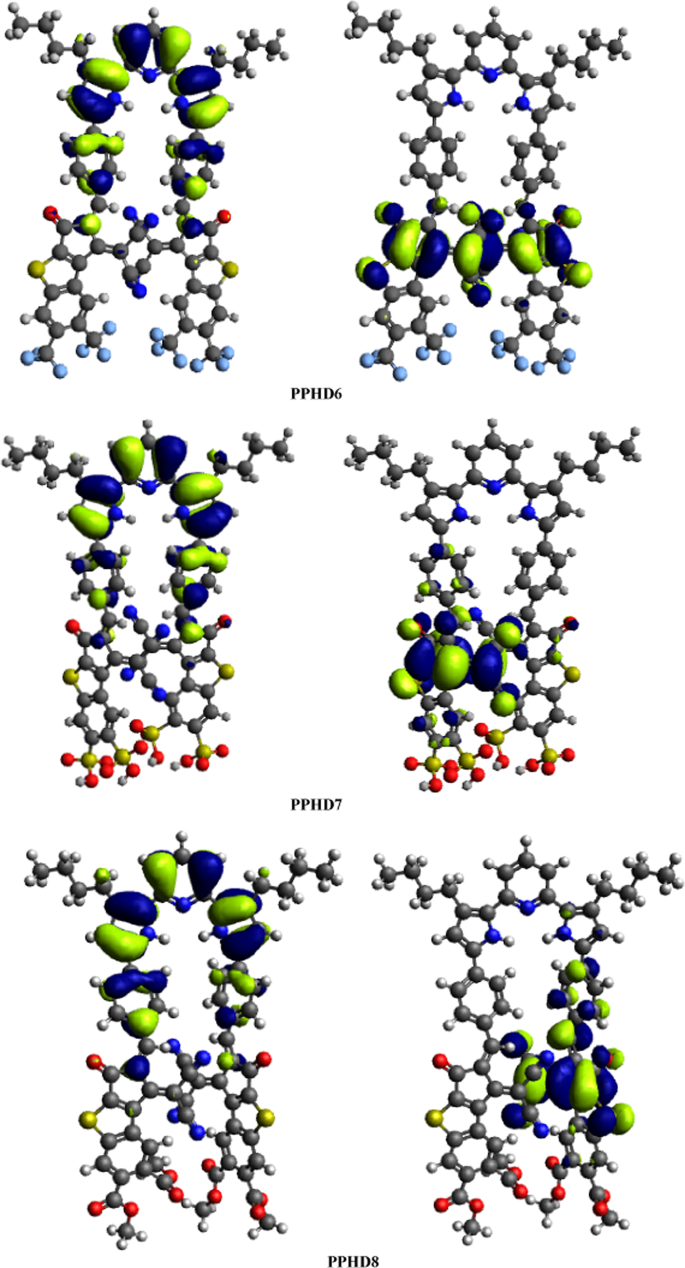

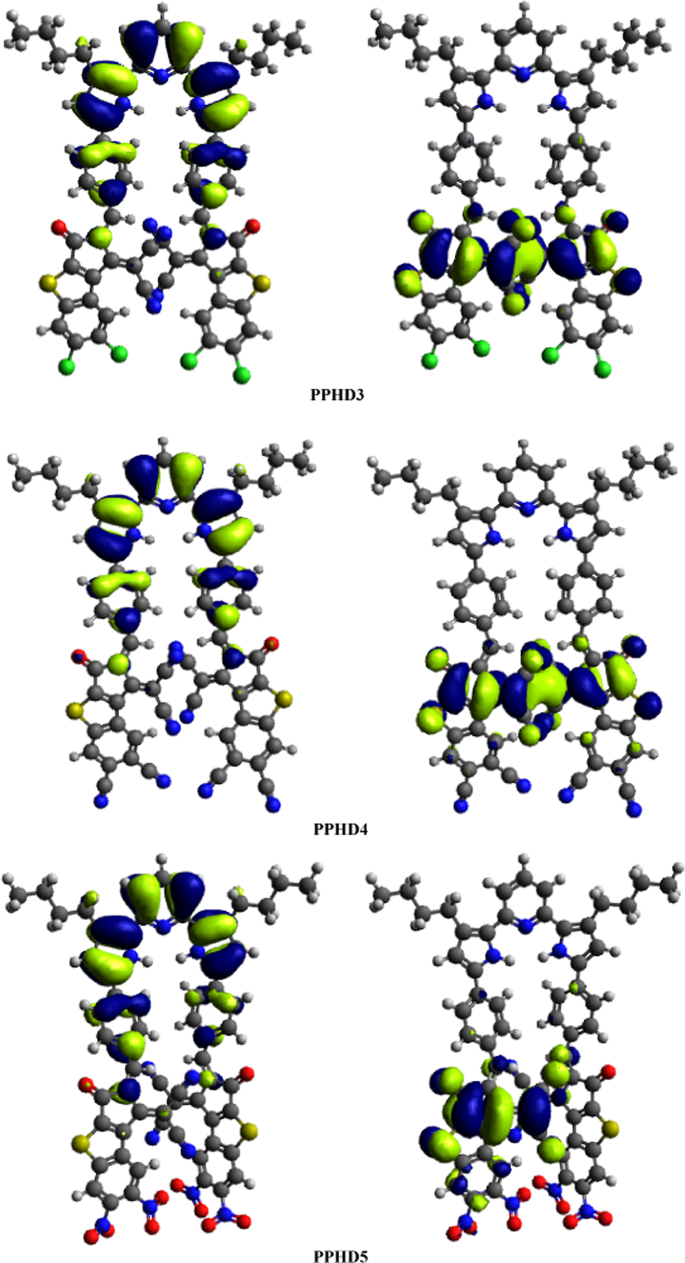

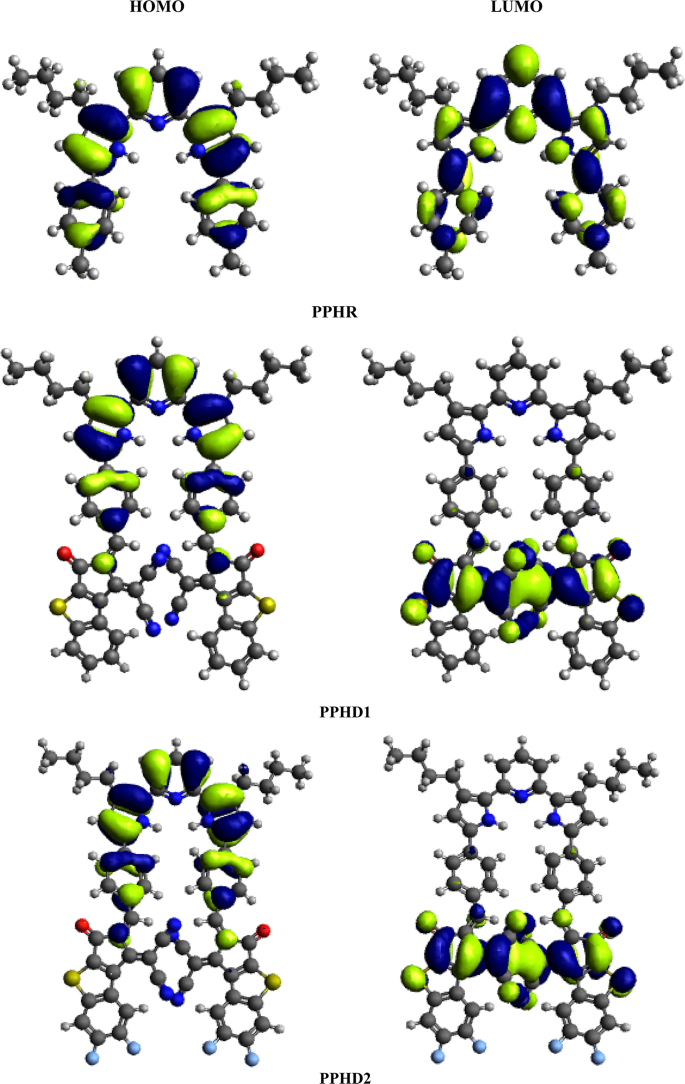

HOMOs and LUMOs of the entitled compounds.

UV-Visible analysis

The UV-Visible analysis elucidates the charge transmission properties in the studied chromophores41,42. There are several parameters among which the absorption maxima (λmax) and excitation energy (E) are the most significant. They refer to the exact energy necessary for a transition to occur and the oscillation frequency (fos) represents the possibility of transition48. Hence, a compound with broader absorption attains higher λmax and fos while, lower E values. The broader absorption further leads to efficient intramolecular charge transfer49. The UV-Visible analysis is performed using the time-dependent DFT (TD-DFT) at selected level in both gas and chloroform solvent. The analysis includes the interpretation of λmax, fos, E and excited state transitions up to six energy levels. The representative values are displayed in the Table 2. However, other results are tabulated in the Tables S12 and S13. The graphical representation of the absorption spectra is plotted in the Fig. 4.

Table 2 Wavelength (λmax), excitation energy (E), oscillator strength (fos) and molecular orbital contributions of compounds (CBR and CBD1-CBD8) in gaseous and solvent phases.
Full size table

The data show that in gas phase, all the designed derivatives (PPH1-PPH8) exhibit significantly higher λmax values in a range of 562.874-617.913 nm as compared to the reference (PPHR) i.e., 384.114 nm. The following decreasing order for λmax is observed in these compounds: PPH4 (617.913) > PPH7 (613.146) > PPH5 (603.153) > PPH6 (593.339) > PPH3 (585.688) > PPH2 (580.532) > PPH8 (576.135) > PPH1 (562.874) > PPHR (384.114) in nm. Conversely, they show lower transition energies (E) in a range of 2.007–3.228 eV. The following pattern is observed for E among the investigated chromophores: PPH4 (2.007) < PPH7 (2.022) < PPH5 (2.056) < PPH6 (2.090) < PPH3 (2.117) < PPH2 (2.136) < PPH8 (2.152) < PPH1 (2.203) < PPHR (3.228) in eV. The oscillation frequency (fos) are observed as PPHR (0.406), PPH1 (0.089), PPH2 (0.077), PPH3 (0.068), PPH4 (0.033), PPH5 (0.011), PPH6 (0.048), PPH7 (0.030) and PPH8 (0.029). Lastly, the molecular orbital contributions observed for PPHR and PPH1-PPH8 are H→L (97%), H→L (92%), H→L (93%), H→L (93%), H→L (94%), H→L (33%), H→L (94%), H→L (70%) and H→L (82%), respectively. PPH4 and PPH7 compounds show the most red-shifted absorption values (617.913 and 613.146 nm) which is due to the presence of strongly electron-withdrawing species in their acceptors (–CN and –SO3H groups, respectively). The molecular orbital transitions responsible for this red-shift are the first excited state transitions from HOMO to LUMO represented as H→L (94%) and H→L (70%) respectively. The reason behind this red-shift is principally due to the enhanced electron-withdrawing capacity of the terminal acceptors, which substantially stabilize the LUMO energy levels. This leads to a diminished HOMO-LUMO energy gap in PPH4 and PPH7 (2.468 and 2.491 eV, respectively) which facilitates the ICT, as indicated by the predominant transitions accounting for over H→L (90%) of the low-energy absorption bands.

Similarly, in case of the chloroform solvent, the compound (PPH4) shows the utmost λmax = 550.258 nm with correspondingly least transition energy as 2.253 eV. Overall, the absorption values of derivatives in this case are lesser than gaseous phase values and following trend is observed: PPH4 (550.258) > PPH5 (540.943) > PPH7 (533.265) > PPH6 (528.853) > PPH8 (526.048) > PPH3 (502.469) > PPH2 (496.195) > PPH1 (487.685) > PPHR (340.672) in nm. Therefore, it is anticipated that the studied chromophores exhibit significant photonic properties with broader absorptions in the visible region and lower excitation energies50.

Fig. 4
Fig. 4
Full size image

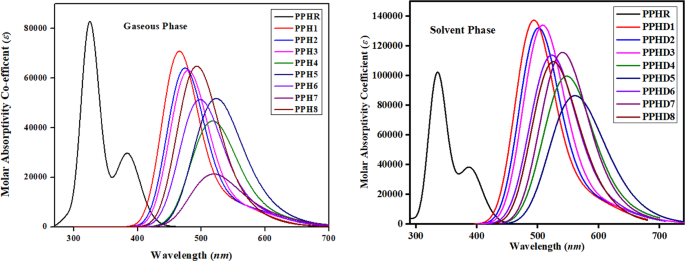

UV-Visible spectra for the entitled compounds in gas and chloroform solvent.

Density of States (DOS)

Density of states analysis is used to evaluate the electronic structure of a molecular system by examining the contribution of electronic states at specific energy levels51,52. This analysis provides a comprehensive view of the energy distribution and helps in calculating the Egap between the HOMO and LUMO53. By complementing the FMOs analysis, DOS calculations offer insights into how different fragments within a molecule contribute to the overall electronic structure which often aids in understanding their electronic properties and behavior54. To examine the ICT, the designed chromophores are categorized into two fragments: the π-spacer (core unit) and the acceptor (end-capped group). In the DOS spectra for PPHR and its derivatives (PPH1-PPH6), the π-bridge and acceptor contributions are shown by green and red curves, respectively, while the black curve represents the combined contribution of both fragments, as depicted in the Fig. 5.

Fig. 5
Fig. 5Fig. 5
Full size image

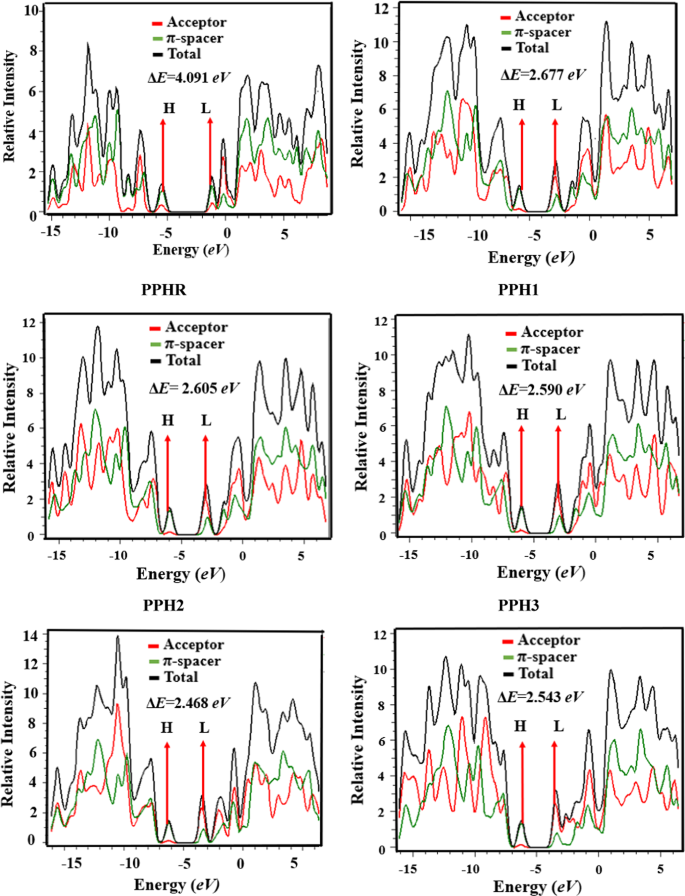

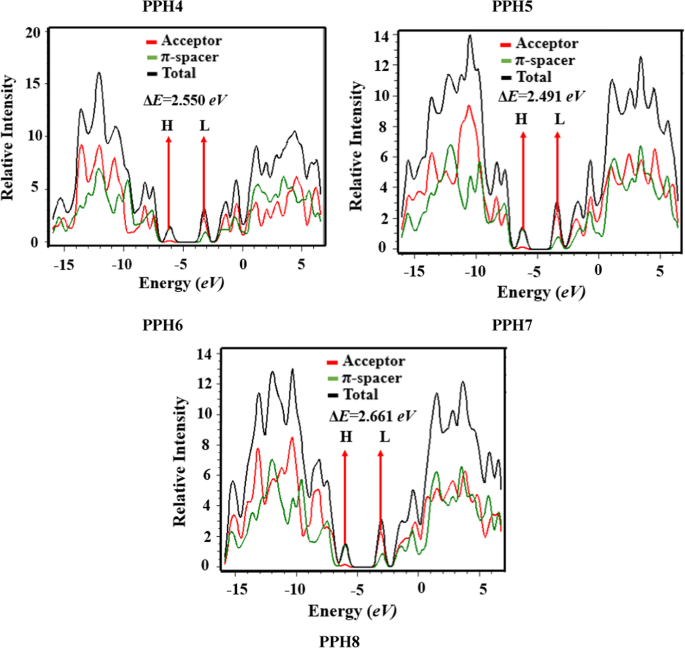

DOS spectra of the studied compounds (PPHR and PPH1-PPH8).

In these DOS plots, the valence band (HOMO) is denoted on the left side, and the conduction band (LUMO) on the right side over the x-axis. The energy gap, which is the distance among the HOMO (H) and LUMO (L) foremost peaks is also illustrated in the Fig. 5. In HOMO, the electronic contributions for the π-spacer are examined as 80.0, 91.3, 91.4, 91.3, 91.6, 91.3, 91.9, 91.2 and 91.1% in PPHR-PPH8, respectively. Whereas, for LUMO, this charge density is investigated as 78.5, 7.7, 7.1, 6.2, 3.8, 7.6, 4.9, 7.4 and 16.4%, respectively. Likewise, for acceptor moieties, the electronic contributions are 20.0, 8.7, 8.6, 8.7, 8.4, 7.7, 8.1, 7.8 and 7.9% in HOMO, accordingly. While, for the LUMO, 21.5, 92.3, 92.9, 93.8, 96.2, 92.4, 95.1, 92.6 and 83.6% charge contributions are noted for PPHR-PPH8, respectively (see Table S14). Furthermore, the DOS maps reveal that the maximum charge density for the HOMO is concentrated on the π-spacer, marked by a green peak around − 7.8 eV. Similarly, the charge density for the LUMO is indicated by red peak between − 3 to −3.5 eV, demonstrating charge transfer from the central core towards the acceptors. Thus, the DOS graphs strongly support the FMOs pictographs showing that there is a considerable delocalization of the electronic cloud and substantial charge transfer from the central core to the acceptor groups.

Non-Covalent interactions (NCI)

Non-covalent interaction analysis functions as a comprehensive evaluation technique to elucidate weaker molecular interactions, encompassing hydrogen bonding, Van der Waals forces and steric effects55. Such interactions in the organic molecules predict their chemical reactivity and stability characteristics.

Multiwfn software is employed to produce the 2D reduced density gradient (RDG) scatter plots and the color-filled RDG isosurfaces for all the investigated compounds (PPHR and PPH1-PPH8) are visualized using the VMD software (see Fig. 6). RDG plot is drawn between (λ2)ρ on the x-axis and RDG values on the y-axis in a.u. The type of interactions is distinguished as bonded (λ2 < 0) and non-bonded (λ2 > 0) interactions on the x-axis. The RDG in conjunction with electron density in NCI analysis produces visual representations that illustrate attractive forces in blue, weaker Van der Waals interactions in green, and steric repulsions in red56.

The NCI study demonstrates varying impacts of different substituents on the interaction behaviors of the studied compounds. The sign of the (λ2)ρ function mapping reveals essential information regarding the nature and strength of interactions. The blue patches in the NCI plot signify robust attractive interactions, typically indicative of hydrogen bond production. These fundamental atomic interactions greatly enhance molecule stability and intra- or intermolecular structural connectivity. The high intensity and extensive distribution of blue regions within these areas indicate the presence of well-defined hydrogen bonding in these structures that increase stiffness.

Overall, this study illustrates how molecular forces equilibrate between attraction and repulsion to sustain intermolecular interactions. Molecular stability arises from robust hydrogen bonding and secondary Van der Waals interactions; however, the structural constraints are imposed by steric repulsion.

Fig. 6
Fig. 6Fig. 6Fig. 6
Full size image

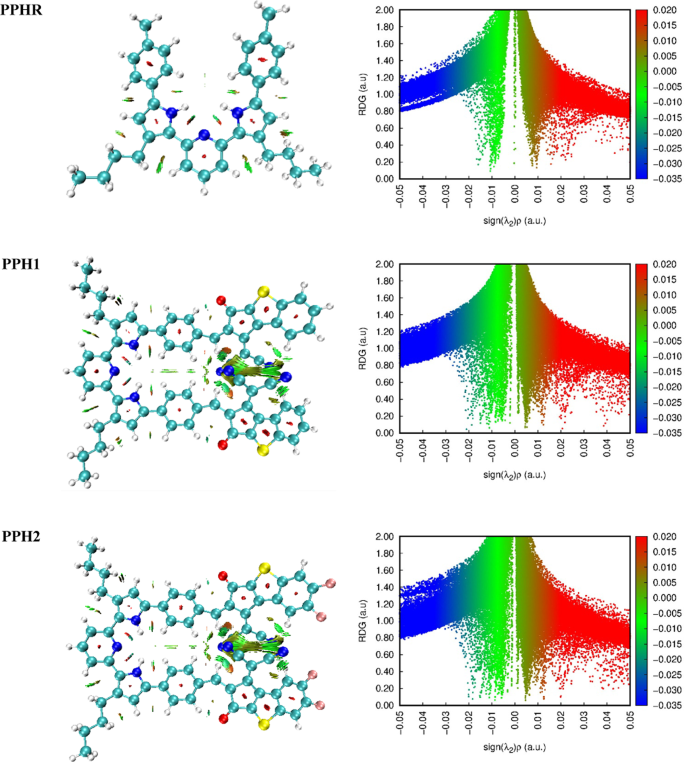

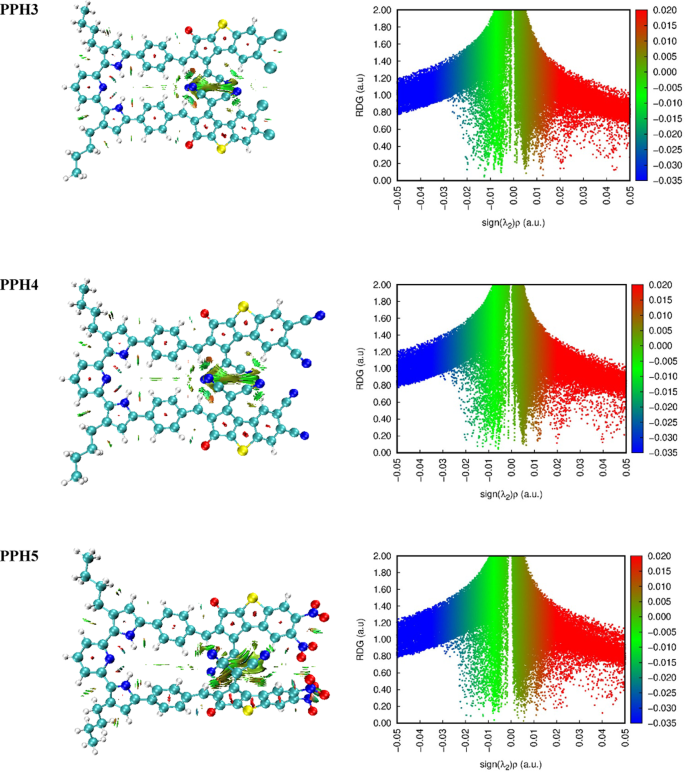

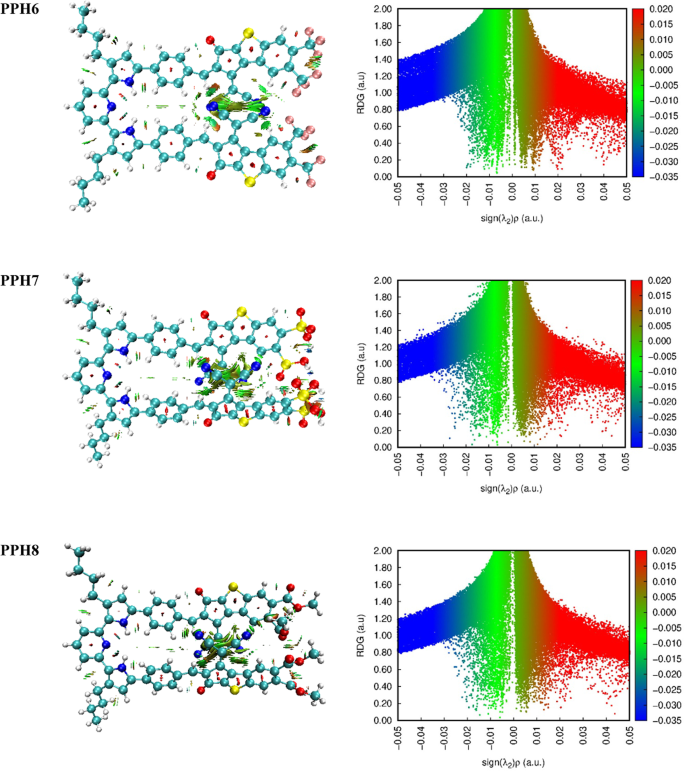

RDG isosurface densities and scatter plots of investigated compounds.

Transition density matrix (TDM)

The transition density matrix is an essential tool for assessing charge transitions within a molecule57. It provides insights into the distribution of electrons and holes, as well as the rate of charge transfer and the nature of excited states58. In a TDM plot, two significant regions need to be considered: the diagonal and off-diagonal areas. The diagonal elements correspond to the excited states of molecule, while the off-diagonal elements indicate charge transfer processes59. The TDM map of each chromophore separates different fragments (π-linker and terminal acceptor) with the help of horizontal and vertical colored lines offering a detailed view of charge coherence and hole-electron localization in diagonal and off-diagonal regions. Moreover, the brighter sections of TDM plots are enclosed in a ring showing the prominent sections of charge localization (see Fig. 7). Due to very less contribution of H-atoms in these transitions, they are excluded in this analysis60. The atom numbers of each individual molecule are plotted on the x- and y-axes61. Figure 7 shows that bright patches are consistently present both diagonally and off-diagonally in the acceptor and π-linker regions, illustrating efficient charge transfer within a molecule. Moreover, these bright regions also signify the presence of excited states in the TDM plots. The TDM heat maps for these chromophores indicate efficient charge transfer, without charge coherence being trapped. These heat maps are influential in the development of solar cells, as they suggest a smoother and more efficient flow of electrons from the central core towards the end-capped acceptor groups.

Fig. 7
Fig. 7Fig. 7
Full size image

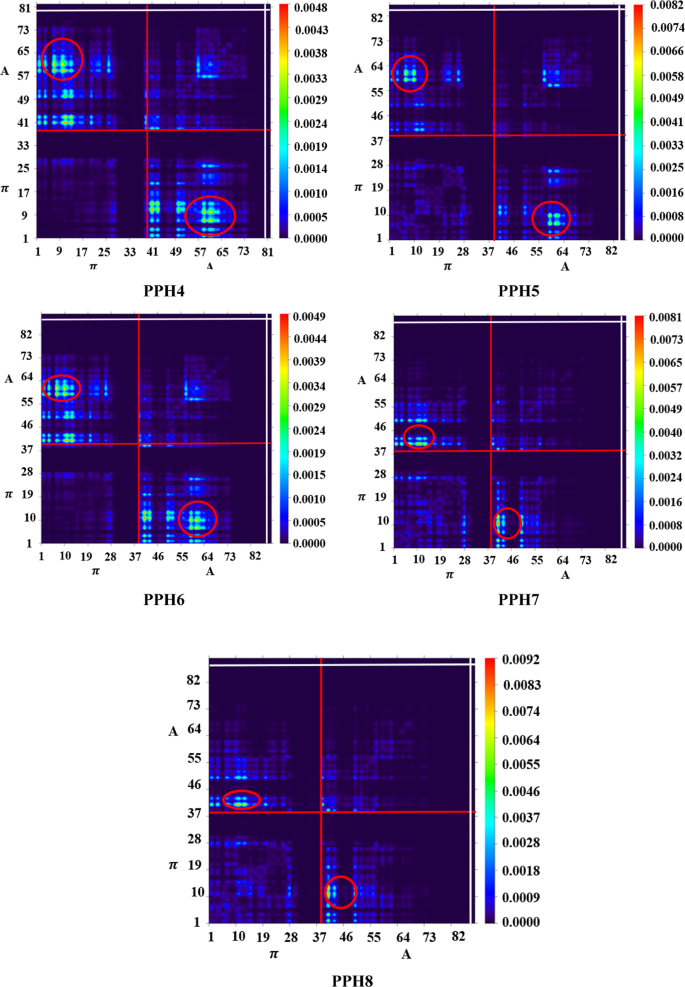

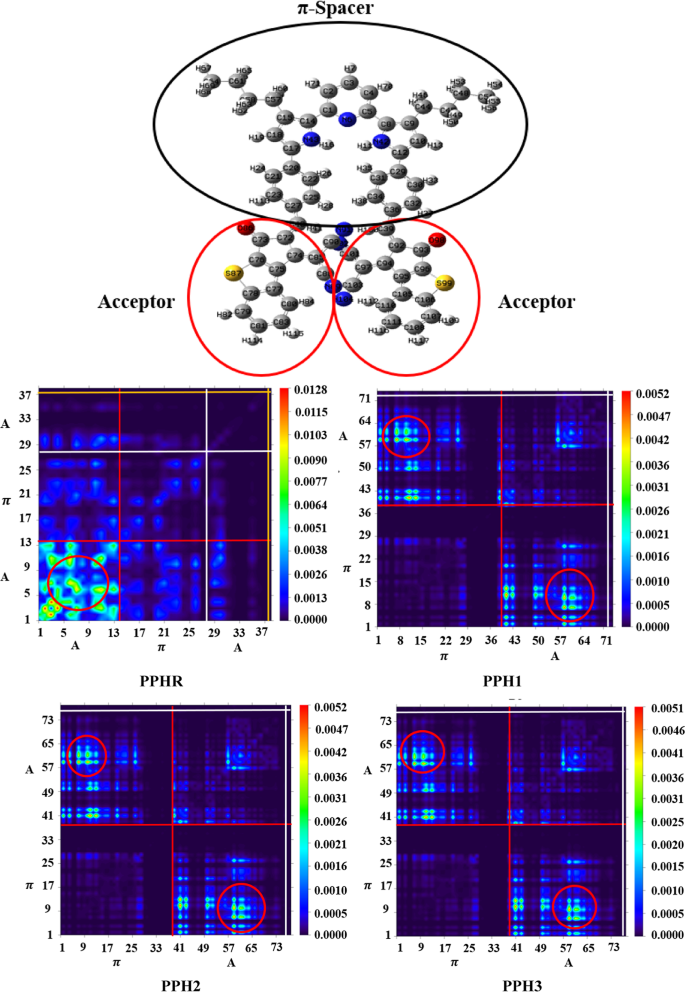

Transition density matrix diagrams of PPHR and PPH1- PPH8 chromophores.

Hole-Electron analysis

A heat map is a visual illustration for analyzing hole-electron interactions in photovoltaic materials, offering insight into the spatial and temporal behavior of charge carriers62. It provides crucial information about the function of each fragment in generating holes and electrons. Additionally, it helps evaluate how much overlap exists between holes and electrons within the photoactive layer of OSCs63. In this study, Multiwfn 3.8 is employed to analyze electron-hole interactions and determine the charge movement within the examined molecules.

From Fig. 8, it is observed that in the reference molecule (PPHR) and designed compounds (PPH1-PPH3), hole is generated at the carbon atoms (C7 and C11) of benzene and pyridine ring of π-spacer and electron intensity is also found concentrated over the C-atom of benzene and thiophene rings. In PPH5-PPH7 compounds, the band displays a moderate density, while the hole band achieves a maximum intensity similar to that of the previously designed chromophores. However, in PPH4 and PPH8, a slight hole density is concentrated around the C9, C10 and C27 atoms within the π-spacer, whereas the electron density is predominantly found at C41 and O51 atoms within the 2-(4-oxocyclopent-2-en-1-ylidene)malononitrile segment of the acceptor. Significantly, all visual representations reveal that the hole predominantly forms within the π-linker segment at the carbon atoms, whereas the electron density peaks are found notably across different atomic sites in the acceptor regions. Each chromophore displays notable electron and hole clouds across different parts of the molecule. PPH4 and PPH8 chromophores stand out as favorable candidates for solar cells as compared to other derivatives.

Fig. 8
Fig. 8Fig. 8
Full size image

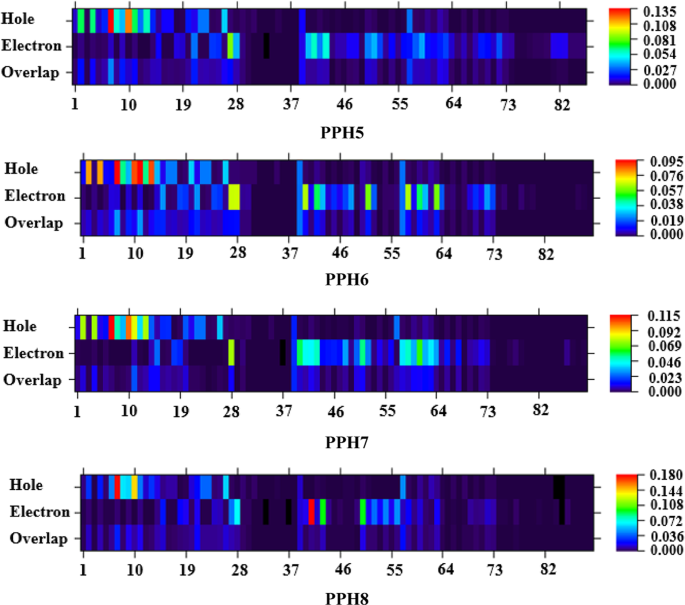

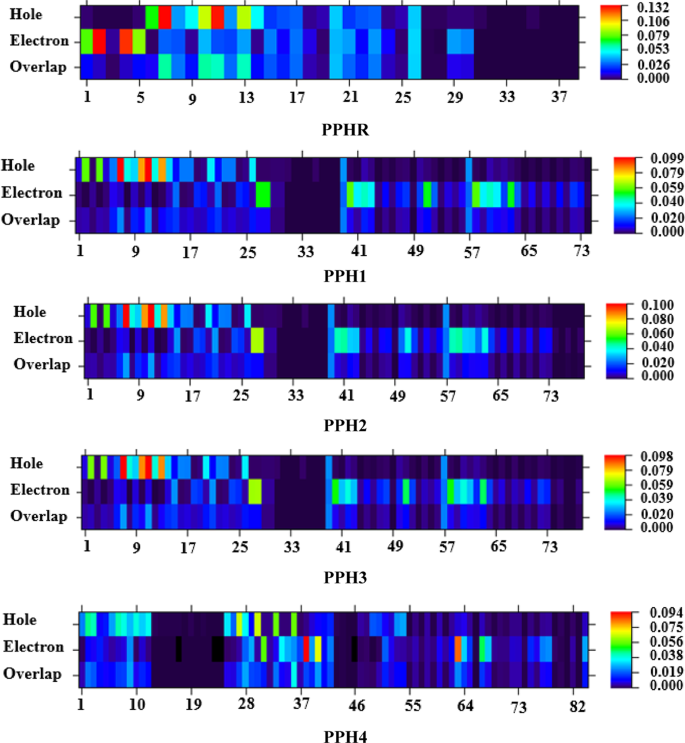

Electron-hole overlap in all the studied compounds.

Exciton binding energy (E b)

The binding energy refers to the minimum energy needed to dissociate an exciton into its individual components (an electron and a hole); this dissociation happens in the excited state generated by photoexcitation64. Coulombic forces between holes and electrons are assessed through the evaluation of binding energy. The Eb is influenced by the acceptor groups at the peripheries of the molecules. Strong electron-withdrawing or highly electronegative groups reduce binding energy by weakening the Coulombic attraction between electrons and holes, as they strongly attract electrons65. A reduced binding energy means fewer Columbic forces which in result facilitate efficient exciton splitting into holes and electrons. This enables the charges to migrate to their respective electrodes with greater ease and improves charge mobility in the excited states66. The Eq. 1 is used to calculate binding energy values for the investigated compounds67.

$$\:E_\text{b}\:=\:E_\text{g}\:-\:E_\text{x}$$
(1)

Here, the energy gap is denoted by Eg, and the first excitation energy of an electron from ground state (S0) to excited state (S1) is represented by Ex.

Table 3 The calculated values of Eg, Ex, and Eb for the investigated chromophores.
Full size table

Table 3 depicts the calculated Eb values for PPHR and PPH1-PPH8 as 0.863, 0.474, 0.469, 0.473, 0.461, 0.487, 0.460, 0.468 and 0.509 eV, respectively. Compound (PPH6) exhibits the least Eb value (0.460 eV) in the selected derivatives, indicating the highest rate of charge dissociation. The Eb in the entitled chromophores follows a declining trend as: PPHR > PPH8 > PPH5 > PPH1 > PPH3 > PPH2 > PPH7 > PPH4 > PPH6. Thus, the newly designed compounds show reduced exciton binding energy values as compared to the reference compound, suggesting a higher rate of electron-hole pair dissociation. Reduced exciton binding energies promote effective exciton dissociation into free charge carriers, hence improving charge separation and minimizing the recombination losses. This results in enhanced charge transport properties which are essential for attaining high power conversion efficiency in the organic photovoltaic devices68.

Concluding this, the findings of Eb are in close harmony with the TDM maps which demonstrate hole-electron localization in accordance with exciton dissociation. Literature shows that lower Eb enhances charge mobility, which in turn increases the short-circuit current density (Jsc) as well as improves the power conversion efficiency (PCE) of solar cells69. Thus, PPH6, PPH4, and PPH7 are likely to demonstrate high charge mobility contributing to the development of more efficient OSCs.

Open circuit voltage (V oc)

In order to evaluate the performance and maximum working capability of pyridine dipyrrolide material based OSCs, open-circuit voltage analysis is employed. The Voc refers to the maximum voltage in a circuit when no current is flowing70. This parameter has a significant impact on the power conversion efficiency of organic solar cells, as they are directly proportional to each other. A high Voc, ideally exceeding 1 V, is crucial for generating highly efficient OSCs. Voc corresponds to the energy difference between the HOMO of the donor material and the LUMO of the acceptor material. Significantly, the value of Voc is highly influenced by both the photo-generated current and saturation voltage63. Additionally, the Voc value is influenced by a number of parameters, including the system’s temperature, incident light, and the charge-transferring mechanism71. Scharber and colleagues formulated a simplified Eq. 2 for calculating Voc in solar cells72.

$$V_\text{oc}\:=\frac{1}{e}(\left|{\text{E}}_{\text{H}\text{O}\text{M}\text{O}}^{\text{D}}\right|-\left|{\text{E}}_{\text{L}\text{U}\text{M}\text{O}}^{\text{A}}\right|)-0.3$$
(2)

In this Equation, \(\:{\text{E}}_{\text{H}\text{O}\text{M}\text{O}}^{\text{D}}\) represents the HOMO energy of the donor, and \(\:{\text{E}}_{\text{L}\text{U}\text{M}\text{O}}^{\text{A}}\) denotes the LUMO energy of the acceptor. While “e” representing the elementary charge of the acceptor molecule, and 0.3 acting as an empirical constant derived from the drop factor of voltage. To achieve a higher open-circuit voltage, the energy gap between the HOMO of the donor and the LUMO of the acceptor material must be large, a key factor in enhancing the power conversion efficiency of OSCs. The selection of PC71BM as a standard acceptor is based on its historical importance and prevalent application as a benchmark acceptor in organic photovoltaics. Its well-defined energy levels, excellent solubility, and proven compatibility with various donor materials render it a suitable reference for comparative Voc assessments73. Since a high open-circuit voltage indicates a faster charge transfer rate within the molecule, PC71BM appears to be the most appropriate acceptor polymer. For this purpose, the HOMO of PPHR and PPH1-PPH8 compounds is coupled with the LUMO of PC71BM polymer to theoretically determine the Voc of the studied molecules. The LUMO energy level of the PC71BM acceptor is observed as −6.05 eV74. The pictorial illustration of driving force and Voc is depicted in the Fig. 9.

Fig. 9
Fig. 9
Full size image

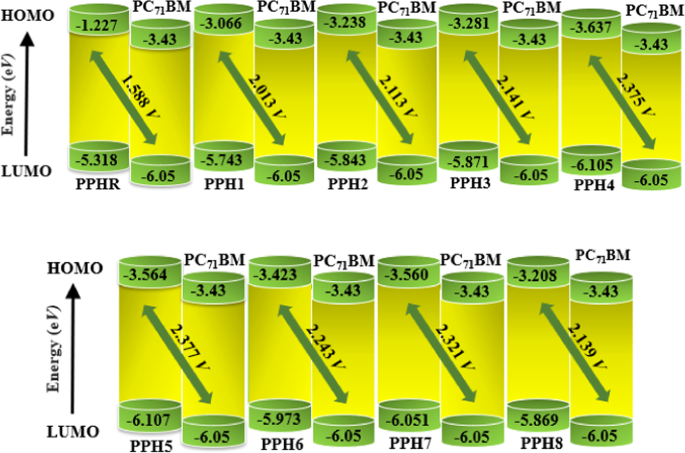

Graphical representation of Voc of the studied compounds with respect to PC₇₁BM acceptor.

The energy driving forces are essential for facilitating excitations from the HOMO to the LUMO. A narrower energy gap allows for easy excitation, demanding less energy for the electronic transition between these orbitals. This leads in greater electricity output and a stronger photovoltaic reaction, owing to the surplus energy carried by photons. The observed driving energies for the donor-acceptor complexes (\(\:\varDelta\:\)E) are 1.888, 2.313, 2.413, 2.441, 2.675, 2.677, 2.543, 2.621 and 2.439 eV for PPHR and PPH1-PPH8, correspondingly (see Table S15). The declining order of \(\:\varDelta\:\)E of all designed systems is found as: PPH5 > PPH4 > PPH7 > PPH6 > PPH3 > PPH8 > PPH2 > PPH1 > PPHR.

The computed Voc values for PPHR and PPH1-PPH8 are 1.588, 2.013, 2.113, 2.141, 2.375, 2.377, 2.243, 2.321, and 2.139 V, respectively. All the studied compounds exhibit higher Voc values compared to the PPHR. This indicates that these compounds possess the most significant charge delocalization, attributed to their highly potent acceptor groups incorporated at the terminal ends. In particular, PPH5 demonstrates the highest Voc, highlighting its superior ability for charge delocalization and power conversion efficiency as compared to other compounds. PPH5 > PPH4 > PPH7 > PPH6 > PPH3 > PPH8 > PPH2 > PPH1 > PPHR is the declining sequence of Voc for the investigated chromophores. In summary, pyridine dipyrrolide-based chromophores exhibit excellent photovoltaic properties, demonstrating their potential for effective the OSCs materials.

Conclusion

This study illustrates the strategic advantages of end-group modification in improving the optoelectronic characteristics of organic chromophores for use in organic solar cells. Eight novel chromophores (PPH1–PPH8) were developed by modifying the terminal acceptor groups of the reference molecule (PPHR), demonstrating advantageous characteristics like decreased energy gaps, red-shifted absorbance, effective intramolecular charge transfer, and favorable open-circuit voltages. These findings emphasize the design adaptability of pyridine dipyrrolide-based structures and their significance for next-generation solar materials. In addition to theoretical insights, this research offers a logical chemical framework that can assist experimental chemists in synthesizing good photovoltaic materials. Overall, this work advances the pursuit of sustainable and efficient materials for organic photovoltaics through providing design methodologies especially utilization of benzothiophene based acceptors.
