From: The energy and stress evolution law of surrounding rock in gob side entry driving of adjacent mining faces

Fig. 13

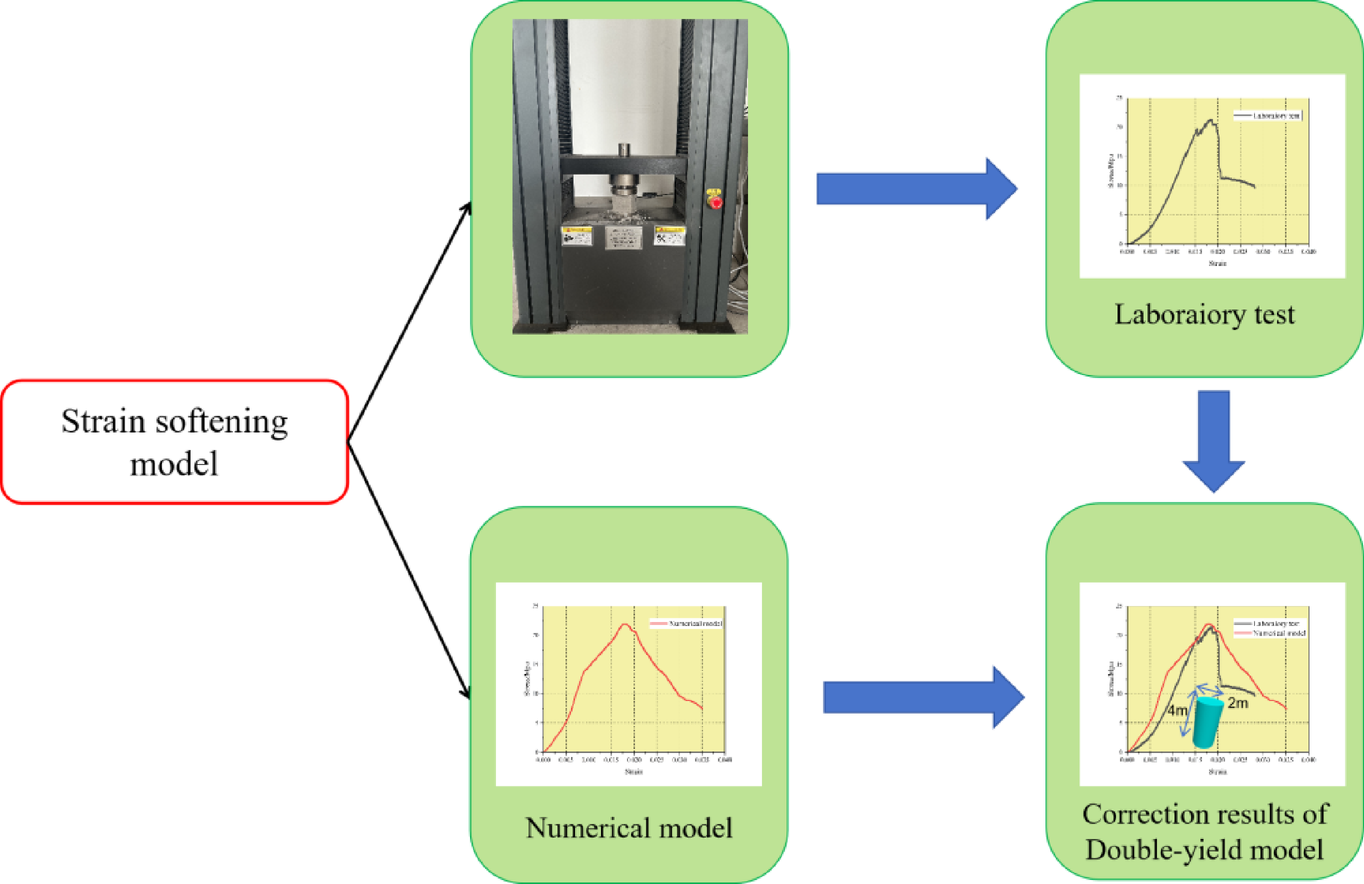

Correction results of double yield model. This image shows the double yield model with the overall trend and peak point of the stress-strain graphs from numerical simulations and laboratory tests being essentially close to each other. The FLAC 3D software was used to model a cylinder with a diameter of 2 m and a height of 4 m at a fixed speed of 2.5 × 10(-1) ,0-5 m/step was applied simultaneously to the top and bottom.
