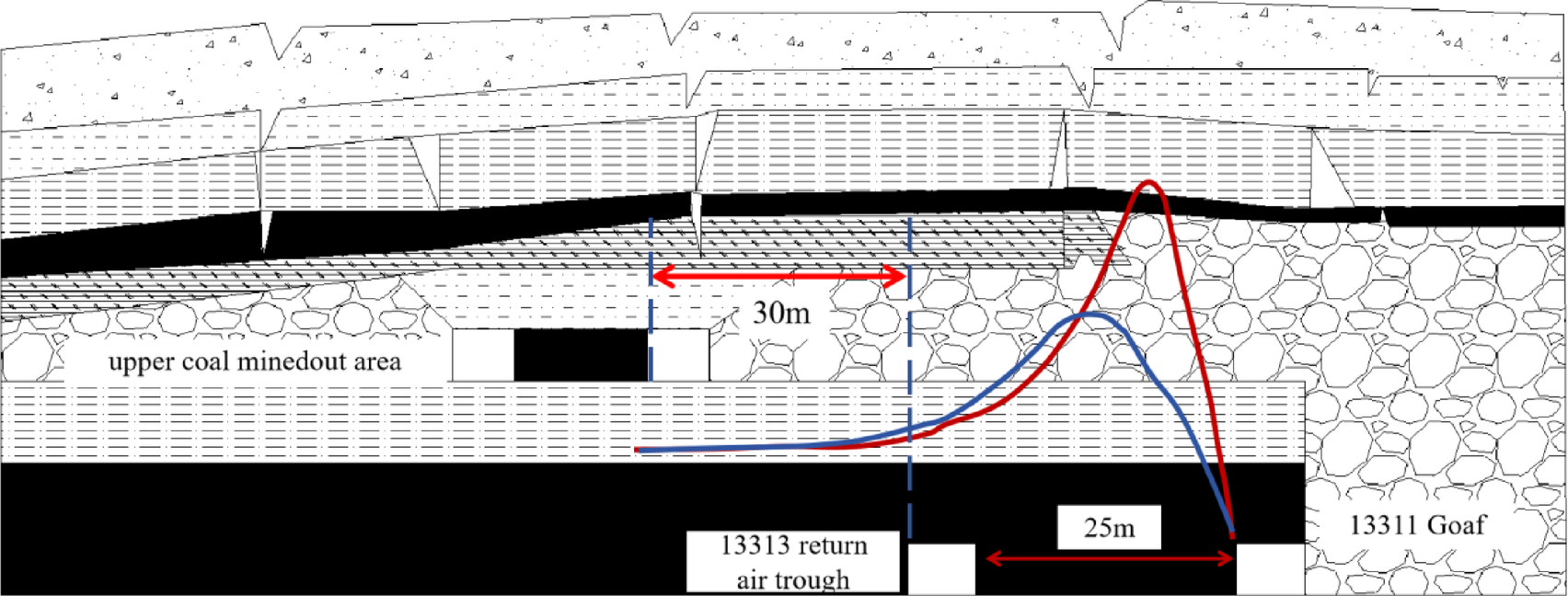

Fig. 15

Lateral abutment pressure distribution of No.13 coal seam working face. This picture shows the lateral support pressure distribution of the working face, the red curve is for single seam mining; the blue curve is for the lateral support pressure distribution of the 13311 working face after mining.
