Fig. 16

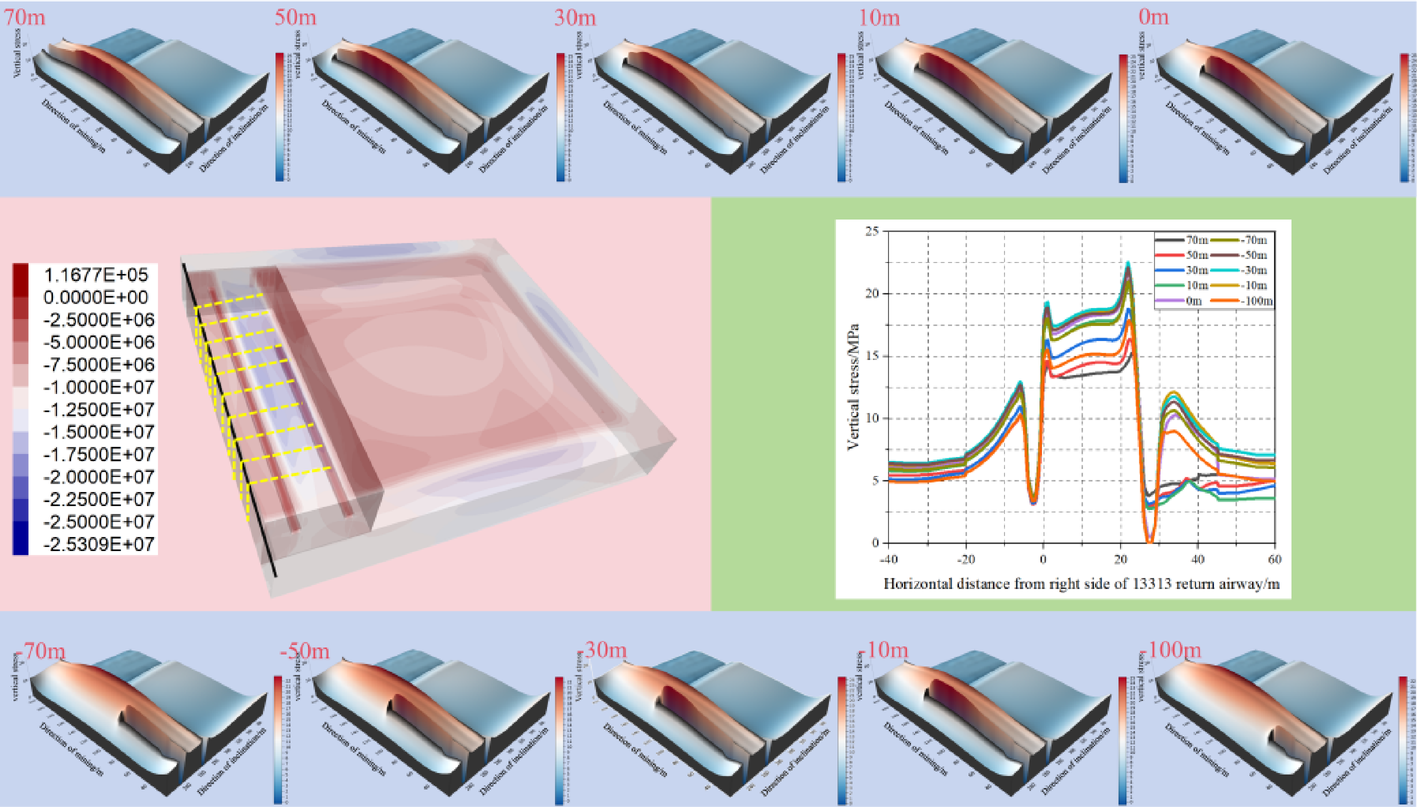

The stress cloud diagram of roadway surrounding rock under different mining-excavation positions. This picture shows the three-dimensional stress distribution map at each stage, the vertical stress reaches the peak point about 30m before the intersection, and then the vertical stress inside the coal pillar starts to decrease gradually, and the internal stress state of the coal pillar shows the trend of rising and then decreasing in the whole evolution cycle.
