Fig. 11
From: Enhanced PCB defect detection via HSA-RTDETR on RT-DETR

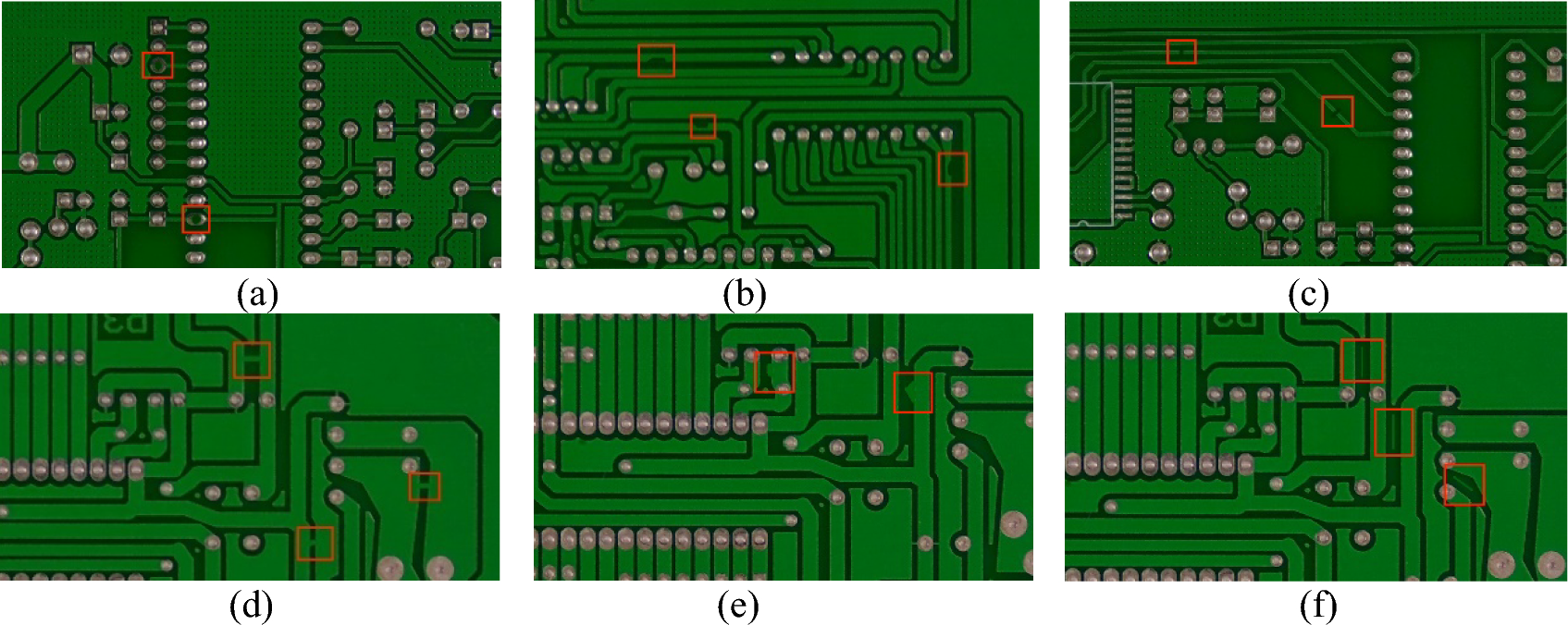

Six types of defects in the PCB dataset, (a) Missing holes, (b) Mouse bites, (c) Open circuits, (d) Short circuits, (e) Spurs, (f) Spurious copper.
