Fig. 6 | Scientific Reports

Fig. 6

From: Comparative analysis of directional cue perception between vibrotactile and electrotactile using funneling illusion mapping methods

Fig. 6

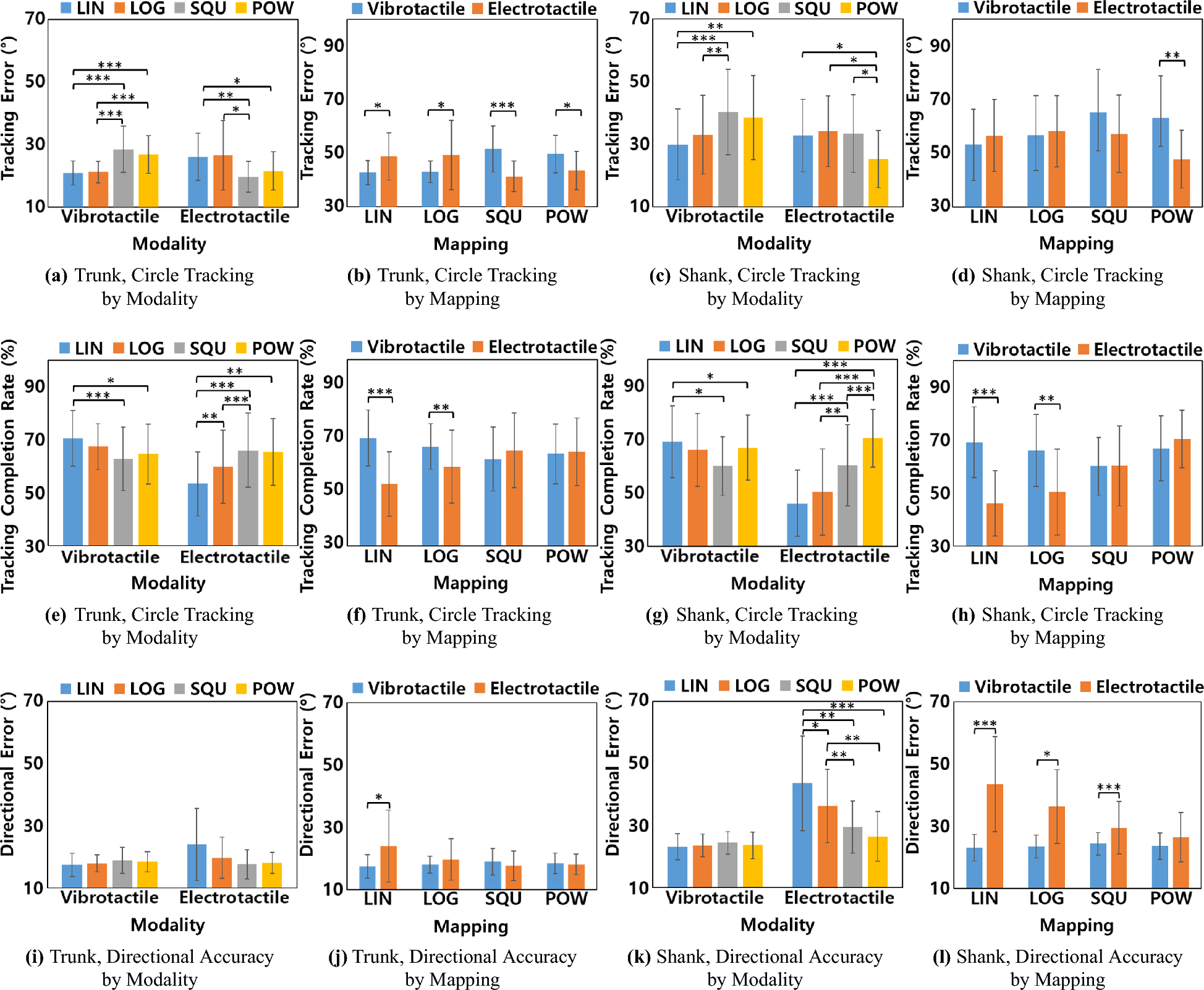

The bar plot with mean, standard deviation, and two-way RMANOVA results for the (a)-(h): circle tracking experiment, (i)-(l): directional accuracy experiment. (a)-(b): Trunk, Tracking Error, (c)-(d): Shank, Tracking Error, (e)-(f): Trunk, Tracking Completion Rate, (g)-(h): Shank, Tracking Completion Rate, (i)-(j): Trunk, Directional Error, (k)-(l): Shank, Directional Error. Statistically significant differences are marked based on the Post-hoc pairwise comparisons (*: p<.05, **: p<.01, ***: p<.001). The colored bars show the mean and the error bars show the standard deviation.
