From: AI-CMCA: a deep learning-based segmentation framework for capillary microfluidic chip analysis

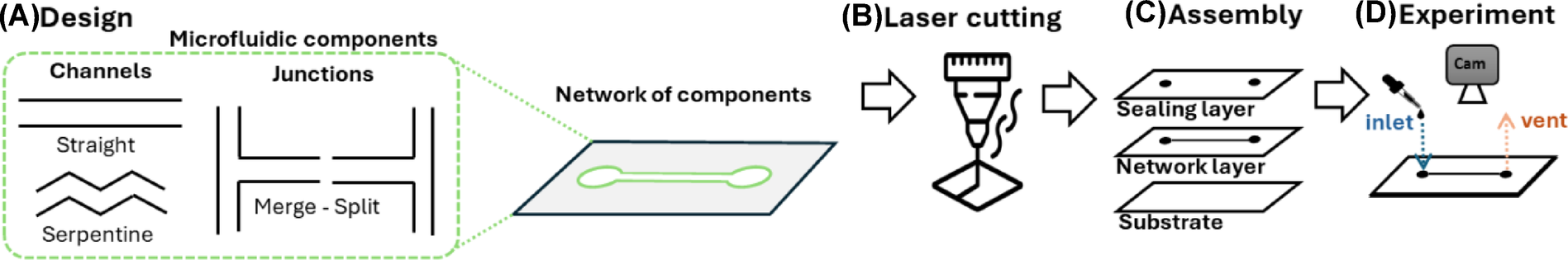

Schematic of the simple CMC designs and their fabrication process. (A) Design of the capillary channel network and fundamental components of straight and serpentine channels, including merging and splitting. (B) Laser cutting of individual layers. (C) Multi-layer assembly of CMC via pressure-sensitive adhesive sheets. (D) Experimental setup for recording the operation of the assembled CMC.
