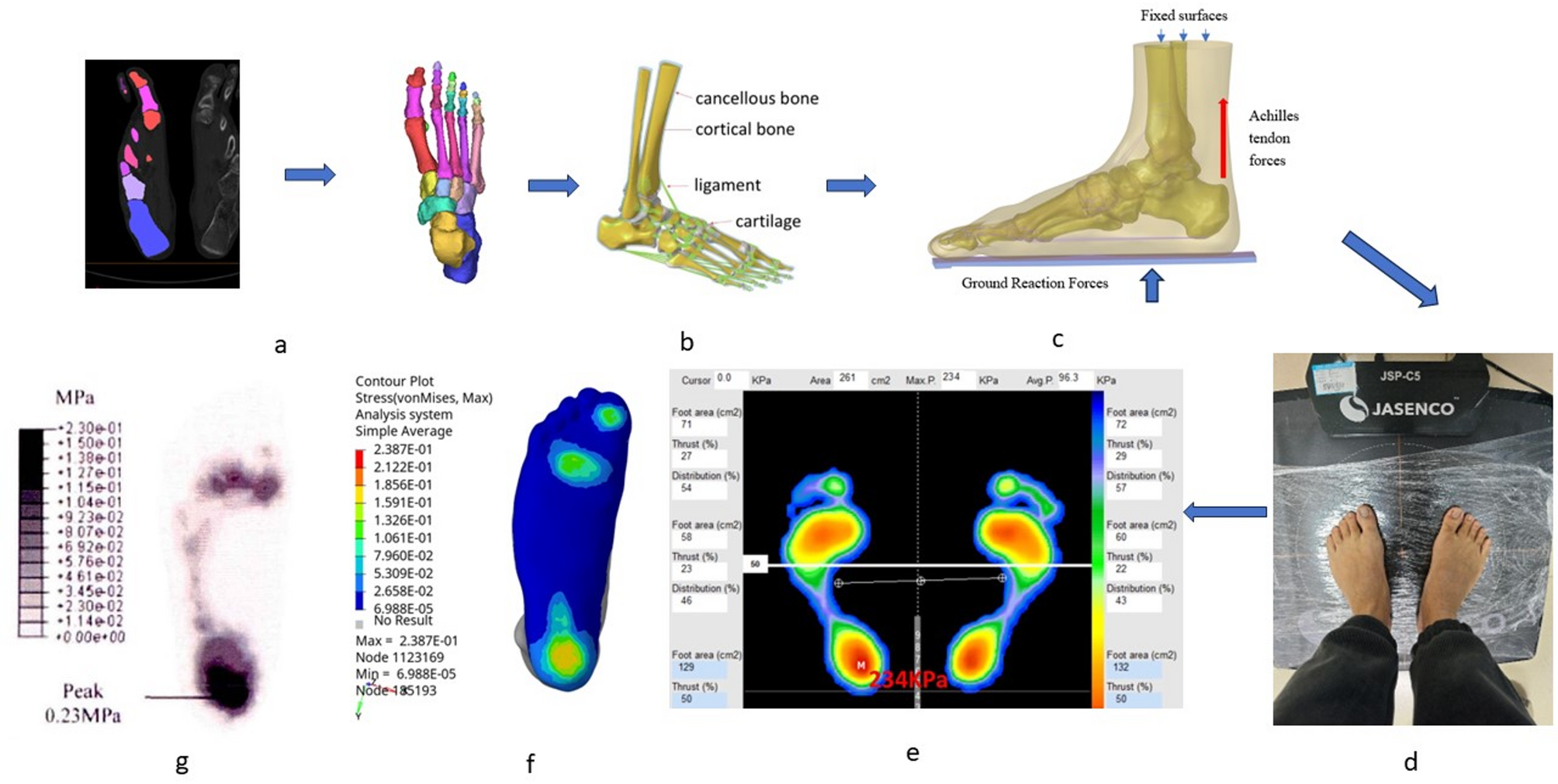

Overview of process steps. (a) Construct 3D skeletal model by segmenting CT images in Mimics software. (b) Construct cartilage and ligament model. (c) Apply boundary conditions and loading to the model (d) Volunteer plantar pressure analysis.(e) Volunteer plantar pressure analysis diagram. (f) Plantar stress distribution in the finite element model of this study.(g) Plantar stress distribution in Tao’s finite element model.
