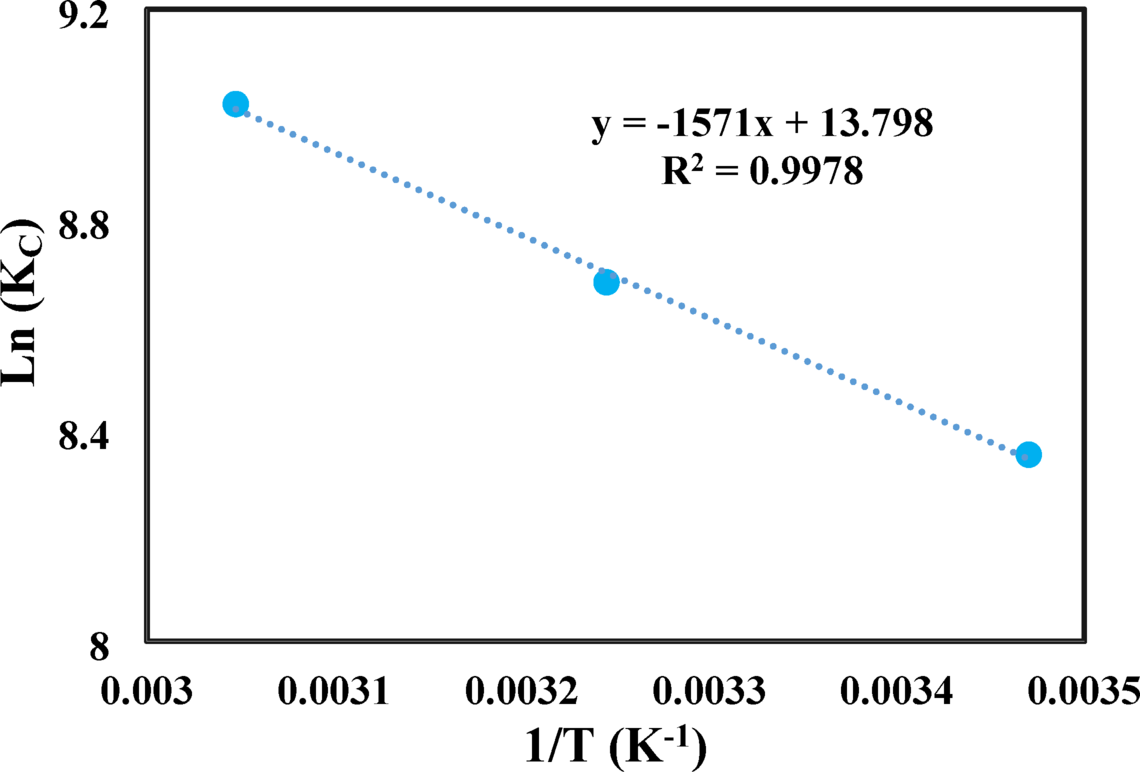

Fig. 10
Thermodynamic study diagram of the Ce(III) ion exchange process. (H2SO4 concentration 0.6 M, initial Ce(III) concentration 50 mg L−1, resin dosage 0.16 gr, solution volume 50 mL, shaker speed 150 rpm, contact time 24 h).
