Fig. 1
From: Detection of cavities in a salt mine with cosmic muons: expected results and first data

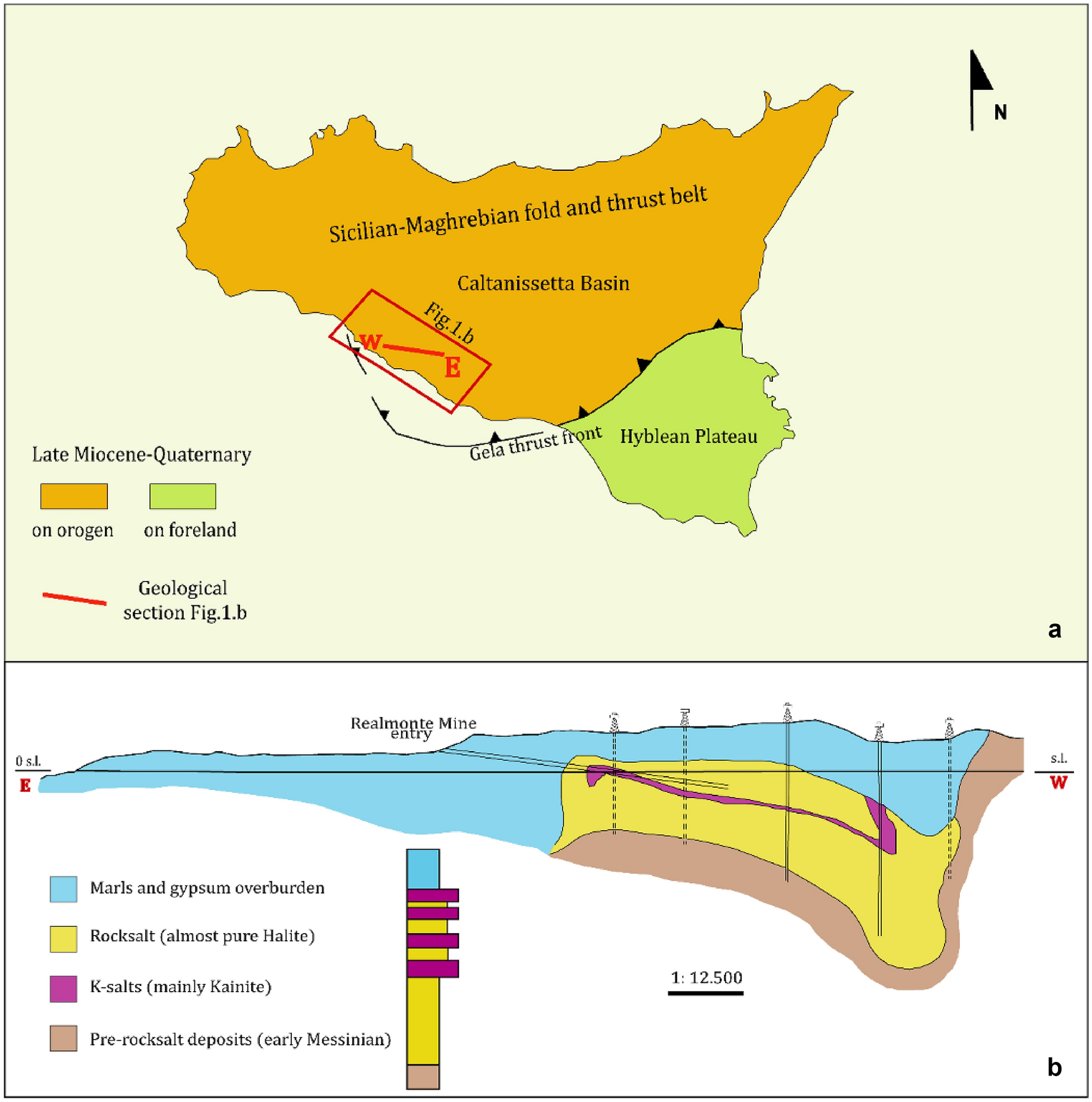

(a) Regional location of the Realmonte mining area. Green and orange represent the geodynamic attributes accepted in the literature. Orange represents the area deformed by the presence of the Sicilian-Maghreb chain (on orogen), with green color the undeformed area of the Hyblean Plateau (foreland); (b) the geological section through the Realmonte mine oriented E–W, and the well log which summarises all the rocks (mod. from CARG Sheet-636, Agrigento).
