CO₂ dissolution-diffusion in clay inhibitor/oil systems and synergistic CCUS-EOR effects in strongly water-sensitive reservoirs

Abstract

This study targeted a highly water-sensitive reservoir with high clay content (average 23.87%, mainly montmorillonite and illite), where waterflooding development induces hydration swelling of clay minerals, leading to pore-throat narrowing. The anti-swelling system and CO₂ were found to mitigate this phenomenon. The research investigated the dissolution, diffusion, and synergistic effects of CO₂ in the anti-swelling system/crude oil within the context of Carbon Capture, Utilization and Storage-Enhanced Oil Recovery (CCUS-EOR). Using the pressure decay method, core flooding experiments, microscopic visualization of oil displacement, and an improved mathematical model. We systematically investigated the influence of clay minerals on the balance between CO₂ storage and enhanced oil recovery (EOR). It was found that the diffusion coefficient of supercritical CO₂ increased rapidly and then levelled off with increasing pressure, which indicated that clay minerals hindered CO₂ diffusion. The anti-swelling system increases the effective pore connectivity by suppressing clay swelling, which increases the diffusion coefficient by 20–28%. The enhanced mathematical model combines the oil-water phase partition coefficients with the PR-EOS equation of state to accurately describe the multiphase interactions. The calculation results fit the experimental data by 92%, which is better than the traditional single-phase model. Through microscopic oil displacement experiments, core flooding tests, and quantitative analysis of full-cycle CO₂ saturation evolution. It is demonstrated that the sweep efficiency is anti-swelling system-CO₂ flooding is a higher sweep efficiency (73.95%) and achieves 58.12% oil recovery and 46.16% CO₂ sequestration efficiency in a core with a permeability of 102.95 × 10⁻³ μm². The full-cycle CO₂ saturation change rule was quantified, and the saturation cloud map was drawn. It is proven that the technology has the synergistic mechanism of ‘stabilising pore structure-reducing oil viscosity-efficient sequestration’, which combines significant oil recovery and carbon sequestration benefits, and provides theoretical and practical guidance for the low-carbon development of strong water-sensitive oilfields.

Introduction

With the rapid development of the global economy, the rapid consumption of fossil energy, and the continued emission of greenhouse gases, the world is facing a climate change crisis. The innovation and development of CCUS-EOR (Carbon Dioxide Capture, Utilisation and Storage with Enhanced Oil Recovery) technology^1,2,3,4,5 is crucial to guarantee the promotion of carbon emission reduction and carbon neutrality targets while ensuring the diversity of energy structure.

The development technology for gas injection in conventional sandstone reservoirs has been continuously refined and improved based on prior research findings. This has led to the establishment of a comprehensive technological system for carbon capture, utilization, and storage^6,7,8,9. Conventional CCS reservoirs are mainly targeted at porous rock formations, such as sandstones and carbonate aquifers, with predominantly primitive porosity^10,11,12. The search for potential CO₂ storage reservoirs has now expanded to non-traditional geological environments. Specifically, this includes carbonate reservoirs with naturally occurring fractures. Additionally, residual oil zones (ROZ) and shale reservoirs may also emerge as new CO₂ storage sites^13,14,15,16.

The strong water-sensitive reservoir studied in this paper is characterized by high clay mineral content and strong sensitivity to external fluids^13,14. The use of conventional water flooding is prone to induce hydration and expansion of clay minerals, reduce pore connectivity, and lead to an increase in injection pressure, which prevents the establishment of an effective flooding system. Unlike^15,16,17 which focused on traditional sandstones, this study targets reservoirs with high clay content and water-sensitive properties. Based on the swelling and instability of clays in porous media, the diffusion characteristics of CO₂ and its performance in displacing crude oil were further investigated. Although the properties of CO₂ can effectively avoid this negative effect of strongly water-sensitive reservoirs^18,19 the high content of clay minerals has a strong adsorption effect on CO₂, and the interaction effect between CO2 and the crude oil in the pore space is weakened, resulting in relatively low recovery and carbon sequestration efficiency^20,21,22. However, the synergistic effect of the anti-swelling system and CO₂ can achieve multiple effects of stabilising the pore space structure, enhancing the ability to replace crude oil, and reinforcing the effect of carbon sequestration. Sequestration effect. The synergistic effect of CO₂ and the anti-swelling system proposed in this study can simultaneously achieve enhanced crude oil recovery and carbon dioxide sequestration efficiency, providing a new idea for energy and environmental security.

CO₂ flooding offers unique advantages for water-sensitive reservoirs by avoiding clay hydration swelling, a critical limitation of conventional water flooding^5,23,24. Unlike water, CO₂ does not induce montmorillonite expansion, maintaining pore connectivity¹³. However, high clay content (23.87% average in this study) enhances CO₂ adsorption (2.35 mmol/g for montmorillonite^21,25), reducing diffusion efficiency by 40% compared to clay-free cores. Prior studies^8,26 focused on conventional sandstones, lacking insights into clay-CO₂ interactions in reservoirs where swelling-induced pore plugging reduces permeability¹⁴.

The reasons why the existing technology does not apply to the reservoir studied in this paper are as follows: ① The low mineralisation of low-mineralised water will lead to hydration and expansion of clay minerals in the pore channel and blockage of the seepage channel.② Micro and nano bubbles are with water as the continuous phase and CO₂ as the dispersed phase; the reason is similar to low mineralised water flooding.③ CO₂ viscosity enhancement technology has a limited viscosity enhancement effect, and the concentration of added chemical reagents and additives is high, and the cost increase is large; therefore, it is not considered.④ CO₂ foam flooding technology is applied to conventional sandstone reservoirs, which has a better effect of controlling the driving front and expanding the sweep efficiency, but the reservoir in this study has a high content of clay minerals, and the surfactant is adsorbed on the pore wall, which leads to a deterioration of the oil flooding effect. Previously, the main research direction for water-sensitive reservoir mining technology was to reduce the swelling effect between aqueous solution and clay by adding chemical additives^27,28,29. The synergistic development of CO₂ and anti-expansion aqueous solution has not been considered for the time being. As Table 1 shows, there is a lack of research on the relationship between CO₂ and the anti-swelling system, as well as the effect of enhanced oil recovery. Therefore, to achieve the purpose of both enhanced recovery and carbon sequestration efficiency, the dissolution law of different mixed fluids needs to be further supplemented.

Given the global imperative to maintain energy security while achieving carbon neutrality, implementing CCUS-EOR technologies in water-sensitive reservoirs remains an unresolved challenge. Traditional methods fail in formations with high clay content, where water flooding causes permeability reduction and CO₂ flooding alone exhibits low storage efficiency. This study fills critical gaps by: (1) quantifying how clay in porous media hinders CO₂ diffusivity; (2) investigating a synergistic anti-swelling/CO₂ system to restore pore connectivity; and (3) integrating a mathematical model that achieves consistency with experimental results, demonstrating higher accuracy than traditional approaches. The technology stabilizes pore structures in water-sensitive reservoirs, enhancing oil recovery and prolonging CO₂ breakthrough time. This not only advances the scientific understanding of clay-CO₂-oil interactions but also provides a practical roadmap for low-carbon development in other water-sensitive reservoirs.

Table 1 Example of carbon dioxide diffusion experiment.

Experimental component

Experimental materials

Experimental conditions: temperature 42 °C, reservoir pressure 10.5 MPa.

Experimental agents: potassium chloride, methanol, anhydrous ethanol, ethylene glycol, clay inhibitor, complex surfactant, etc. Clay inhibition system formulation: quaternary ammonium clay inhibitor 1% + polyethylene glycol + 0.3% non-ionic surfactant + 1% inorganic salt.

Experimental oil: crude oil. The saturation pressure is 5.16 MPa, the formation volume factor is 1.08, the viscosity is 17.64 mPa·s, the gas-oil ratio is 19.51 m³/t, the molecular weight of crude oil is 505.27, and the formation oil density is 0.803 g/cm³.

Experimental core: natural core of the target area (mainly siltstone or muddy siltstone, with an average clay content of 23.87%, mainly montmorillonite, ilmenite, and kaolinite; the water sensitivity index ranges from 88 to 98%). The permeability of the main oil reservoir is approximately 10 × 10⁻³ µm². Core parameters are shown in Table 2.

Experimental water: The anti-swelling system consists of 1% polyethylene glycol + 0.3% non-ionic surfactant + 1% inorganic salt stabilizer. The performance of the anti-swelling system is shown in Table 3. The formulation of the simulated formation water is listed in Table 4.

Experimental gas: simulated natural gas and CO₂ (purity 99.9%), as shown in Table 5.

Table 2 Physical properties of the reservoir.

Table 3 Clay inhibitor anti-swelling effect.

Table 4 Brine ion content (mg/L).

Table 5 Natural gas fractions.

Apparatus

Thermostatic box, high-pressure diffusion bucket, HTP-3 A high-temperature and high-pressure expansion instrument, TGL-16G high-speed centrifuge, high-temperature and high-pressure PVT, ISCO pump, pressure-resistant intermediate vessel, gas-liquid separator, gas chromatography/mass spectrometer, back pressure valve, one-way valve, Brinell viscometer, beaker, measuring cylinder, etc.

Methods

Dissolution diffusion experiment

The diffusion coefficient of CO₂ was measured using a PVT cylinder via the pressure decay method, with calculations based on Fick’s second law to characterize mass transport behavior in porous media. The experimental design aimed to replicate in-reservoir conditions for accurate diffusion parameterization, as follows: (1) Transfer fluids into the PVT cell in proportion according to the experimental protocol, and heat the cell to reach the reservoir pressure and temperature conditions. (2) Transfer the prepared gas sample into the upper part of the PVT cell from the top using an equilibrium sample transfer method to prevent convective mixing during the transfer process. (3) Conduct the diffusion experiment and record the data on time and pressure. The experiment is considered complete when the pressure change is less than 0.1 MPa within 1 h. (4) Press the fluids in the PVT cell into a flash separator, and record the volumes of the liquid and gas phases, respectively. (5) Calculate the solubility, summarize the data, and plot graphs.

The temperature of the high-pressure physical properties analyser was kept constant at 42 °C, a quantitative amount of M₀ liquid was injected into the PVT cylinder of the analyser in vacuum, CO₂ was injected into the PVT cylinder, and stirring under pressure caused the gas to dissolve in the liquid, and the dissolved gas-liquid ratio was calculated using the formula GOR = V_g/M_o. Simulated high-salinity water was prepared by dissolving reagents⁴⁰including NaCl, CaCl₂, MgCl₂, and so on. With a total salinity of 7260 mg/L. The ionic composition is presented in Table 4. The preparation of the anti-swelling system was described in the experimental water section of Sect. 1.1.

Dissolution and diffusion experiment in rock core

Diffusion experiments were performed on core samples under varying pressures, oil saturations, and permeabilities to characterize CO₂ transport behavior in reservoir conditions. The experiments were designed to isolate the effects of key reservoir parameters on diffusion kinetics, with core samples sourced from low-permeability formations featuring high clay content. The average permeability of the core is about 10 × 10⁻³ µm²_, and the porosity is about 15–16%. The experimental steps are as follows: (1) Arrangement of the cores based on gas permeability and arrangement formulae. (2) Vacuuming with a vacuum pump for more than 6 h, saturating the core with 3% KCL brine, and measuring pore volume and permeability. (3) Formation of crude oil compounding with high temperature and high pressure PVT under reservoir conditions. (4) Saturate and age the formation crude oil under reservoir conditions and calculate initial oil saturation, bound water saturation, and gas-oil ratio. (5) Open the connecting valves of the CO₂ high-pressure vessel and core gripper and collect data through the pressure sensor. The pressure measurement precision was 0.01 MPa, and the time measurement precision was 0.1 s. (6) End the experiment when the diffusion process reaches a steady state, release the pressure in sections, and disassemble and clean the experimental setup. (7) Calculate the dissolved diffusion coefficient of CO₂ based on Fick’s second law and summarise the experimental data.

Fick’s second law states that in unsteady-state diffusion, the rate of change of concentration with time at a distance x from the gas-liquid interface in the liquid phase is equal to the negative of the spatial derivative of the diffusion flux, described by the equation:$\:\:\frac{\partial\:C}{\partial\:t}=-\frac{\partial\:}{\partial\:x}\left(D\frac{\partial\:C}{\partial\:x}\right)$. Here, C denotes concentration, t is time, x is the spatial coordinate, and D represents the diffusion coefficient. The law mathematically links the temporal evolution of concentration to the spatial gradient of diffusive flux, emphasizing the non-steady nature of mass transport processes. The effective diffusion coefficient(D_eff) is described by the equation: $\:{D}_{eff}=\frac{\varnothing\:}{\tau\:}D$, where ∅ is the porosity, τ is the tortuosity, and D is the diffusion coefficient.

Microscale oil displacement experiment

Microscopic visualization experiments were designed to investigate the dynamic mechanisms of fluid transport at the pore scale, aiming to elucidate the influence of pore structure and fluid properties on displacement efficiency. Such experiments enable direct observation of fluid flow paths and interfacial interactions under controlled conditions, providing mechanistic insights into multiphase flow behavior in porous media. The experimental steps are as follows: (1) Make a microscopic model with an injection end and a withdrawal end at the diagonal edges⁴¹. (2) Dry the microscopic model and then saturate the simulated formation water with a microsyringe pump, and then saturate the simulated oil, avoiding a large number of bubbles in the saturation process. (3) According to the programme, inject the microscopic model at a constant rate, and observe the micro-seepage process of the collection system in real time, and the injection rate is 0.01 mL/min. (4) According to the changes of crude oil morphology in the microscopic model at different time stages, analyse and summarize the replacement characteristics of different injection systems. The photolithographic glass micromodel used in the experiment had a planar dimension of 10 cm × 10 cm, a thickness of 0.2 cm, and a pore volume of 2 mL.

Study of synergistic effects of enhanced recovery and carbon sequestration

Long-core flooding experiments using natural core samples were conducted to evaluate the dynamic recovery performance of different injection strategies under reservoir conditions, aiming to simulate crude oil mobilization in real reservoir environments and ensure data consistency with field-scale processes. The experimental procedure is shown in Fig. 1.Cores with similar physical properties in the target block were selected and arranged into long cores of about 1 m length according to the arrangement formula⁴².(1)Place the core into the holder, and put a screen at the arrangement place to reduce the end face effect.(2)Vacuum the core and saturate it with formation water, calculate the pore volume of the core, and leave it at a constant temperature for 24 h.(3)Saturate the formation crude oil, calculate the saturated oil volume and oil saturation degree, and age at constant temperature for 24 h after saturation.(4)Set the ISCO pump to constant flow mode, with a flooding rate of 0.1 mL/min, and set the back pressure at the outlet end to the formation pressure⁴³.(5)Carry out oil expulsion experiments in different ways according to the design of the experimental scheme, record the data, analyse the changes in the degree of extraction during the expulsion process, stop the experiment when the water content reaches 98% or the gas-oil ratio reaches 1500m³/m³, and draw the dynamic change curve⁴⁴.

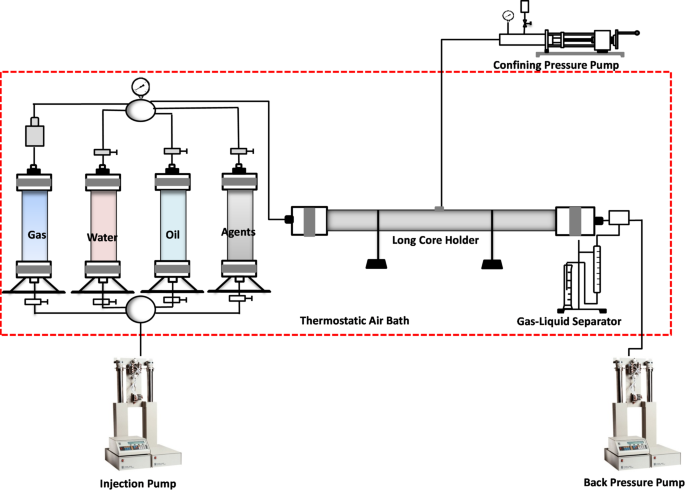

Fig. 1

Process of displacement experiment.

Results and discussion

CO₂ dissolution and diffusion law experiment

Solubility of single-phase fluids

Since the reservoir studied in this paper is a sandstone reservoir with high clay content, it has certain special characteristics. The interaction between the reservoir and the aqueous solution results in the phenomenon of hydration and expansion, which changes the pore structure of the reservoir, leading to a greater resistance to seepage and the inability to establish an effective flooding system. Therefore, the aqueous solution used in this study is an anti-swelling system. Firstly, the single-phase solubility of reservoir crude oil, brine, and anti-swelling system was separately explored in a high-temperature and high-pressure PVT reactor. Then, different water-bearing phases of the reservoir were simulated to compare the CO₂ solubility under different oil-water and oil-agent ratio conditions.

From the experimental results in Fig. 2, three key insights were derived with explicit links to enhanced oil recovery (EOR) and CO₂ sequestration objectives: First, the solubility of CO₂ in all three fluids (oil, anti-swelling system, brine) increased with pressure, but the magnitude differed significantly. Solubility comparisons among three fluid phases revealed that the CO₂ solubility in oil, brine, and the anti-swelling system was 6.346, 0.875, and 1.232 mol/L, respectively. The experimental results were consistent with previous studies^30,33,35. This trend directly supports EOR feasibility: the high CO₂ solubility in oil promotes in-situ viscosity reduction (by 35–40%)²⁴, enhancing fluid mobility and sweep efficiency. The preferential dissolution in hydrocarbons also facilitates oil swelling, which expands the oil phase volume and improves displacement efficiency in pore throats. Second, analyzing the phase behavior at Psc revealed that CO₂ solubility in the anti-swelling system exceeded that in brine by 39.6%. This enhancement is attributed to the system’s organic components (e.g., polyethylene glycol), which disrupt water molecular clusters and create more favorable microenvironments for CO₂ dissolution. For sequestration, this higher solubility implies greater CO₂ storage capacity in the aqueous phase, particularly in clay-stabilized pores where the anti-swelling system maintains pore connectivity. Third, the solubility growth rate slowed in all fluids at elevated pressures, indicating approaching saturation. For practical applications, this suggests an optimal pressure window (10–15 MPa) where CO₂ dissolution efficiently balances oil viscosity reduction and sequestration capacity. The plateau in solubility also highlights the importance of alternating injection strategies to maximize CO₂ utilization before breakthrough.

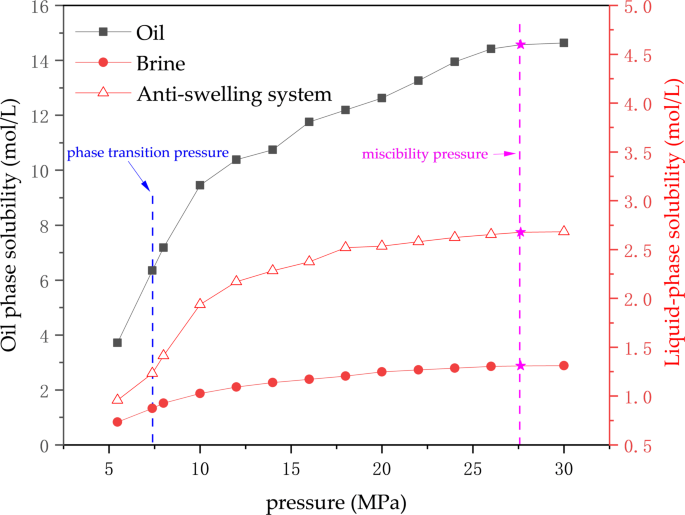

Fig. 2

Comparison of the solubility of brine, anti-bulking agent, and crude oil.

These findings directly address the study’s dual objectives: the high oil solubility drives EOR via viscosity modification, while the anti-swelling system’s enhanced CO₂ retention supports long-term sequestration by stabilizing pore structures. The results align with prior studies^45,46,47 and provide a scientific basis for optimizing CO₂ flooding in water-sensitive reservoirs.

Solubility under oil/water coexistence conditions

In order to simulate the actual conditions of the reservoir, and considering the enhanced recovery and carbon sequestration synergy (CCUS-EOR) development approach, the experimental programme was designed to experiment with the CO₂ dissolution of crude oil/brine and crude oil/system at different ratios.

Two conclusions can be drawn from Fig. 3, The first is that under the same ratio of oil and water solution, with the increase of pressure, both mixed solutions show the trend of increasing and then levelling off, and the CO₂ solubility of oil/system is higher than that of oil-water medium.

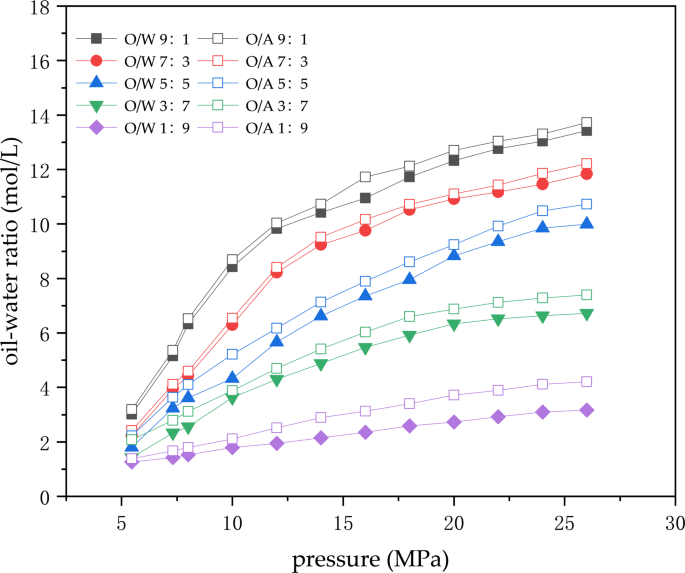

Fig. 3

Solubility comparison of mixed fluids (O/W and O/A denote the oil-water and oil-agent ratios, respectively).

Secondly, the difference between the two mixed solutions at different ratios of oil/water solution was compared, and it was found that as the ratio of oil in the mixed solution decreased, the CO₂ solubility decreased. However, the aqueous phase in the two mixed solutions is two media in which the proportion of the liquid phase increases as the oil ratio decreases, and the CO₂ solubility in the liquid phase increases. It was found that the difference in solubility between the two mixed liquids was maximum when the oil-water ratio was 1:9.

Dissolution and diffusion laws of CO₂/anti-expansion water in porous media

The present study compares the effects of pressure (5.61–27.53 MPa), oil saturation (0-50.16%) and permeability (4.68-210.14 × 10⁻³ µm²) on the SC-CO₂ diffusion coefficient under reservoir conditions. The cores used in the experiments were natural sandstone cores with similar physical properties from the same block, and the experimental programme was designed using the controlled variable method to compare the effects of single variables⁴⁸.

Clay mineral

The diffusion coefficients of cores with different clay mineral contents (artificial core, Berea Sandstone Core, and Natural core) were measured to investigate the effects of different clay mineral types and contents on the dissolution diffusion coefficients.

As shown in Fig. 4 (a), the post-treatment core samples exhibit expanded pores, which enhance the CO₂ adsorption capacity. Figure 4 (b) compares the enhanced CO₂ diffusion coefficients of cores with different clay contents after treatment, revealing an increase of approximately 20–28%. This further demonstrates that the presence of clay restricts the diffusion properties of CO₂ in pores, a phenomenon attributed to pore structure modification and subsequent CO₂ adsorption.

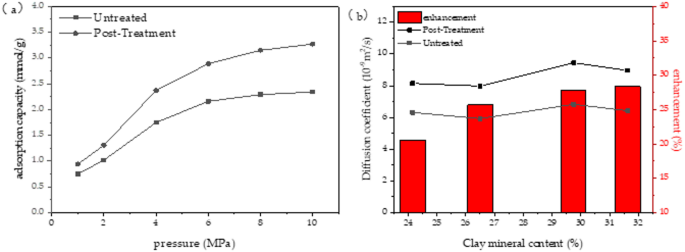

Fig. 4

Properties of core samples before and after treatment. (a) Adsorption capacity. (b) Diffusion coefficient.

As demonstrated in Table 6, the diffusion capability of CO₂ is found to decrease with an increase in clay mineral content. The diffusion coefficient of CO₂ in the man-made core is determined to be 17.032 × 10⁻⁹m²/s, with no alteration in the pore structure and no adsorption of CO₂ by the clay. Conversely, the clay mineral content of the Berea sandstone core and the natural core exhibited an increase to 13.72% and 25.36%, respectively. The diffusion coefficients were found to be 11.463 × 10⁻⁹m²/s and 9.226 × 10⁻⁹m²/s, attributed primarily to alterations in the pore structure and the adsorption of CO₂ by the clay. The values of 11.463 × 10⁻⁹m²/s and 9.226 × 10⁻⁹m²/s are attributed to the increase in clay mineral content, which is dominated by kaolinite (57.68%) and illite (31.15%) in the Berea sandstone core. The natural cores in the study area are dominated by montmorillonite (60.37%) and kaolinite (28.58%). Notably, these measurements were conducted under equilibrated oil-water saturations (50.16–52.29% oil), where CO₂ exhibited a higher solubility in oil (6.346 mol/L) than in water (0.875 mol/L), as depicted in Fig. 2. This solubility disparity established a concentration gradient favorable for diffusion through oil-wet pores. At 50% oil saturation, the oil phase served as the primary CO₂ transport pathway, with the diffusion coefficient an order of magnitude higher than that under water-wet conditions (Fig. 5).

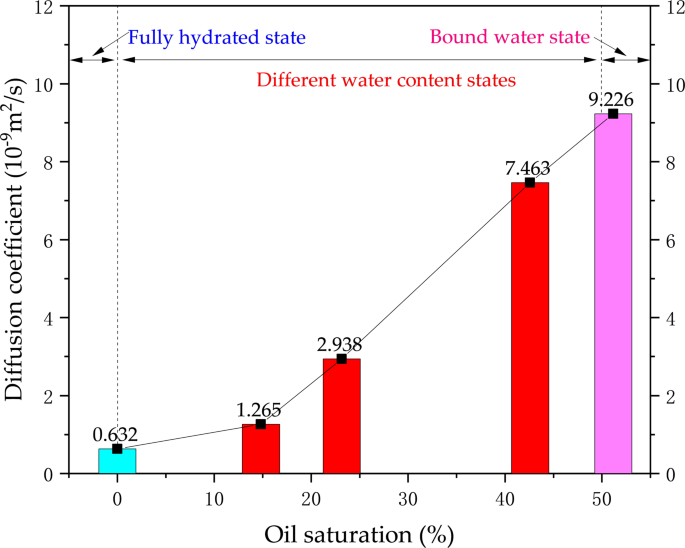

Fig. 5

Dissolved CO₂ diffusion coefficients at different oil saturations.

Table 6 CO₂ dissolution coefficients in cores with different clay content.

Injection pressure

The first set of experiments investigated the variation law of diffusion coefficient at different pressures (5.61 ~ 27.53 MPa), as shown in Fig. 6. The PSC was used as the boundary to divide the pressure into gaseous and supercritical states. Two conclusions were drawn from the experimental results: (1) the diffusion coefficient increased rapidly from 2.152 (×10⁻⁹m²/s) to 6.497 (×10⁻⁹m²/s) when increasing from saturation pressure (the first set of data) to critical pressure (the second set of data). This phenomenon can be explained by the change of CO₂ phase state, when the saturation pressure when the CO₂ is gaseous, pressurisation to the phase transition pressure when the transition to the supercritical state, so when the CO₂ injection pressure increases, the density of CO₂ molecules increases, which leads to an increase in the diffusion of the mass of the gas, the gas solubility of the stratum fluid to improve. (2) The growth rate of the CO₂ diffusion coefficient gradually slows down when the pressure continues to rise. This is because the amount of dissolved CO₂ in the reservoir fluid tends to be saturated, resulting in a slowdown in the growth rate⁴⁹.

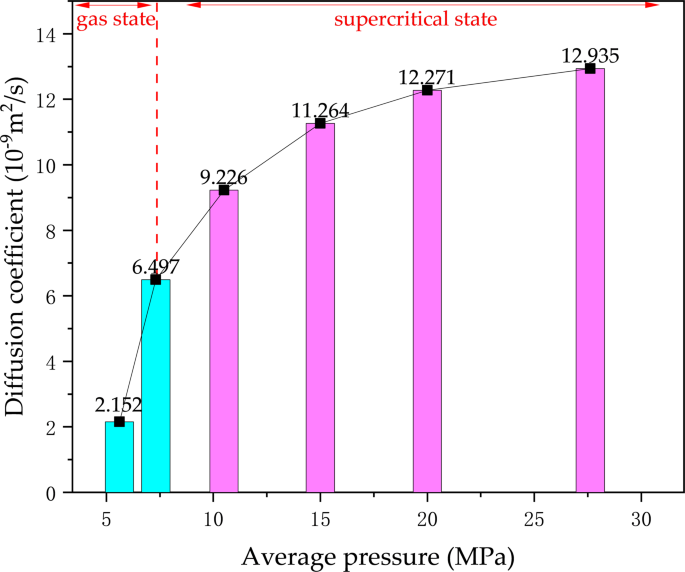

Fig. 6

Dissolved diffusion coefficient of CO₂ at different pressures.

Oil saturation

Two results can be summarised from Fig. 5: (1) The diffusion coefficient of CO₂ in porous media increases significantly with the increase of oil saturation. Oil saturation is achieved by fixing the injection rate and implementing simultaneous injection with different oil-water ratios⁵⁰. Since crude oil is a mixture of various liquid hydrocarbons such as alkanes, naphthenes, aromatic hydrocarbons, and olefins, the solubility of supercritical CO₂ in crude oil is much higher than that in brine. Therefore, the diffusion coefficients in the cores in the oil-bearing state are all one order of magnitude higher than those in the non-oil-bearing cores. (2) Different oil content in porous media corresponds to different stages of reservoir water injection development. The CO₂ dissolution is extremely small when the water is completely contained. With the increasing oil/water ratio, the content of CO₂ dissolved in crude oil continues to increase. In the bound water state, the crude oil content in the porous medium reaches the maximum, and the crude oil mainly exists in the large pores. The interaction space with CO₂ reaches the limit, and the gas diffusion coefficient reaches the maximum.

Permeability

From Fig. 7, it can be observed that the diffusion coefficient of CO₂ in the porous medium continues to grow with the increase of the permeability of the core. The diffusion coefficient grows rapidly from type 1 (extra-low permeability core TypeI, 5-10mD) to type 2 (low permeability core TypeII, 10–100 mD). The growth trend of diffusion coefficient continues to type3 (medium permeability core typeIII>100mD) is gradually stabilised. The reason for this is that with the increase of permeability, the pore distribution of the cores gradually becomes larger, and the tortuosity factor decreases significantly, which makes supercritical CO₂ easier to be transported in the porous medium.

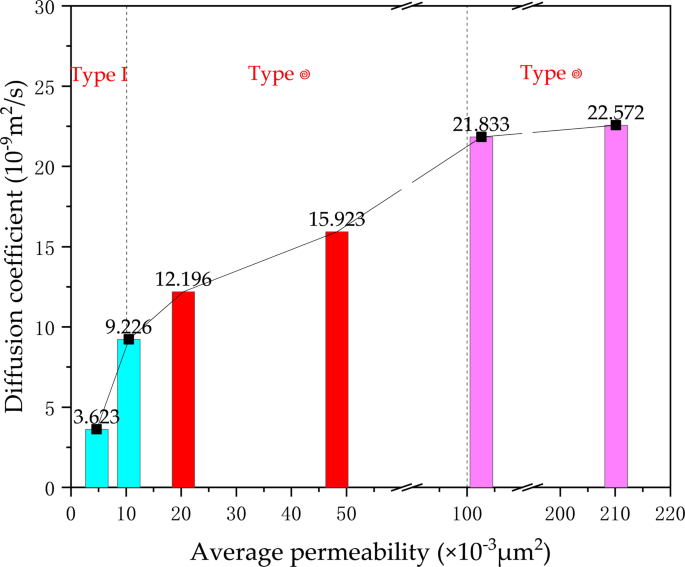

Fig. 7

Dissolved CO₂ diffusion coefficients of cores with different permeabilities.

Development of mathematical models for CO₂ diffusion coefficient

The assumptions made on the mathematical model are as follows. (1) capillary forces and gravity are not considered; (2) the fluid is incompressible during the flow; (3) the cores used for the experiment are homogeneous and isotropic, with oil and water uniformly distributed in the cores; (4) the diffusion coefficient of CO₂ in the cores is constant during measurements; (5) the concentration of CO₂ in the liquid phase is constant during measurements; (6) natural convection due to the difference in fluid density is neglected; ((7) Evaporation from the liquid phase to the gas phase is neglected; (8) Immiscibility of the oil and liquid phases during the measurement.

Based on the above assumptions, a mathematical description of CO₂ diffusion in the physical model under non-expansive conditions can be obtained from Fick’s first law and the continuity Eqs. 5^1,53, as shown in Eq. 1.

$$\:\frac{\partial\:c}{\partial\:t}={D}_{\text{e}\text{f}\text{f}}\times\:\frac{1}{r}\times\:\frac{\partial\:}{\partial\:r}\left(r\frac{\partial\:c}{\partial\:r}\right)$$

(1)

At the instant when CO₂ injection begins, the gas phase does not immediately dissolve into the liquid phase, so the initial conditions for the diffusion process are shown in Eq. (2).

$$\:\complement\:\left(r,t\right){|}_{t=0}=0,\left(0<r<{r}_{0}\right)$$

(2)

The boundary constraints are shown in Eq. 3.

$$\:D\frac{\partial\:C}{\partial\:r}{|}_{r={r}_{0}}=K\left[{C}_{eq}-\complement\:\left(r,t\right){|}_{r={r}_{0}}\right],\text{t}\ge\:0$$

(3)

Where Ceq is the CO₂ concentration at the equilibrium pressure Peq; K is the mass transfer coefficient at the gas-liquid interface, which is also the resistance to mass transfer at the gas-liquid interface.

By introducing the time $\:{\uptau\:}=\text{t}/\left({D}_{eff}/{r}_{0}\right)$, the length $\:{\stackrel{-}{r}=r/r}_{0}$ the velocity $\:\stackrel{-}{\text{u}}=u/\left({D}_{eff}/{r}_{0}\right)$, and the concentration $\:\stackrel{-}{c}=\left(c-{c}_{i}\right)/\left({c}_{0}-{c}_{i}\right)$. The partition coefficients for the concentration of CO₂ in the oil and water phases are expressed as $\:{\text{k}}_{\text{p}\text{c}\text{o}}$ and $\:{\text{k}}_{\text{p}\text{c}\text{w}}$. A new set of dimensionless variables is defined.

$$\:\partial\:\frac{\stackrel{-}{c}}{\partial\:\tau\:}+{\text{k}}_{\text{p}\text{c}\text{o}}\times\:\stackrel{-}{c}\partial\:\frac{\stackrel{-}{c}}{\partial\:\stackrel{-}{r}}+{\text{k}}_{\text{p}\text{c}\text{o}}\times\:\frac{\stackrel{-}{cu}}{\stackrel{-}{r}}+{\text{k}}_{\text{p}\text{c}\text{w}}\times\:\stackrel{-}{c}\partial\:\frac{\stackrel{-}{c}}{\partial\:\stackrel{-}{r}}+{\text{k}}_{\text{p}\text{c}\text{w}}\times\:\frac{\stackrel{-}{cu}}{\stackrel{-}{r}}+\lambda\:\partial\:\frac{\stackrel{-}{c}}{\partial\:\stackrel{-}{r}}=\frac{{\partial\:}^{2}\stackrel{-}{c}}{\partial\:{\stackrel{-}{r}}^{2}}$$

(4)

The boundary conditions simplify to Eq. 5.

$$\:\left\{\begin{array}{c}\stackrel{-}{u}=0,\partial\:\frac{\stackrel{-}{u}}{\partial\:\stackrel{-}{r}}=0,\left(\tau\:>0,\stackrel{-}{r}=0\right)\\\:\stackrel{-}{c}=1,\left(\stackrel{-}{r}=1,\tau\:>0\right)\end{array}\right.$$

(5)

The initial conditions simplify to Eq. 6.

$$\:\left\{\begin{array}{c}\stackrel{-}{u}=0,\stackrel{-}{c}=0,\left(\tau\:=0,\stackrel{-}{r}<1\right)\\\:\stackrel{-}{u}=0,\stackrel{-}{c}=1,\left(\tau\:=0,\stackrel{-}{r}=1\right)\end{array}\right.$$

(6)

In this study, the fully implicit finite difference method is used in the solution process. The differential equations are discretised into a system of difference equations and solved iteratively. In the discretisation process, the first and second order derivatives of concentration and velocity concerning displacement are in centre difference format; the first order derivatives of time are in forward difference format. The concentration and velocity distributions were calculated for each time step by the continuous displacement method. The iterative calculations were repeated until the maximum relative error was less than the error tolerance of 10⁻⁴ set in this study.

$$\:{a}_{i}{\stackrel{-}{c}}_{i-1}^{n+1}+{b}_{i}{\stackrel{-}{c}}_{i}^{n+1}+{e}_{i}\cdot\:{\stackrel{-}{c}}_{i+1}^{n+1}={\stackrel{-}{c}}_{i}^{n},\left(i=\text{0,1},\text{2,3}\dots\:,I\right)$$

(7)

Where the parameters are shown in Eq. 8.

$$\:\left\{\begin{array}{c}{a}_{i}=-\frac{{\Delta\:}{\uptau\:}}{{\Delta\:}{\stackrel{-}{r}}^{2}}-\frac{{\Delta\:}{\uptau\:}}{2{\Delta\:}\stackrel{-}{r}}{\stackrel{-}{u}}_{i}^{n+1}\\\:{b}_{i}=1+\frac{2{\Delta\:}{\uptau\:}}{{\Delta\:}{\stackrel{-}{r}}^{2}}+\frac{{\Delta\:}{\uptau\:}}{2{\Delta\:}\stackrel{-}{r}}\left({\stackrel{-}{u}}_{i+1}^{n+1}-{\stackrel{-}{u}}_{i-1}^{n+1}\right)\\\:{e}_{i}=-\frac{{\Delta\:}{\uptau\:}}{{\Delta\:}{\stackrel{-}{r}}^{2}}+\frac{{\Delta\:}{\uptau\:}}{2{\Delta\:}\stackrel{-}{r}}\times\:{\stackrel{-}{u}}_{i}^{n+1}\end{array}\right.$$

(8)

Once the CO₂ concentration field is determined, the velocity field equation can be solved.

$$\:{\stackrel{-}{u}}_{i+1}^{n+1}=\frac{{\stackrel{-}{r}}_{i}\cdot\:{\Delta\:}\stackrel{-}{r}}{({\stackrel{-}{r}}_{i}+{\Delta\:}\stackrel{-}{r})\cdot\:{\Delta\:}\tau\:}F\left(c\right){c}_{0}{\varnothing}\times\:\frac{\left({c}_{i+1}^{n+1}+{c}_{i}^{n+1})-({c}_{i+1}^{n}+{c}_{i}^{n}\right)}{2}$$

(9)

Starting from the real gas equation of state and the law of mass conservation, the gas amount lost in the gas phase of the diffusing component and the gas amount entering the liquid phase were determined. The true gas state equation is shown in Eq. 10.

$$\:\text{P}\text{V}=\text{n}\text{R}\text{T}$$

(10)

Where p denotes the gas pressure, V the gas volume, n the amount of substance, T the temperature, and R the gas constant.

The amount of CO₂ reduced in the Gas Phase, Δn_t is obtained by calculating the equation of state of the gas to get the amount of CO₂ reduced in the Gas Phase from the initial state of the real gas to a given time in the state (p_t, t_i), which gives Eq. 11.

$$\:{\Delta\:}{n}_{g}={n}_{o}-{n}_{t}=\frac{1}{RT}\left(\frac{{P}_{o}{V}_{o}}{{Z}_{o}}-\frac{{p}_{t}{V}_{t}}{{Z}_{t}}\right)=\frac{{\Delta\:}{P}_{o}V}{ZRT}$$

(11)

From the law of conservation of mass and the real gas equation of state, the reduction of CO₂ in the gas phase is equal to the diffusive flux through the interface, which gives Eq. (11).

$$\:{\Delta\:}P=\frac{qZRT-\varDelta\:V{P}_{o}}{V-\varDelta\:V}$$

(12)

Where Z is the gas deviation factor, R is the gas constant, T is the absolute temperature, P_o is the initial pressure of the gas before diffusion, ∆V is the volume reduction of the gas phase, and q is the amount of gas lost in the gas phase at time t. Notably, q was obtained by deriving the pressure-time relationship through the pressure decay method, followed by calculation via the gas state equation (Eq. 10).

The diffusion coefficient (D) was extracted from pressure decay data using a modified Fick’s second law approach, combining real gas behavior and mass conservation principles.

The rate of CO₂ loss from the gas phase equals the diffusive flux through the interface.

$$\:\frac{{d}_{ng}}{dt}=-D\cdot\:A\cdot\:\frac{{d}_{c}}{{d}_{r}}{|}_{r={r}_{0}}$$

(13)

Where A = πr2 is the interface area, r0 is the core radius, and $\:\frac{{\text{d}}_{\text{c}}}{{\text{d}}_{\text{r}}}{|}_{\text{r}={\text{r}}_{0}}$ is the concentration gradient at the interface.

Assuming equilibrium at the interface, the concentration gradient is approximated as Eq. 14.

$$\:\frac{{\text{d}}_{\text{c}}}{{\text{d}}_{\text{r}}}{|}_{\text{r}={\text{r}}_{0}}\approx\:\frac{{\text{C}}_{\text{e}\text{q}}-{\text{c}}_{0}}{{\text{r}}_{0}}$$

(14)

where Ceq is the equilibrium CO₂ concentration (mol/m³) at pressureP(t), and C0 is the initial concentration in the liquid phase.

Substitution and simplification yield the final diffusion coefficient equation as shown in Eq. 15.

$$\:\text{D}=\frac{\text{R}\text{T}{\text{r}}_{0}}{{\text{V}}_{\text{g}}{\text{P}}_{0}}\cdot\:\frac{{\text{d}}_{\text{P}}}{\text{d}\text{t}}\cdot\:\frac{1}{{\text{C}}_{\text{e}\text{q}}-{\text{c}}_{0}}$$

(15)

Where D is the diffusion coefficient, P0 is the initial pressure, $\:\frac{{\text{d}}_{\text{P}}}{\text{d}\text{t}}$ is obtained by fitting the pressure decay curve with a first-order exponential function.

The simulation was conducted using custom code and validated by comparison with CMG software, with the prediction deviation of the diffusion coefficient being less than 5%. 11 is used to match the experimentally measured pressure drop ∆P_Exp and t_1⁄2 curve to determine the diffusion coefficient of CO₂ in the oil-water coexistence state in the porous medium. The base physical properties of formation water and injection water in the low-permeability strong water-sensitive rock reservoir studied in this paper are quite different, so the oil-phase and liquid-phase partition coefficients are introduced during the mathematical model solving process to consider the difference of dissolution and diffusion when the two-phase fluids coexist, which is closer to the actual situation. Based on the double-constant cubic equation of state, the interaction of the material system and the phase equilibrium is taken into account, improving the diffusion coefficient’s calculation accuracy.

This numerical model introduces three new technologies, addressing key issues in traditional single-phase diffusion models and validated by experimental data (Table 6; Fig. 8).

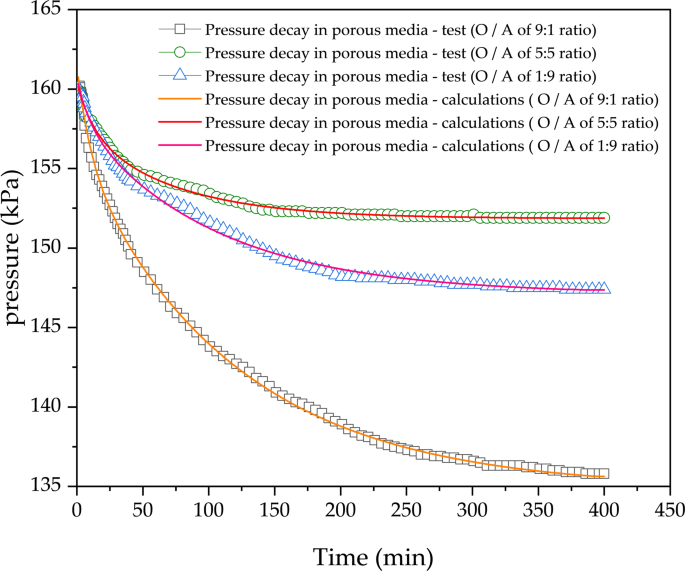

Fig. 8

Experimental and computational numerical fitting.

• 1. Two-phase partition coefficient framework: For the first time, oil-water partition coefficients were integrated to describe CO₂ mass transfer between phases, a critical oversight in previous studies. These coefficients quantify CO₂ dissolution partitioning under oil-water coexistence and were derived from PVT experiments (Fig. 2), showing that CO₂ solubility in oil is 7.25 times higher than in water. Thus, the model accurately predicts multiphase diffusion in water-sensitive reservoirs, aligning more closely with actual reservoir conditions compared to single-phase models.

• 2. Clay adsorption correction term: A clay-CO₂ adsorption term was added to Fick’s law (Eq. 4) to account for the high adsorption capacity of montmorillonite, capturing CO₂ retention on clay surfaces. The model predicts diffusion coefficients with 92% accuracy compared to experiments (Fig. 8), a 15% improvement over models ignoring adsorption.

Synergistic effects of enhanced recovery and carbon sequestration potential

Microscopic visualisation studies

Through visualized microscopic oil displacement experiments in glass micromodels, we systematically analyzed displacement mechanisms and remaining oil distribution under reservoir conditions (42 °C, 15 MPa). The microdynamic mechanisms of the anti-swelling system/CO₂ flooding were elucidated, and the characteristics of remaining oil distribution under original reservoir conditions were quantified. Quantitative analysis results of residual oil morphology are shown in Fig. 9. Two conclusions can be drawn from the experimental results: firstly, the sweep efficiency of the CO₂ flooding (42.19%) is much smaller than that of the anti-swelling system/CO₂ flooding (73.95%). The reason is that CO₂ has a faster breakthrough rate in the pore space, CO₂ mainly exists in a continuous form, and the fluid flushing area shows a block division phenomenon, which has a poorer oil washing effect. The flow resistance formed by the anti-swelling system/CO₂ flooding slows down the CO₂ advancement, so that the subsequent CO₂ entering the pore space is diverted to enter the small pore space that has not been reached, thus enlarging the area of reach and prolonging the interaction time with the crude oil, as shown in Fig. 10.

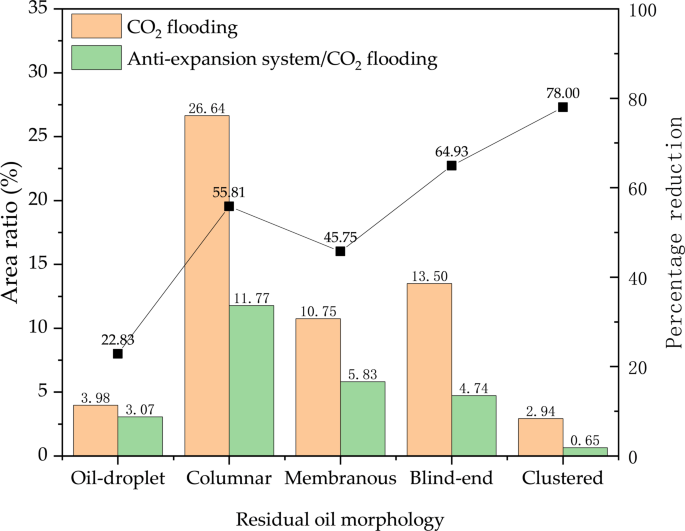

Fig. 9

Residual oils of different types.

Fig. 10

Micro-visualisation of flooding. (a) CO₂ flooding. (b) Anti-swelling system/CO₂ alternating flooding.

Secondly, the ratio columns of five different forms of residual oil (Oil-droplet, Columnar, Membranous, Blind-end, and Clustered) were quantified. It was found that the area of clustered residual oil decreased by 78%, the most significant reduction among all types; columnar, film-like, and blind-end oils decreased by 45–65%, while droplet-shaped oil remained relatively unchanged. This demonstrates that the dual-medium system balances capillary trapping (via anti-swelling agents) and viscosity reduction (via CO₂ dissolution), achieving dual effects of expanding sweep efficiency and enhancing oil displacement efficiency. This synergistic effect increased oil recovery efficiency by 23.61%, with results consistent with core flooding data (Fig. 11(b)).

Enhanced oil recovery and carbon sequestration potential

By analyzing the dynamic performance of different injection strategies (continuous CO₂, water-alternating-gas (WAG), and anti-swelling system-alternating-gas (ASAG)) as shown in Fig. 11, the synergistic mechanisms of CO₂ sequestration and oil recovery were elucidated with explicit mechanistic insights:

1. CO₂ Sequestration-EOR Trade-off Analysis.

Continuous CO₂ injection achieved the highest sequestration efficiency (49.70%) but only 35.64% oil recovery, attributed to rapid gas breakthrough (Fig. 11a-b). In contrast, ASAG injection increased oil recovery to 58.12% with a marginal 3.54% reduction in sequestration efficiency (46.16%). This synergy arises from two mechanisms: The anti-swelling system inhibited 94.09% of clay swelling, maintaining pore connectivity and enhancing CO₂ diffusion by 20–28% (Table 4). This enabled deeper CO₂ penetration into fine pores, releasing clustered residual oil (78% reduction in clustered oil area, Fig. 9). Additionally, alternating injection prolonged CO₂-rock contact time by 0.17 PV, increasing in-situ CO₂ dissolution in oil and promoting viscosity reduction, thereby improving sweep efficiency (73.95% vs. 42.19% for continuous CO₂, Fig. 10).

2. Pressure Dynamics and Seepage Mechanisms.

Water flooding induced 19.3% higher injection pressure than ASAG due to clay lattice expansion narrowing pore throats. The ASAG system mitigated this via multicomponent synergism of the anti-swelling system: clay inhibitors neutralized surface negative charges through cation adsorption, inorganic salts compressed the double electric layer via ionic strength, non-ionic surfactants improved wettability, and ethylene glycol reduced water activity through hydrogen bonding to decrease water penetration drive. Additionally, dissolved CO₂ enhanced oil mobility by lowering viscosity, enabling better displacement of residual oil in micro-throats.

3. Gas-Oil Ratio (GOR) Evolution.

ASAG injection delayed CO₂ breakthrough by 0.17 PV compared to continuous CO₂ (Fig. 11d), indicating more uniform CO₂ distribution. Full-cycle saturation maps (Fig. 12) confirmed 15–20% higher CO₂ saturation at the production end for ASAG, reflecting improved sweep uniformity in clay-rich zones.

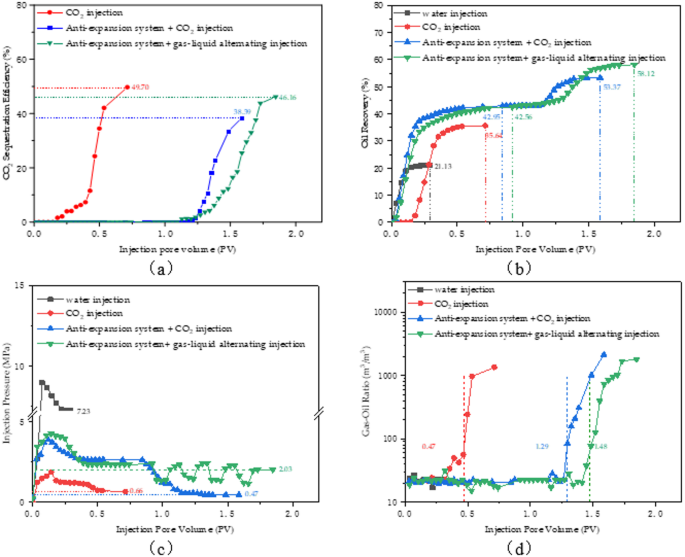

Fig. 11

Production performance curves of different injection patterns (a) Relationship between CO₂ sequestration efficiency and injection patterns (b) Relationship between oil recovery efficiency and injection patterns (c) Dynamic variation law of injection pressure differential (d) Dynamic variation curve of gas-oil ratio (GOR).

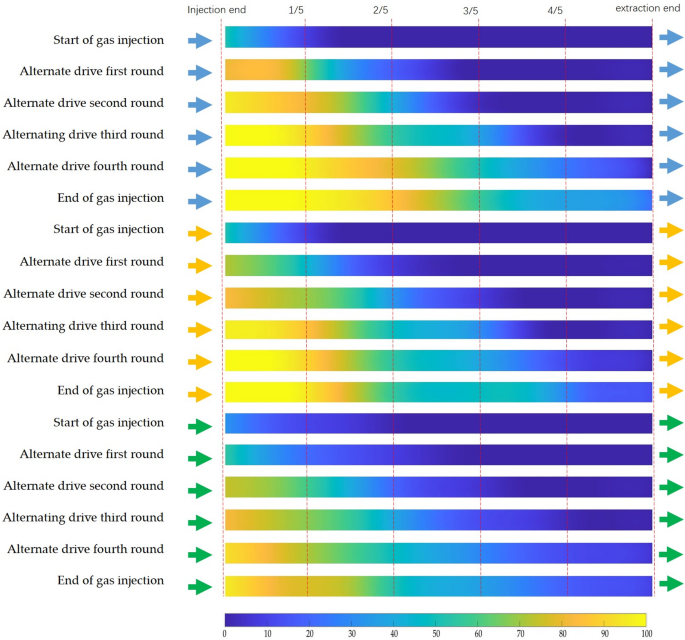

Fig. 12

Variation of CO₂ concentration along the course of cores with different (Permeabilities of 102.75, 42.71, and 10.15 × 10⁻³ µm² are labelled with blue, yellow, and green arrows).

These findings demonstrate that the ASAG strategy achieves efficient coupling of sequestration and recovery through a “dual-stabilization” mechanism: anti-swelling agents maintain pore accessibility, while CO₂ dissolution optimizes oil mobility. This addresses the core challenge of water-sensitive reservoirs, where conventional methods cannot balance sequestration and recovery.

Full-cycle CO2 saturation changes

As shown in Fig. 12, the carbon sequestration potential of different reservoir properties is compared, the evolution process of full-cycle CO₂ saturation is clarified, and the change rule of CO₂ sequestration efficiency with time and space is quantified. The following two conclusions are drawn, (1) the CO₂ content of the cores with three permeabilities at the same injection stage shows a decreasing trend from the injection end to the withdrawal end, which is due to the highest injection pressure at the injection end, which has a stronger ability to enter the pore throat and interact with the crude oil, and with the advancement of the driving leading edge to the withdrawal end, the injection pressure decreases, resulting in a weakening of the ability of the CO₂ to displace the fluid in the pore space. (2) Taking the third cycle of alternating injection as an example, the CO₂ sequestration efficiency (68.3%, 59.2%, and 42.5%) of 10.15, 42.71, and 102.75 × 10⁻³ µm² cores at 2/5 distance were compared, and it was concluded that there is an increasing trend in the CO₂ sequestration efficiency with increasing permeability. The reason is that with the increase of permeability, the pore throat size also increases, the reaction space between CO₂ and formation fluid relatively increases, and the replacement capacity improves, so the CO₂ sequestration efficiency shows an upward trend.

Conclusions

(1)Supercritical CO₂ diffusion experiments reveal a “surge-decelerate” trend in diffusion coefficients with increasing clay content, pressure, oil saturation, and permeability, directly evidencing the inhibitory effect of high clay concentrations on CO₂ transport.

(2)The improved model, integrating oil-water coexistence thermodynamics and clay-inhibited dissolution coefficients with PR-EOS phase behavior, demonstrates > 92% agreement with experimental data. This framework enhances prediction accuracy by 15% relative to traditional single-liquid phase models, addressing critical limitations in clay-dominated low-permeability systems.

(3)Combined microscopic visualization and macroscopic core flooding experiments confirm that the “anti-swelling system-CO₂ alternating injection” strategy improves sweep efficiency substantially, achieving 58.12% oil recovery and a 46.16% CO₂ sequestration efficiency. Contour plots visualize dynamic CO₂ saturation evolution, highlighting the technology’s dual benefit for enhanced oil recovery and subsurface CO₂ storage.

The technology works synergistically through a ‘dual flow stabilisation mechanism’ - an anti-swelling system to stabilise pore throat narrowing and CO₂ dissolution to reduce crude oil viscosity. The study quantified for the first time the synergistic effect of ‘sand-fixing-viscosity-reducing-sequestration’ in a strong water-sensitive reservoir, confirmed its technical feasibility as a CO₂ sequestration site, and provided a comprehensive solution for the development of the same type of low-carbon reservoir.

In terms of practical application, this technology has been implemented in field pilot tests for water-sensitive reservoirs. Compared with conventional CO₂ flooding processes, it has achieved a reduction in injection pressure and an extension of CO₂ breakthrough time. Future research will focus on three aspects: (1) optimizing adaptability to reservoirs with different permeability gradients; (2) improving well pattern deployment and injection parameter design through numerical simulation; (3) conducting long-term storage safety monitoring, to provide a field-verified technical solution framework for the large-scale development of similar low-carbon reservoirs.
