From: Failure analysis of hybrid fiber reinforced polymer composite tubes subjected to quasi-static compressive load: an experimental study

Fig. 11

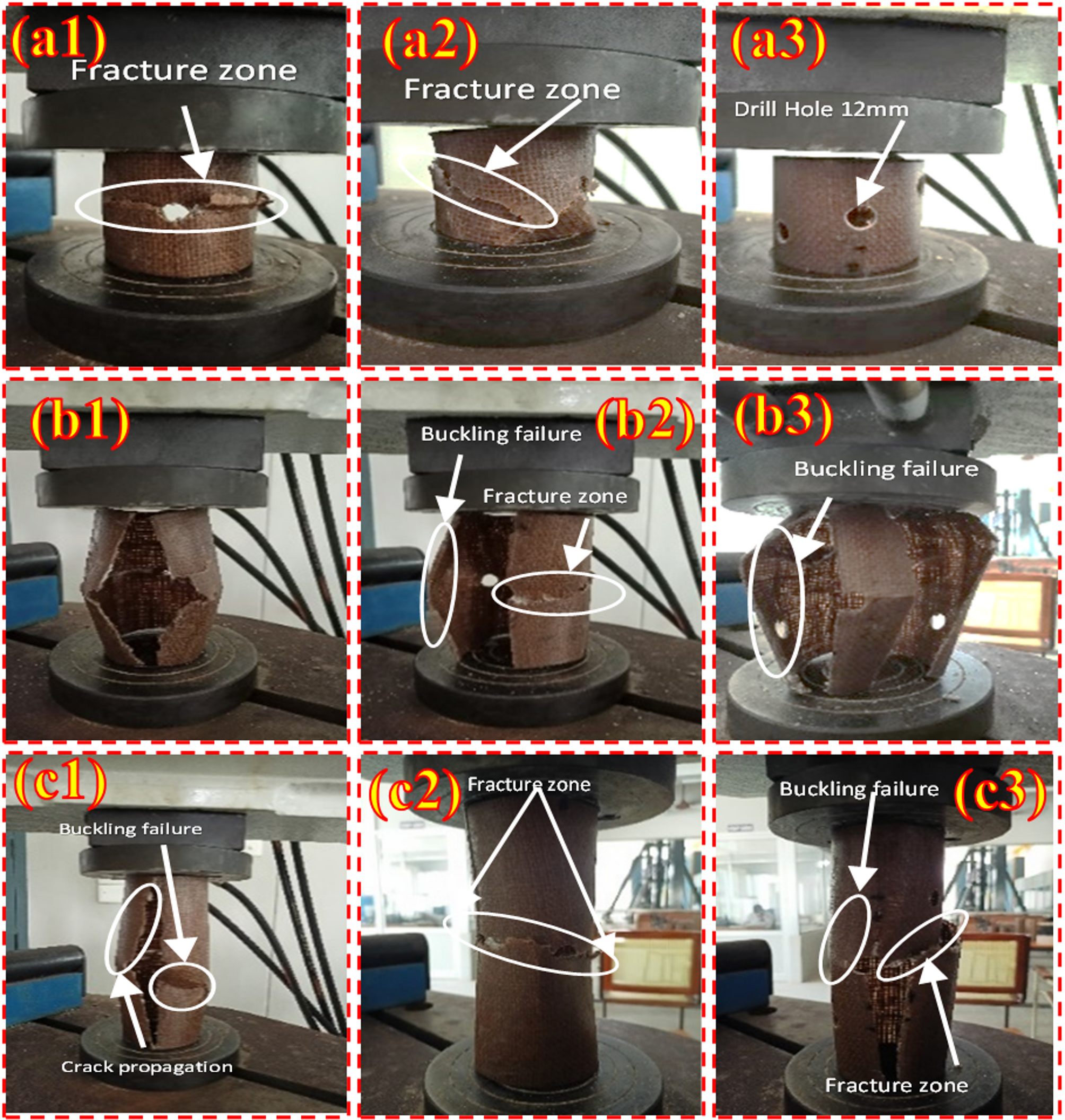

Crash behaviour of hybrid composite tubes with 12 mm drilled holes (a1) 70 mm length with 2 holes, (a2) 70 mm length with 4 holes, (a3) 70 mm length with 6 holes, (b1) 140 mm length with 2 holes, (b2) 140 mm length with 4 holes, (b3) 140 mm length with 6 holes, (c1) 210 mm length with 2 holes, (c2) 210 mm length with 4 holes, (c3) 210 mm length with 6 holes.
