Fig. 15
From: A modified instantaneous reactive power algorithm for shunt compensation

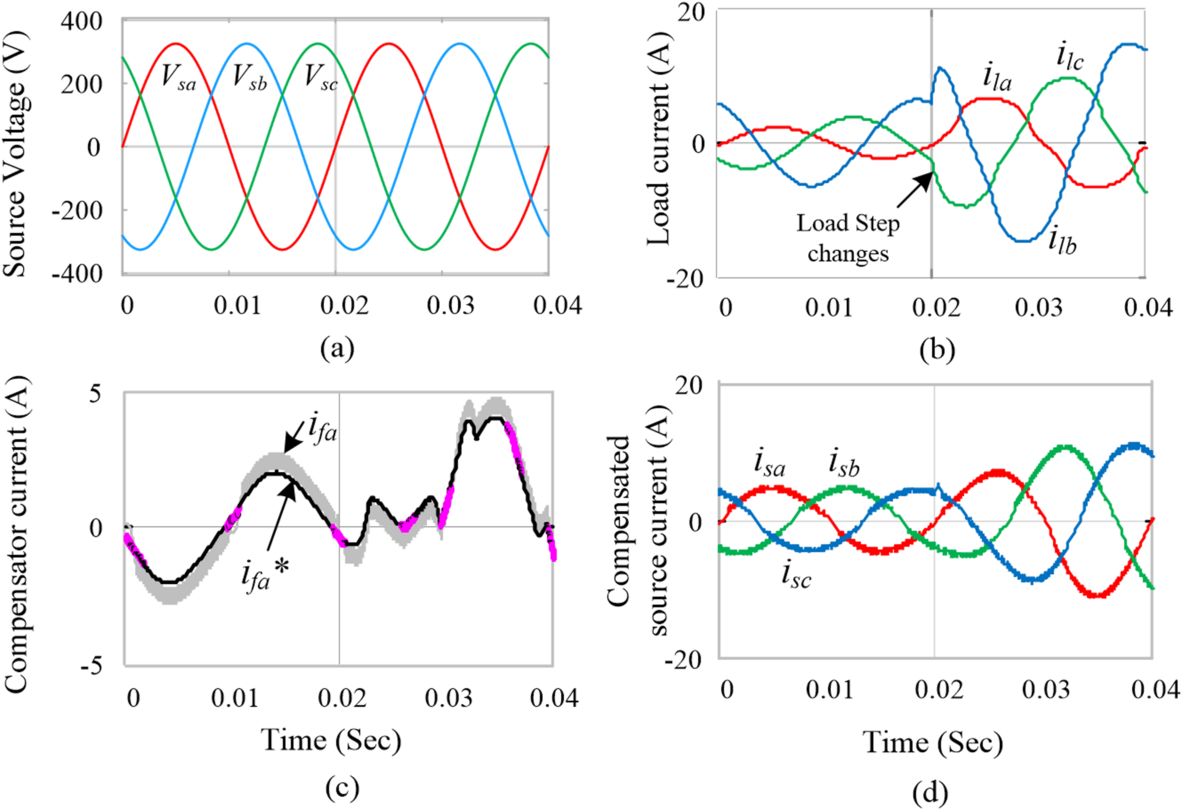

Simulation results under transient conditions (a) Source voltage (b) Load currents (c) Tracking performance phase (a) (d) Uncompensated Source currents using proposed algorithm.
