Fig. 2 | Scientific Reports

Fig. 2

From: Exploration of common pathogenic genes between cerebral amyloid angiopathy and insomnia based on bioinformatics and experimental validation

Fig. 2

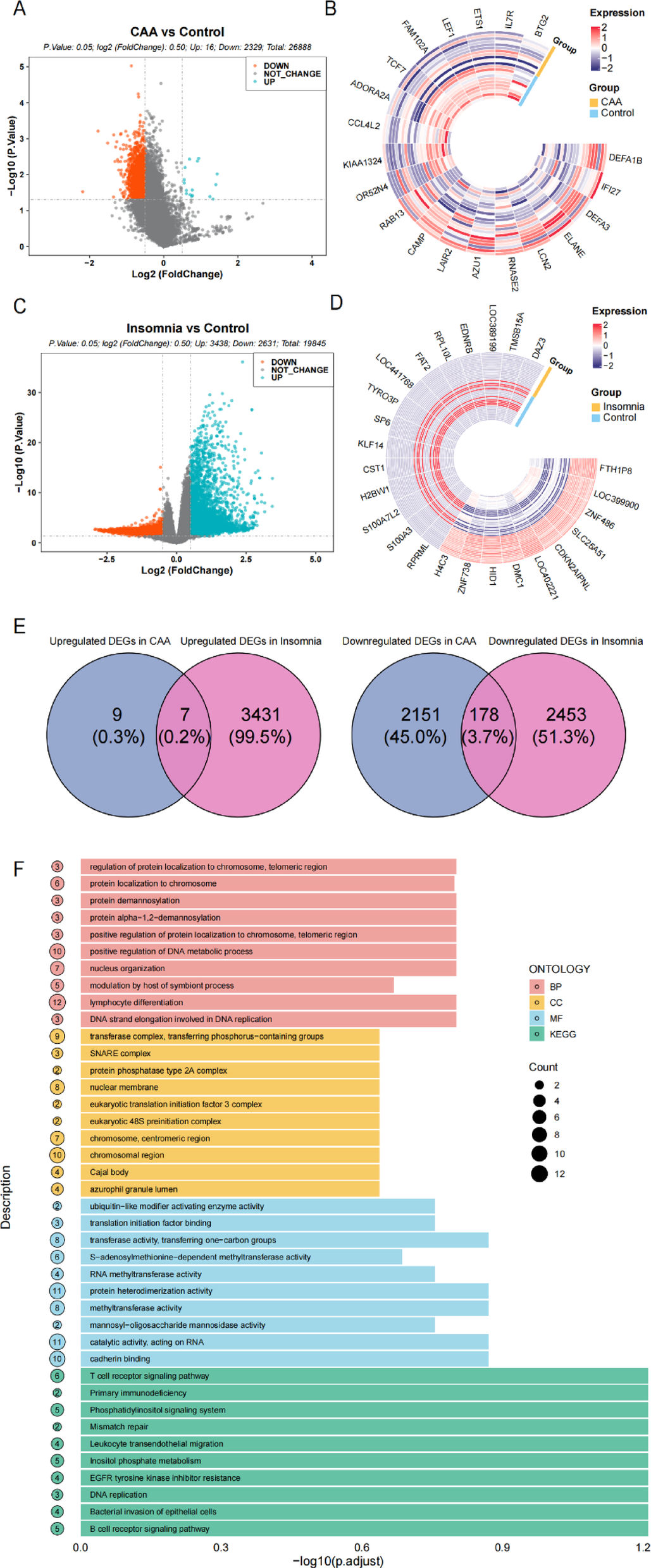

Identification and enrichment analysis of DEGs. (A) Volcano plot of differential expression analysis between the CAA and control groups. (B) Heatmap of differentially expressed gene clusters between the CAA and control groups. (C) Volcano plot of differential expression analysis between the insomnia and control groups. (D) Heatmap of differentially expressed gene clusters between the insomnia and control groups. (E) Venn diagram illustrating the intersection of upregulated and downregulated genes shared between the CAA and insomnia groups. (F) GO and KEGG enrichment analysis of DEGs.
