Fig. 3

From: Nanopore sequencing reveals the genomic diversity of the variants of concern of SARS-CoV-2 during 2021 disease outbreak in Pakistan

Fig. 3

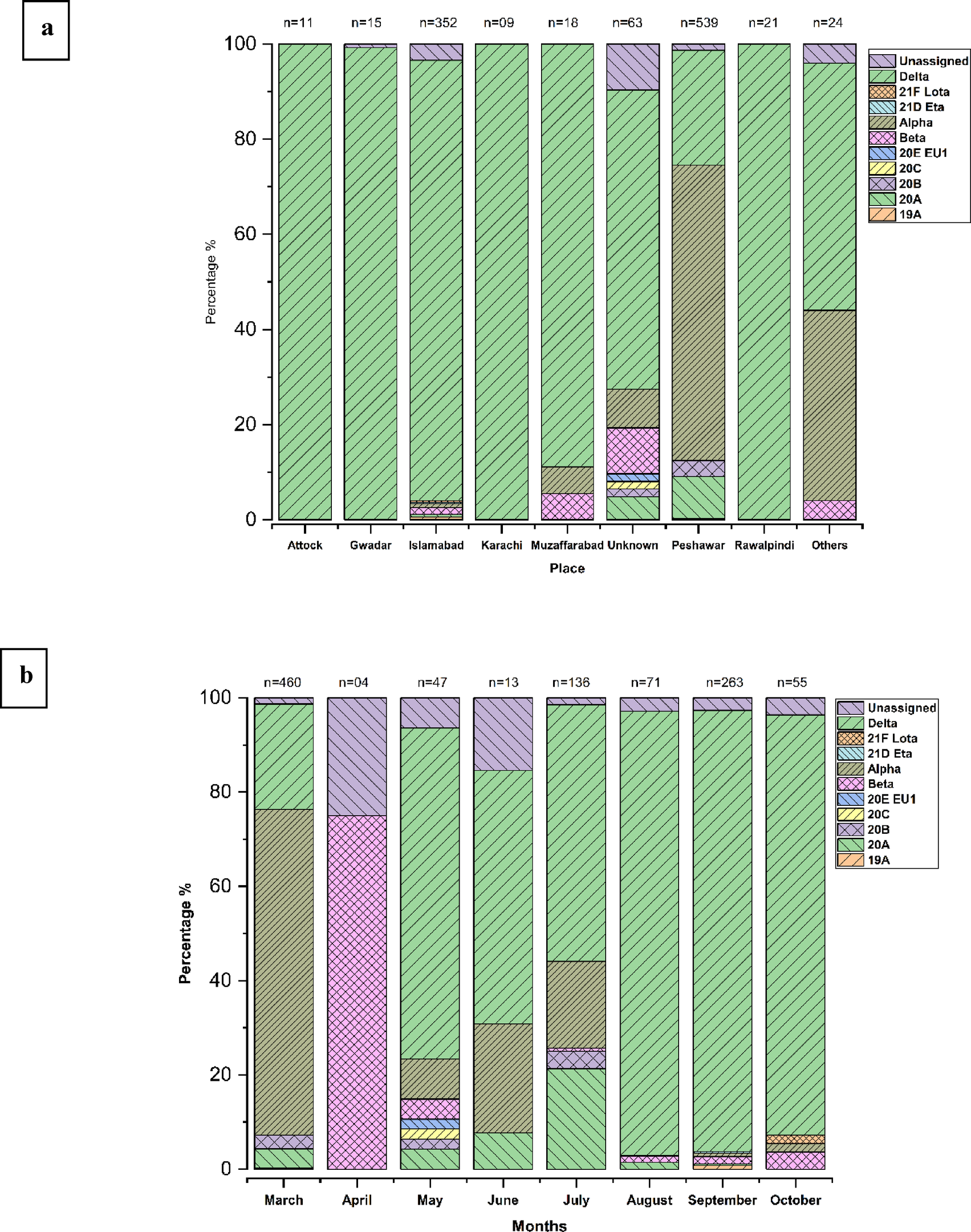

Spatiotemporal genomic diversity of SARS-CoV-2 during 2021 in Pakistan. (a) represents the percentage distribution of major SARS-CoV-2 variants including VOCs in different regions of Pakistan. (b) the temporal percentage prevalence of SARS-CoV-2 variants across different regions in Pakistan. Variants are denoted with distinctive colors as represented in plots. Unassigned are the sequences with low quality which resulted as “Unassigned” from Artic-Nextclade work-flow.
