Fig. 1
From: A full Ka band gap waveguide based slot array antenna with 45° slant polarization

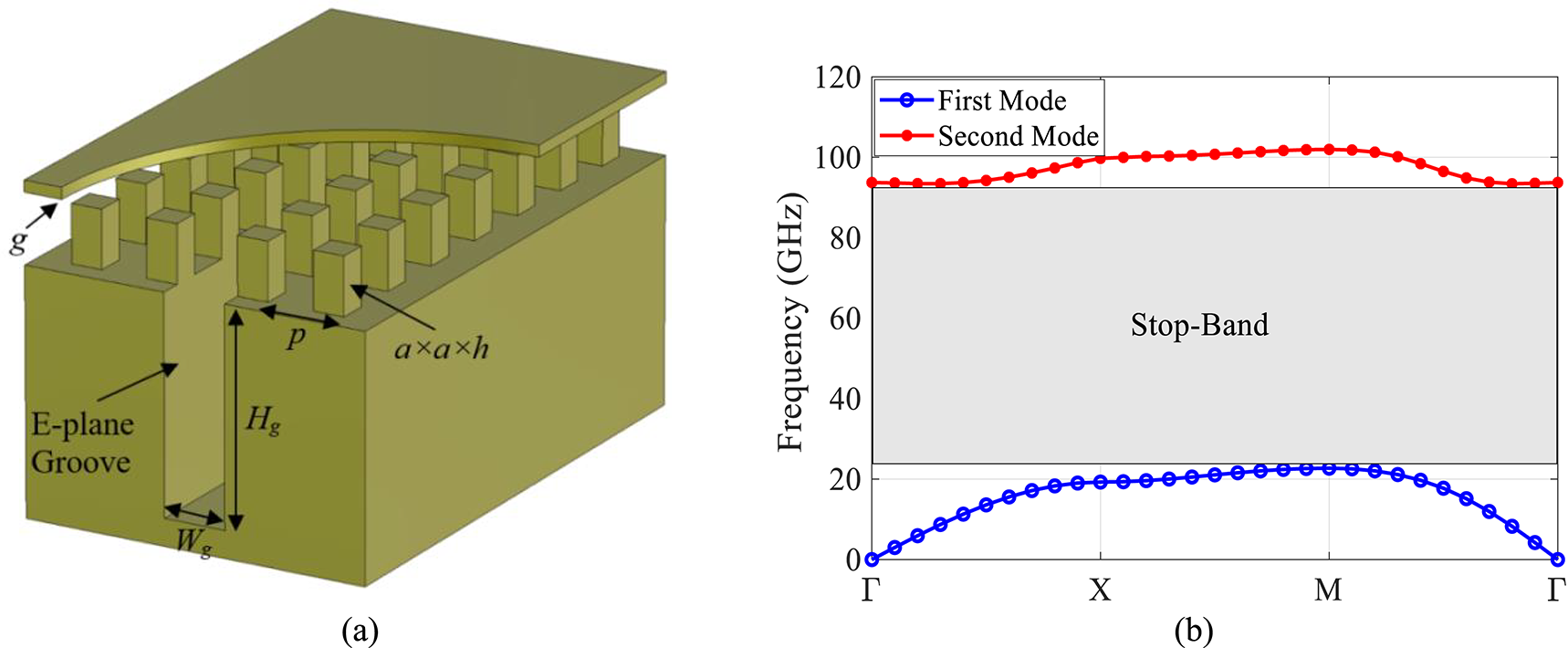

(a) Geometry of an E-plane (or horizontal polarization) groove gap waveguide. (b) Dispersion diagram of periodic pins structure.
