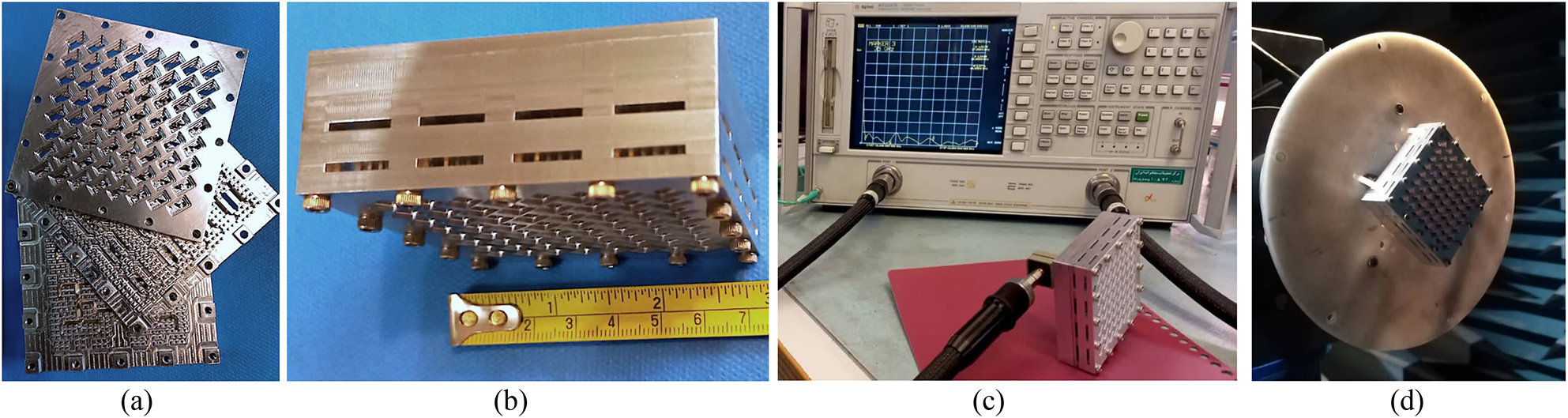

Fig. 17
From: A full Ka band gap waveguide based slot array antenna with 45° slant polarization
(a) and (b) Photographs of disassembled and assembled fabricated array antenna. (c) Antenna under test with a network analyzer. (d) Antenna under test in an anechoic chamber.
