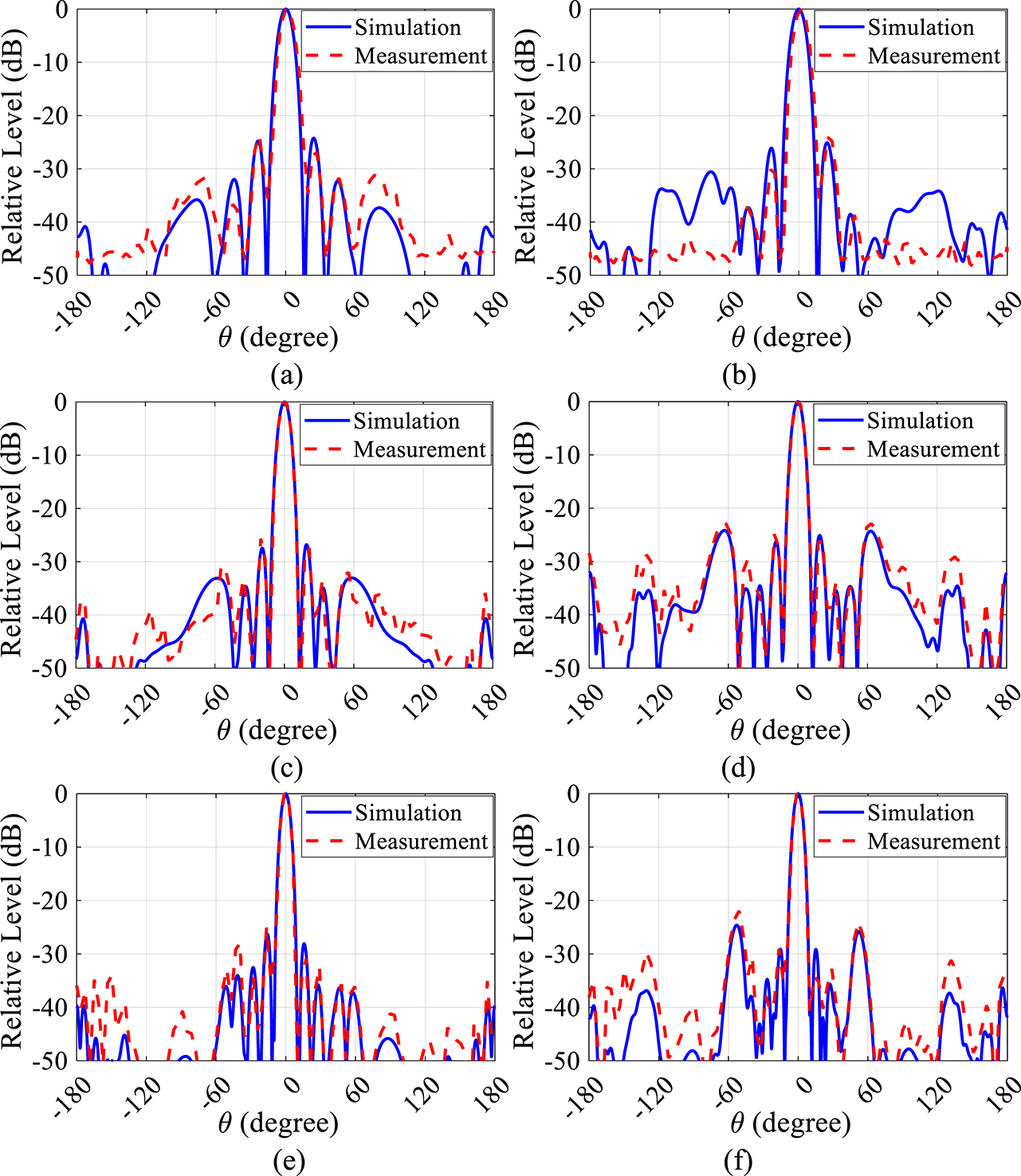

Fig. 19
From: A full Ka band gap waveguide based slot array antenna with 45° slant polarization
Normalized radiation patterns of 8×8-element array at different frequencies in E- and H-planes. (a) and (b) 27 GHz, (c) and (d) 34 GHz and (e) and (f) 40 GHz.
