Fig. 6
From: A full Ka band gap waveguide based slot array antenna with 45° slant polarization

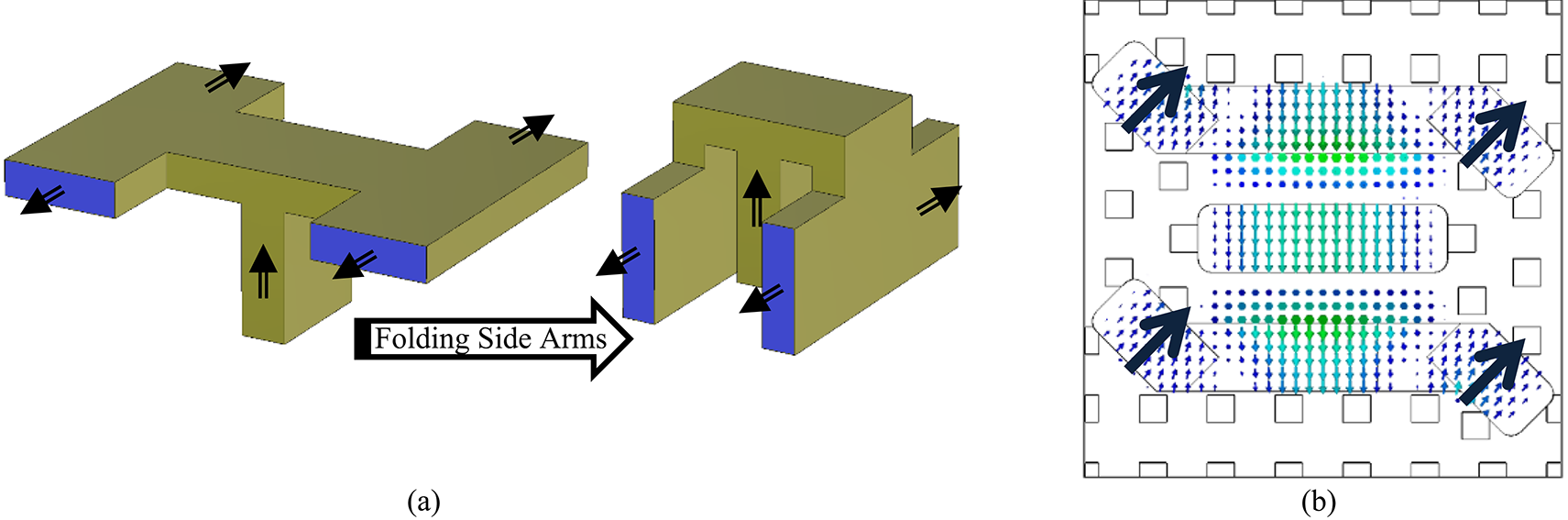

(a) Geometry of conventional and folded 4-way compact power divider consists of one E-plane and two H-plane T-junctions. (b) The electric field distribution of 4-way gap waveguide-based power divider at 34 GHz.
