Fig. 3

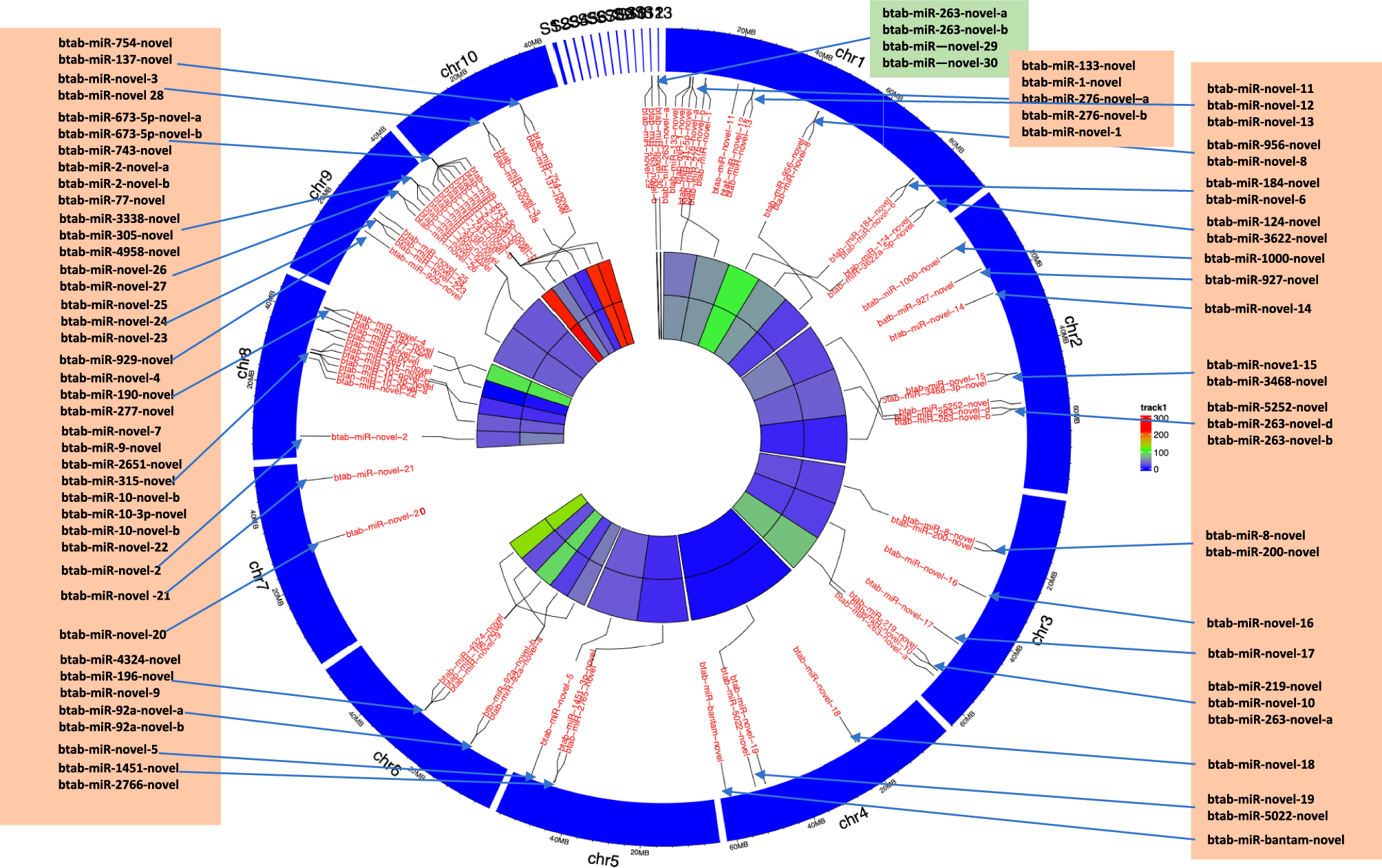

This figure represents the genetic mapping of B. tabaci novel miRNAs to visualize their genomic distribution and provide chromosomal enrichment information. The outer circle emphasizes the chromosomal number and the unaligned scaffolds, while the inner heatmap highlights the miRNA read number in the respective chromosome. The color gradients were used to comprehend the chromosomal and scaffold-mapped miRNAs.
