From: Genome-wide analysis of the RING-H2 E3 ubiquitin ligase SlATL family in tomato

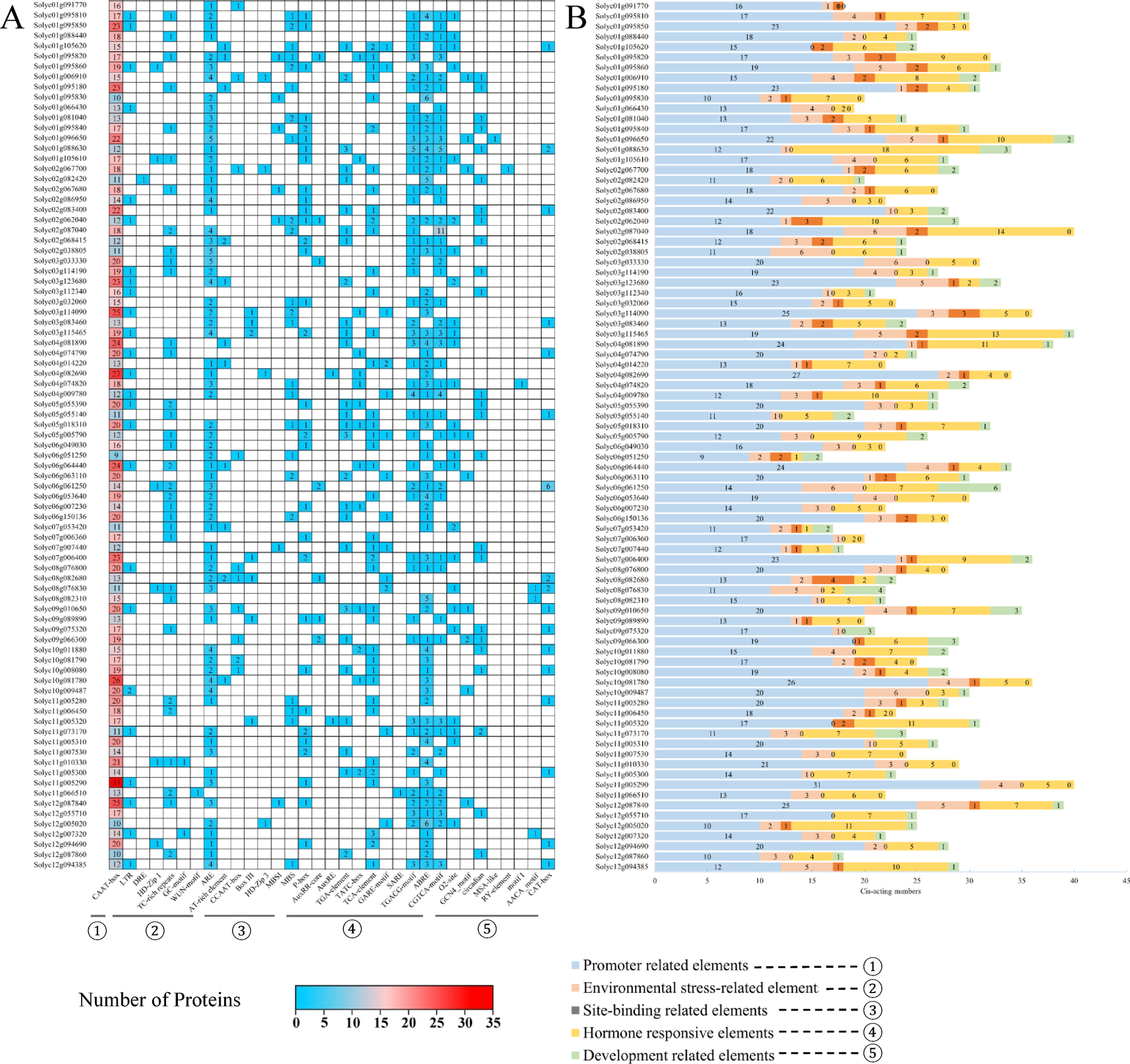

Cis-regulatory elements analysis of the SlATL family. (A) Classification and statistics of cis-acting elements. Thirty-three kinds of cis-acting elements were divided into five categories (①-⑤). The number in the grid represents the number of elements, and the color from blue to red represents the number of elements from fewer to more. (B) The different colored barplot represented the sum of the cis-acting elements in each category, and number represents the quantity of cis-regulatory elements.
