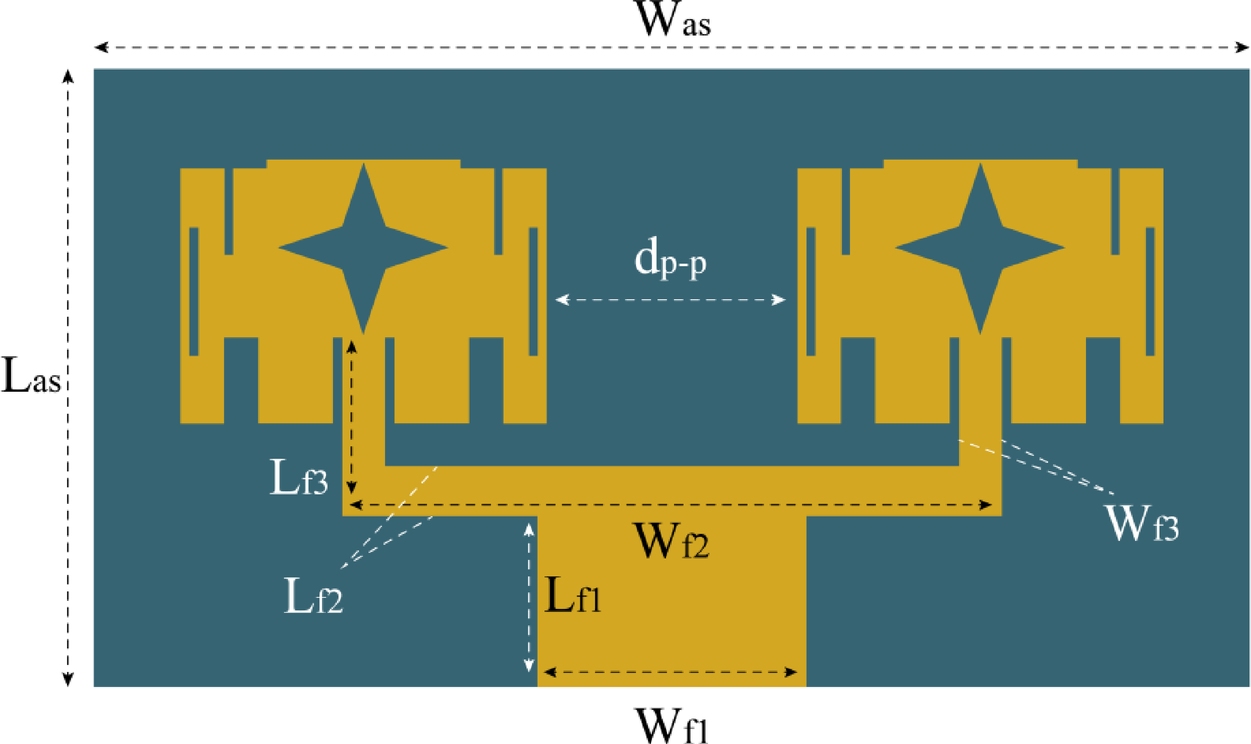

Fig. 5
Design of the array antenna. Here, Was = 13.36, Las = 7.13, dp − p = 2.9, Wf1 = 3.1, Lf1 = 2, Wf2 = 7.63, Lf2 = 0.57, Wf3 = 0.5, Lf3 = 1.5. All values are measured in mm(millimeters).
Fig. 5 | Scientific Reports
Design of the array antenna. Here, Was = 13.36, Las = 7.13, dp − p = 2.9, Wf1 = 3.1, Lf1 = 2, Wf2 = 7.63, Lf2 = 0.57, Wf3 = 0.5, Lf3 = 1.5. All values are measured in mm(millimeters).
