From: Study on the adsorption properties of organically modified diatomite for methylene blue

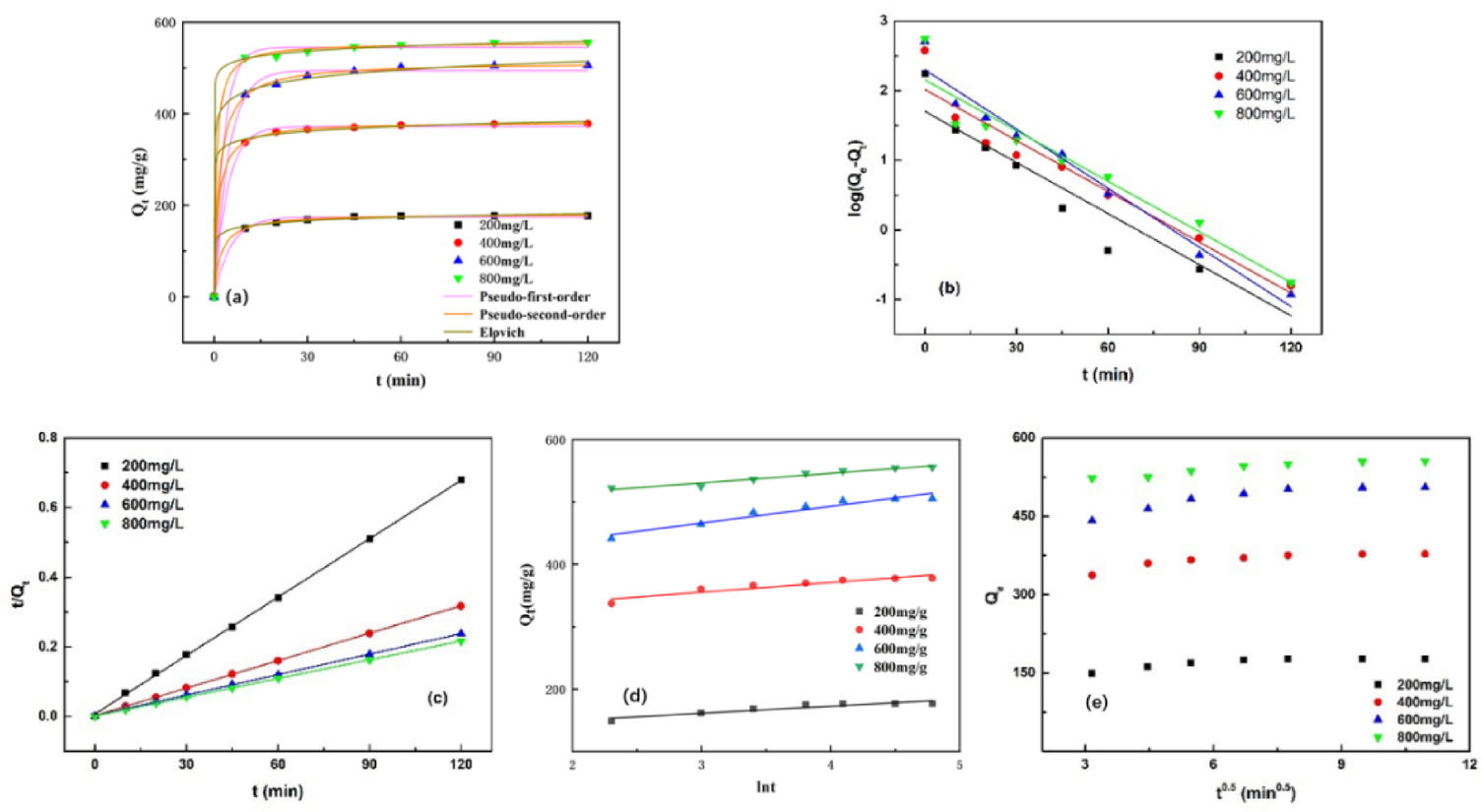

(a) the adsorption kinetics diagram of DM-CS@CA adsorption MB; (b) and (c) the Pseudo first order kinetic model diagram and Pseudo second order kinetic model diagram; (d) Elovich kinetic model(e) the intra-particle diffusion model diagram.
