Figure 6. | Scientific Reports

Figure 6.

From: Damage to white matter networks resulting from small vessel disease and the effects on cognitive function

Figure 6.

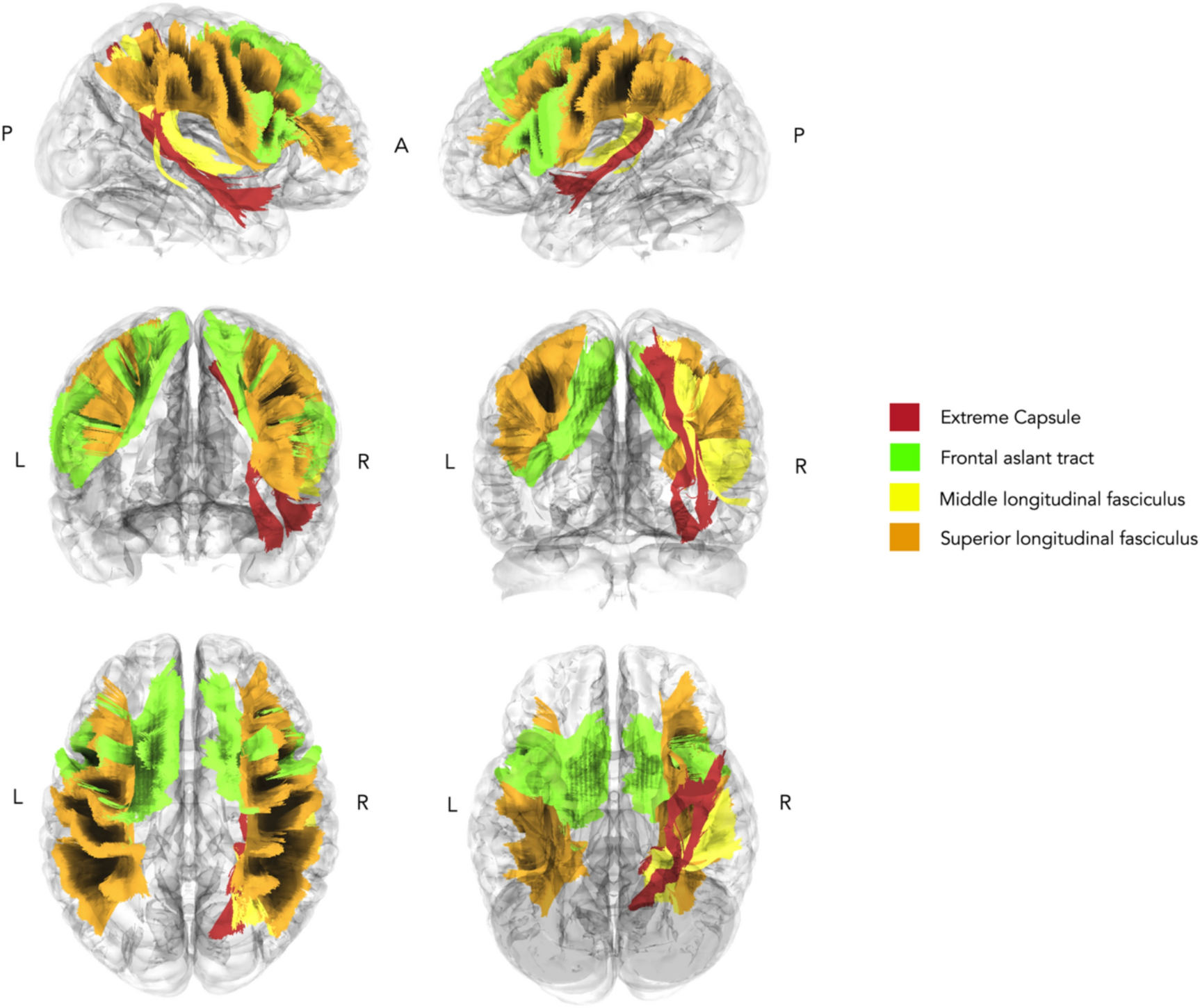

Visualization of the white matter tracts where increased WMH load was associated with worse MoCA memory index scores, including the right extreme capsule (red), frontal aslant tracts (green), right middle longitudinal fasciculus (yellow) and superior longitudinal fasciculi (orange). Figures were generated by authors using DSIstudio (version Chen Nov 20 2023) using the Human Connectome Project 1065 template in 1 mm resolution (HCP1065.1 mm.fib)37, which is a publicly available template downloaded from https://brain.labsolver.org/hcp_template.html37.
