Fig. 6
From: Lubrication state identification of vibration time-frequency characteristics based on CWT and CNN

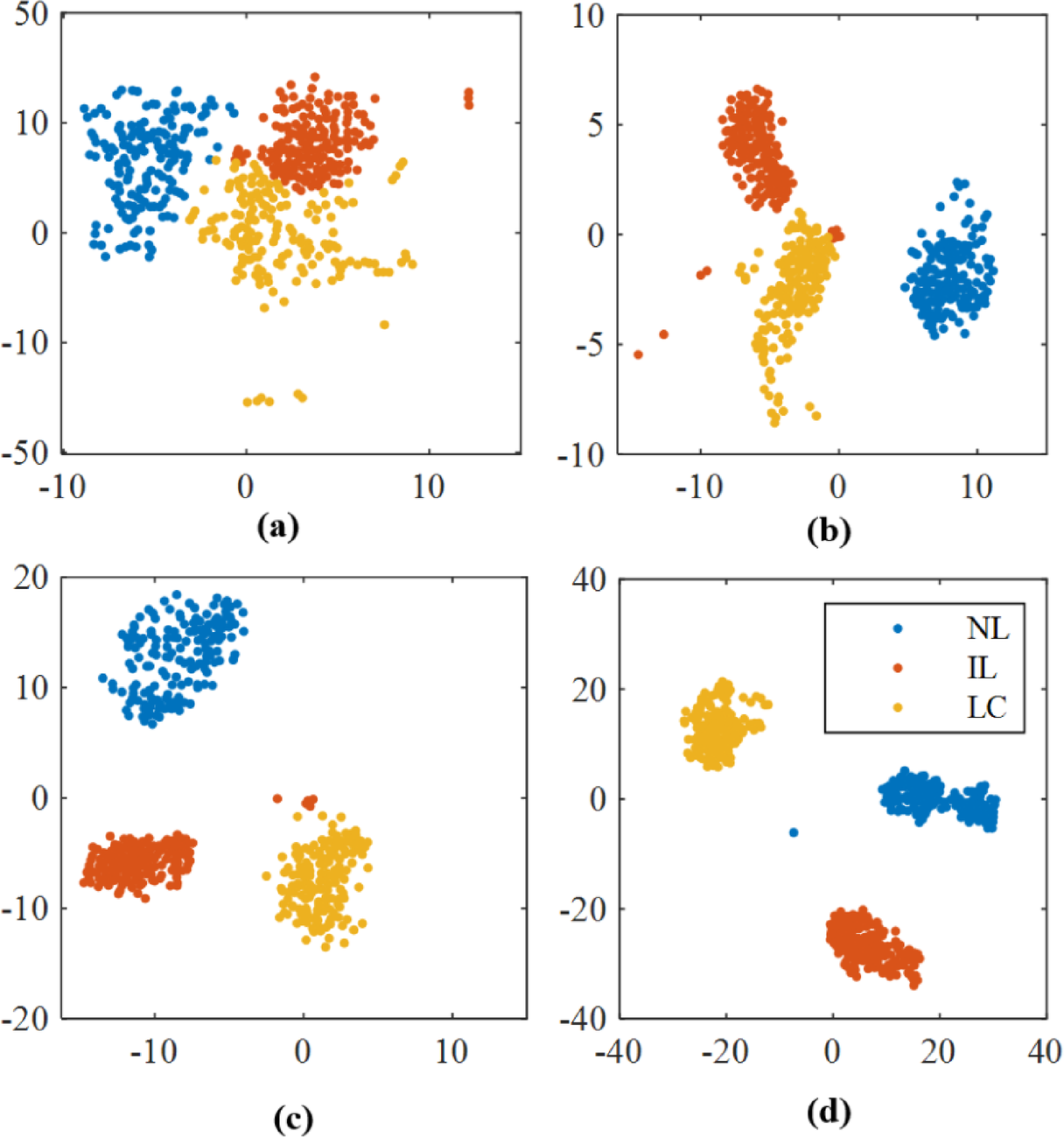

t-SNE visualization of features extracted by the CNN model. (a) First layer; (b) second layer; (c) third layer; (d) full connected layer. Note: The coordinate axes in the t-SNE plots are unitless and represent relative positions in the embedded feature space.
