Fig. 8
From: Chip-integrated spectroscopy capable of temperature retrieval

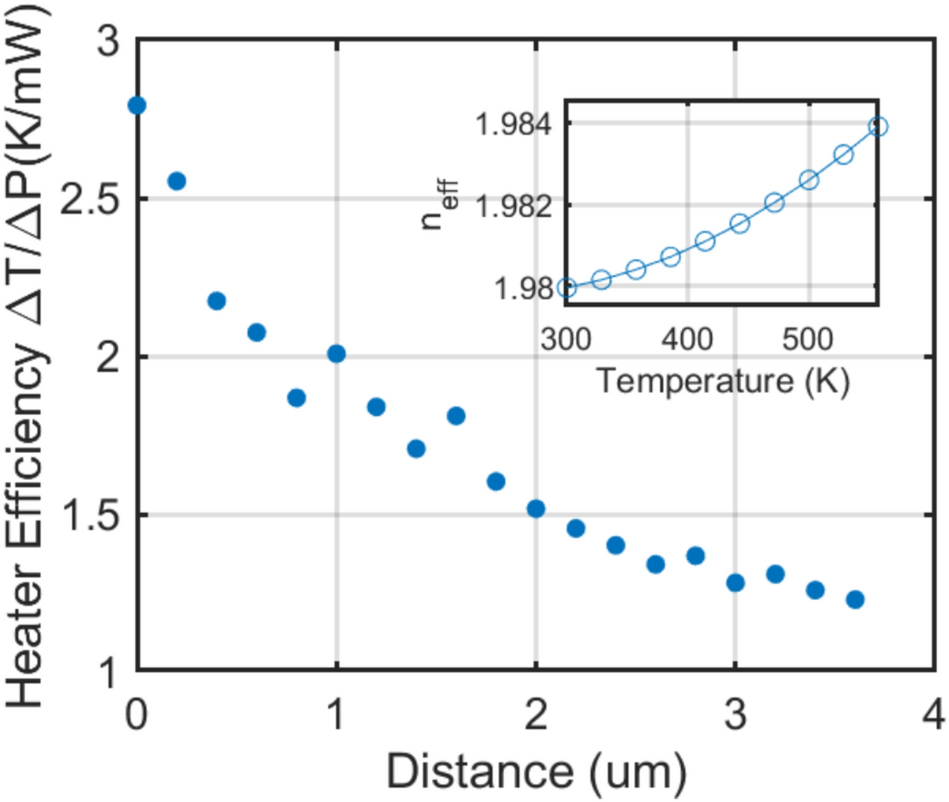

Heater efficiency vs distance for 770 MRR. The simulated thermal-optics coefficient is also shown as the inset. The temperature range of the heated ring waveguide (\(300-557\) K) is obtained by using the applied voltage range of 0–32 V and the extracted heater efficiency.
