Fig. 8
From: Dynamics analysis of a cam with flat-bottomed follower system

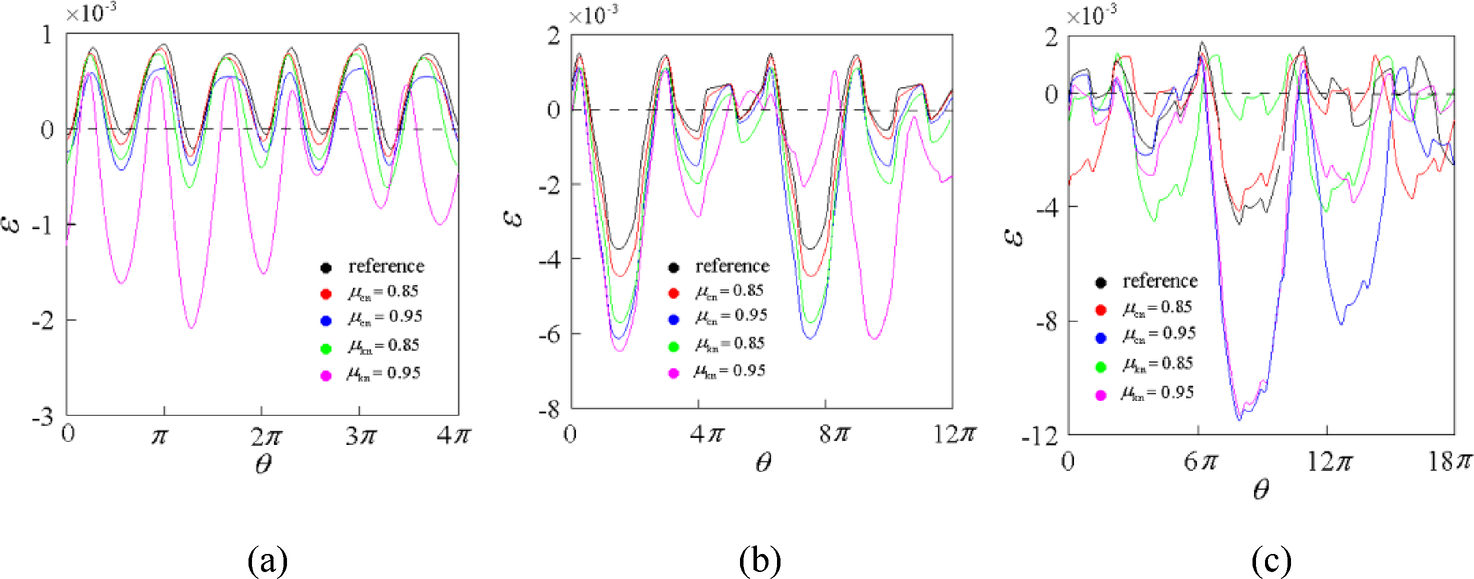

Displacement variations \(\varepsilon\) between the cam and the follower corresponding to different stiffness ratios \({\mu _{{\text{kn}}}}\) and damping ratios \({\mu _{{\text{cn}}}}\) at different speeds when \({f_0}{\text{=}}2.5\). (a) \(\omega =1.0\). (b) \(\omega =3.0\). (c) \(\omega =5.0\).
