Figure 7
From: Clinical trials of GPE-based muscle support algorithm for robotic hip exoskeleton: a pilot study

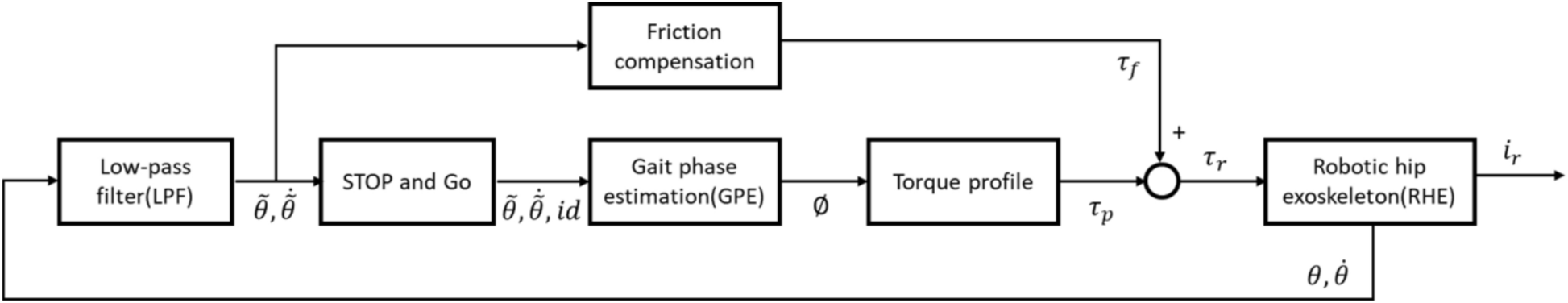

The control block diagram overview of robotic hip exoskeleton (RHE). It is divided into five stages; low-pass filter (LPF), STOP and GO algorithm, gait phase estimation (GPE) algorithm, torque profile, and friction compensation.
