From: UPLC-Q-TOF/MS, network pharmacology, molecular docking, and experimental validation to explore the mechanisms of toad clothing on rheumatoid arthritis

Fig. 6

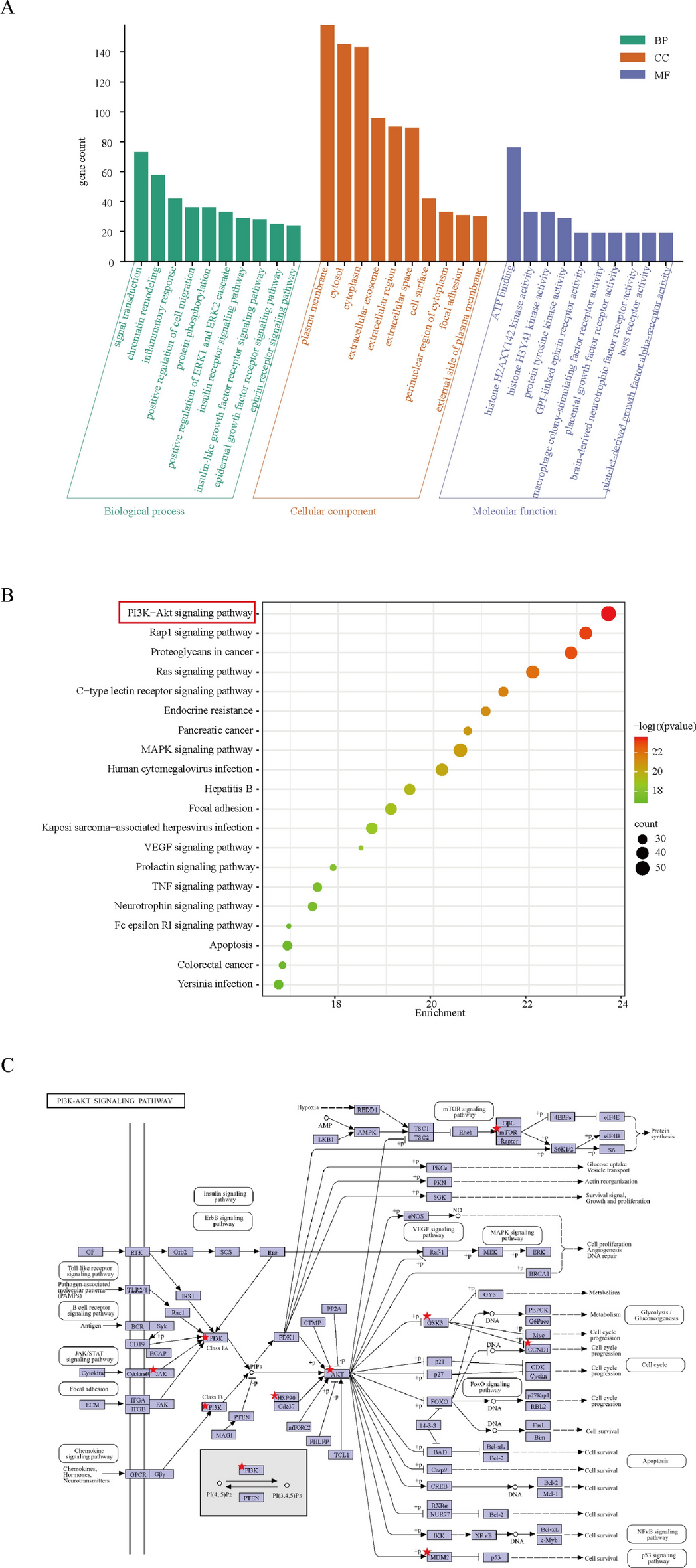

GO and KEGG pathway analysis. (A) The top 10 significance of enriched GO terms analysis of therapy target genes of toad clothing on Rheumatoid Arthritis (P < 0.05). (B) Top 20 significance of enriched KEGG pathways and analysis of PI3K-AKT signal path in KEGG database (P < 0.05). (C) The font marked in red represents the target in the PI3K-AKT signal pathway closely related to treating Rheumatoid Arthritis with toad clothing. GO, Gene Ontology; KEGG, Kyoto Encyclopedia of Genes and Genomes; PI3K-AKT, Phosphatidylinositol 3-Kinase/Protein Kinase B.
