Fig. 2
From: Analysis of static electricity risks in nonmetallic pipelines for hydrogen transportation

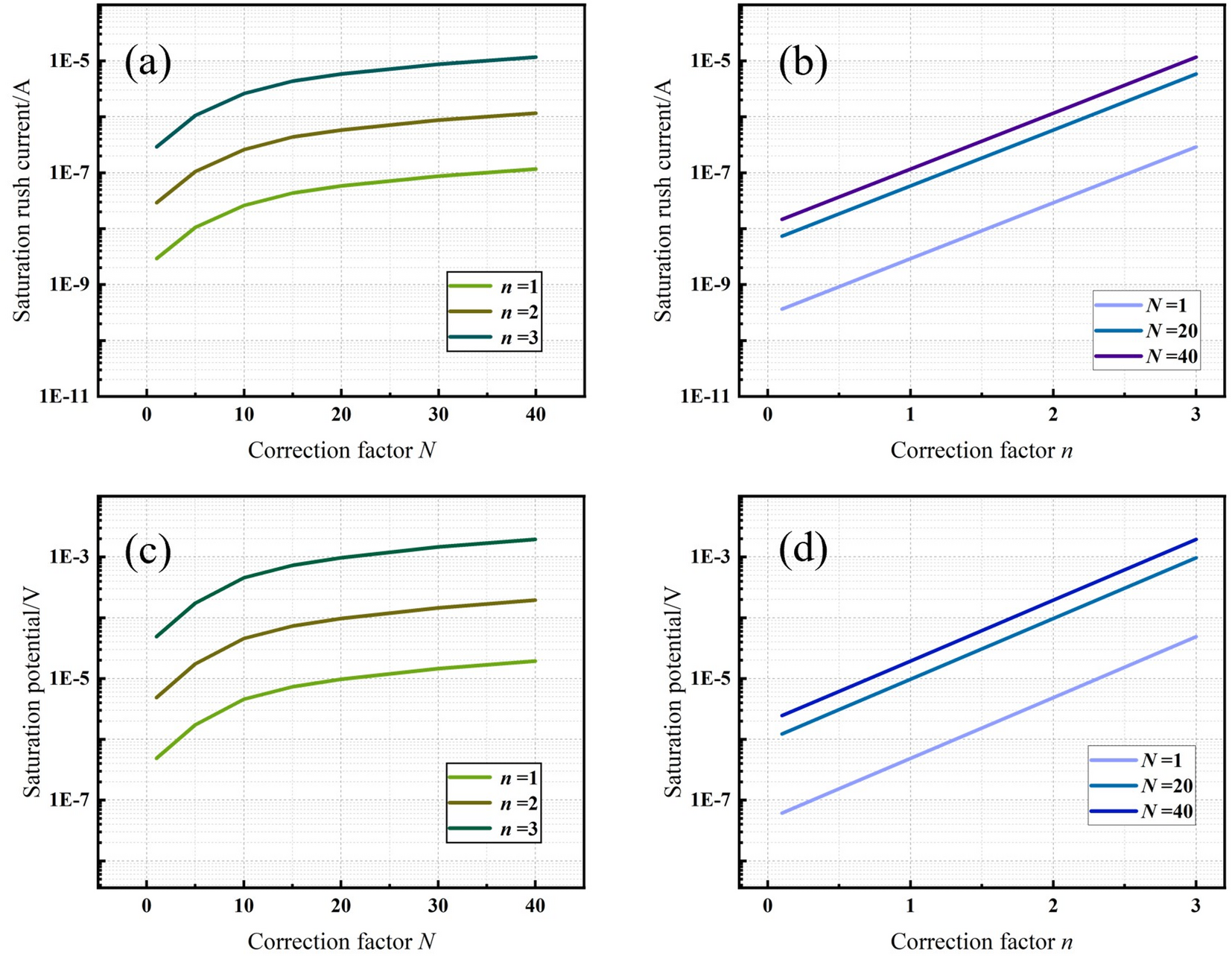

Effects of the correction factor on the saturation rush current and saturation potential. (a,c) Correction Factor N (n = 1, 2, 3); (b, d) Correction Factor n (N = 1, 20, 40).
