Fig. 5
From: Analysis of static electricity risks in nonmetallic pipelines for hydrogen transportation

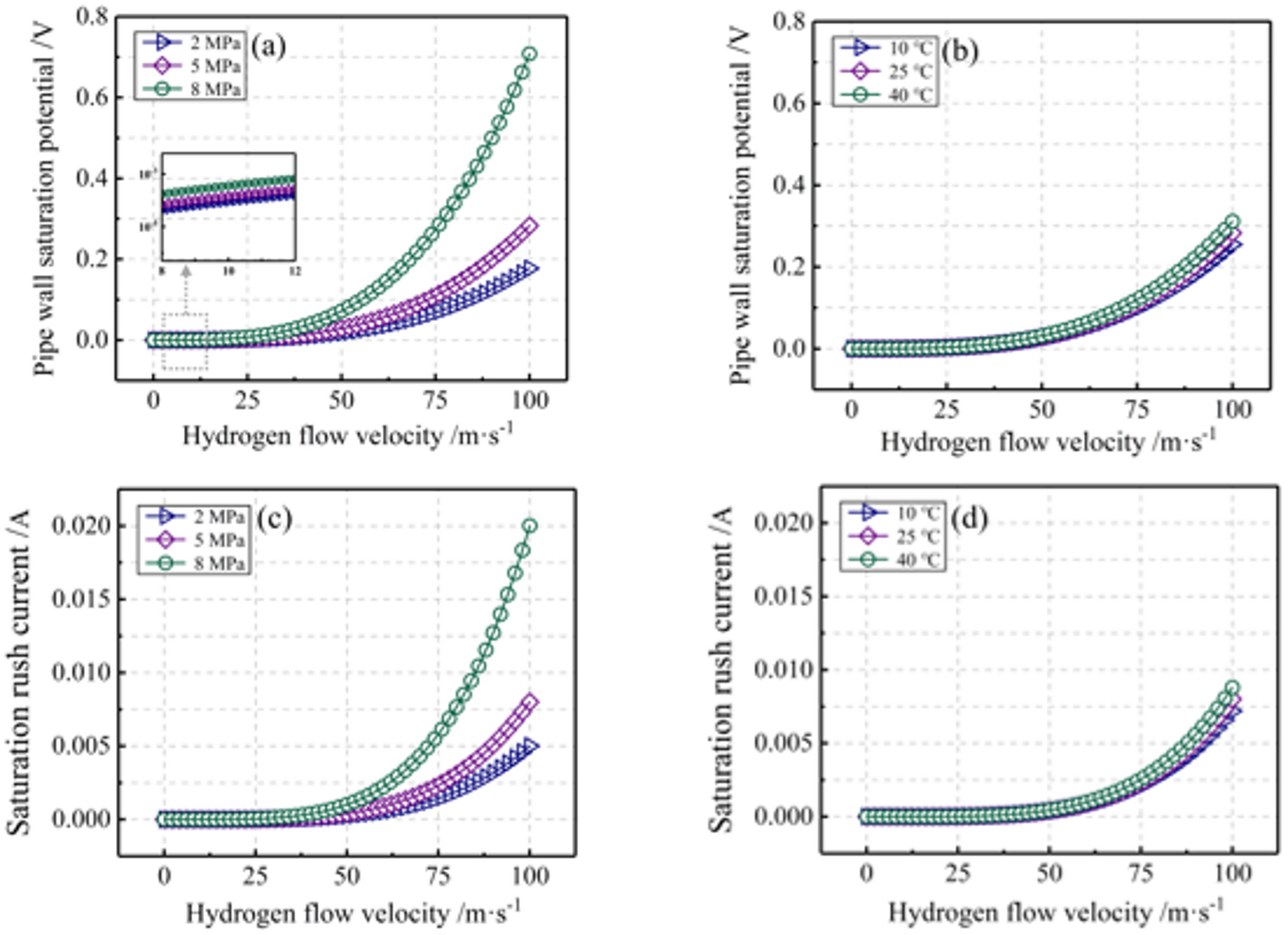

Variation of pipe wall saturation potential and saturation rush current with hydrogen velocity: (a) (c) P=2 MPa, 5 MPa, 8 MPa; (b) (d) T) T = 1010 ℃; 25℃; 40 ℃.
