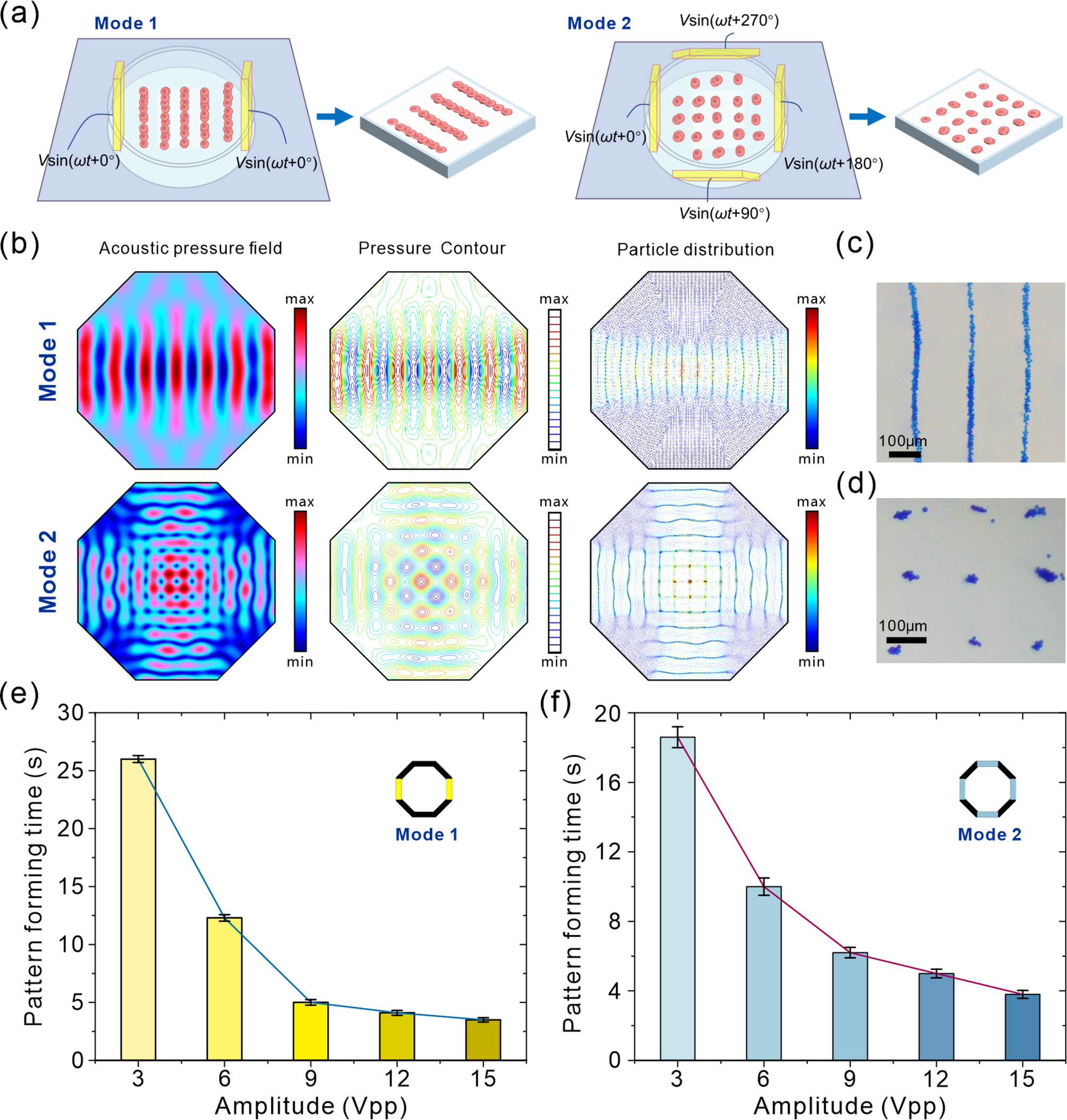

The working principle of two PZT configurations and simulation results. (a) the working principle of two modes. (b) The distribution of the acoustic pressure field, pressure countour and particle distribution of the two modes. (c) The particle pattern of mode (1) (d) The particle pattern of mode (2) (e, f) Relationship between the amplitude and the pattern formating time of mode 1 and mode 2.
