Fig. 14
From: Fault location method for hybrid MTDC system based on LCC signal injection strategy

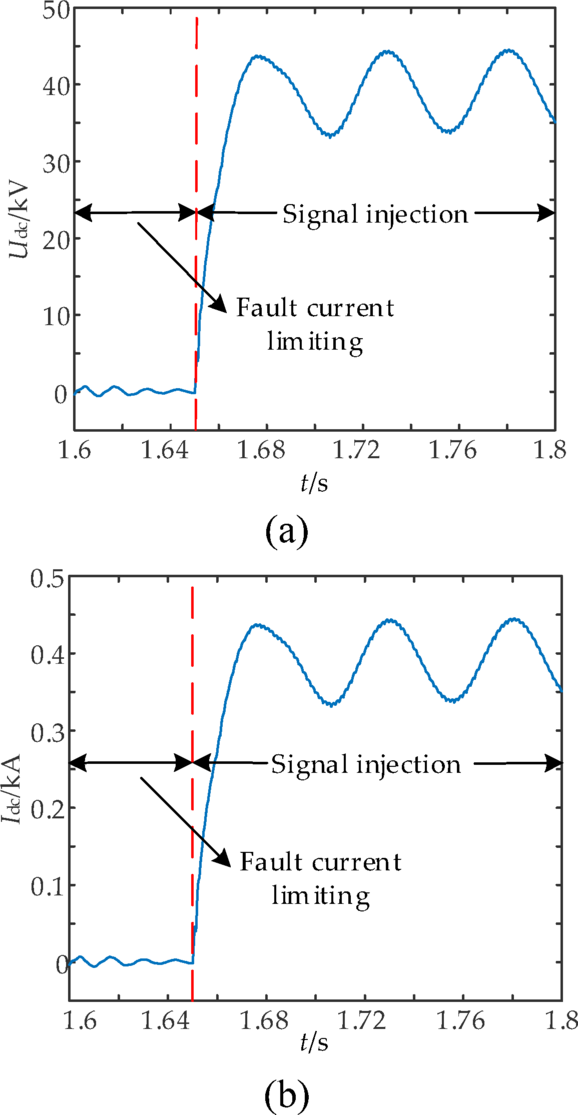

Response to parameter change of permanent PTG fault under 100 Ω fault resistance. (a) Voltage response of 0-mode; (b) Current response of 0-mode.
